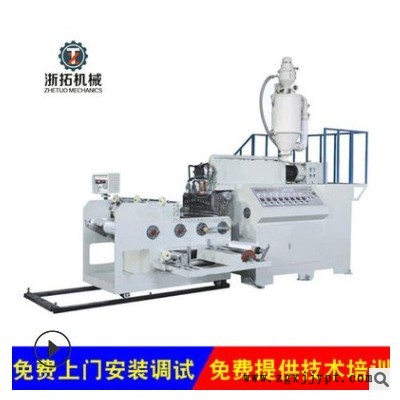

Single LayerStretch FilmMaking Machine
单层缠绕膜机
特点:
1.借鉴国外先进技术,加以吸收、改进、创新研制而成;
2.全变频控制,运行稳定、高高效、能耗低;
3.制品采用一次成型工艺;
4.特殊边料往返收取机构。
Feature:
1. It profits advanced technology from aboard and manufacture by absorption, improvement, innovation.
2. It is entire frequency conversion control, movement stable, highly effective and the low energy consumption.
3. The product adopts the craft of one time forming.
4. It can produce two-side sticks for stretching film.
主要技术参数(Main Technical Parameter)
型 号 | MODEL | SLW-600 | SLW-1000 | SLW-1500 |
适用原料 | SUITABLE RAW MATORIAL | HDPE LDPE LLDPE | ||
模头宽度 | DIE WIDTH | 750mm | 1250mm | 1750mm |
薄膜宽度 | FILM WIDTH | 600mm | 1000mm | 1500mm |
薄膜厚度 | FILM THICKNESS | 0.015-0.05mm | ||
收卷直径 | ROLLOUT DIAMETER | 300mm | 300mm | 300mm |
加热功率 | HEATING POWER | 15kw | 25kw | 40kw |
占地尺寸 | COVER DIMENSION(M) | 4.8*2.0*2.6 | 6.0*2.0*2.5 | 6.0*3.0*2.5 |
整机重量 | TOTAL WEIGHT | 3000kg | 4000kg | 6000kg |
挤出机EXTRUDER | ||||
螺杆直径 | SCREW DIAMETER(mm) | Φ55 | Φ60 | Φ75 |
螺杆长径比 | SCREW L/D | 34:1 | ||
螺杆材料 | SCREW MATERIAL | SACM-65/38CRMOLA | ||
料筒材料 | CYLINDER MATERIAL | SACM-65/38CRMOLA | ||
主机功率 | DRIVING MOTOR(KW) | 11 | 15 | 25 |
卷取装置WINDING UNIT | ||||
收卷方式 | TYPE | 表面摩擦式/中心收卷SURFACE FRICTION/CENTER REWINDER | ||
卷取功率 | WINDING MOTOR(KW) | 4 | 4 | 4 |
卷取速度 | WINDING SPEED(M/min) | 10-80 | 10-80 | 10-80 |
收卷 刀
Rewinder Knife
模头 螺杆
T-Die Screw
一、 减速机:硬齿面减速箱;国标
Gear box : Hardened tooth surface reducer.,
(1)齿轮材料:合金钢
(1)Gear box material: Alloy steel
(2)齿轮主要工艺:齿面高频淬火,硬齿面经磨齿机精磨;
(2)Gear box processing technique: Tooth surface high-frequency quenching, hardened tooth surface precision grinded by gear grinding machine
(3)齿轮箱润滑方式:强制油回圈润滑;
(3)Lubricating system: Forced oil loop lubrication
(4)齿轮箱冷却方式:强制水循环冷却油温;
(4)Cooling system: Forced water-cooling loop oil temperature
二、机筒螺杆Barrel and screw.
(1)螺杆直径:Ф55-75mm
(1)The screw diameter:Φ55-75mm
(2)螺杆长径比:34:1;
(2)Screw L/D: 34:1
(3)结构:屏蔽混炼;
(3)Structure:Shield mixing
(4)材质:38CrMoAl,螺杆表面镀硬铬;
(4)Material:38CrMoA1,Hard chrome-plated screw
(5)加工工艺:锻造、调质、氮化
(5)processing technique:Forging, quenching, nitriding
三、主机挤出机配置Host extruder configuration
(1)螺杆挤出,长度1350mm;
(1)screw extruder,Length1350mm
(2)电动机:上海,瑞域
(2)motor: ruiyu brand, Shanghai,
(3)电机调速:HLP变频调速,爱迪生
(3)motor speed control :Adisan HLP inverter.
(4)主机进料口:高斗;
(4)host Inlet:High post bucket
(5)上料方式:自动吸料;
(5)feeding:Auto feeder
(6)自动控温:7区;
(6)automatic temperature control:7 zones
(7)智能数显表:江苏汇邦
(7) Smart Data Display : huibang, jiangsu
(8)配电箱主要电器: 正泰
(8)Main electricalofdistribution box: Zhengtai
(9)加热方式:不锈钢加热圈;
(9)Heating:Stainless steel heating ring
(10)过滤方式:迷宫式结构;
(10)Filter mode:Labyrinth-type structure
(11)冷却方式:风冷;
(11)Cooling:forced air-cooling,
(12)塑化冷却:强制风冷;
(12)Plasticization Cooling:Forced air cooling
四、挤出模头Extrusion Dies
