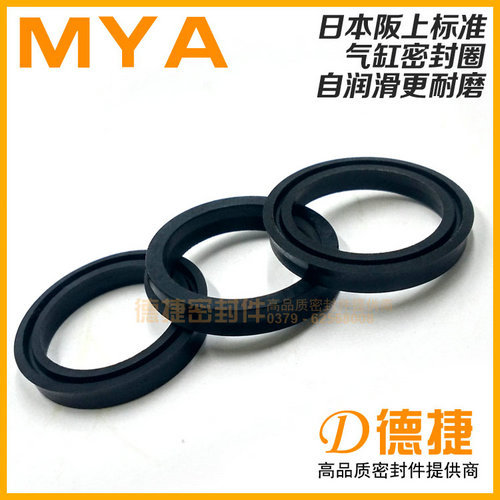

| 用途： | MYA型可用于气动活塞和活塞杆的密封。MYA型具有非常窄小的截面，主要使用于微型气缸、气阀的密封。 | |
| 材质： | NBR 丁腈橡胶 FKM 氟橡胶
| |
 | ||
| 温度： | NBR: -30℃ 至 +100℃ FKM: -20℃ 至 +200℃ | |
| 介质： | 空气。 | |
| 压力： | ≤1.6 MPa
| |
 | ||
| 标准： | 日本阪上 | |
| 标示： | MYA-14*18*2.8
| |

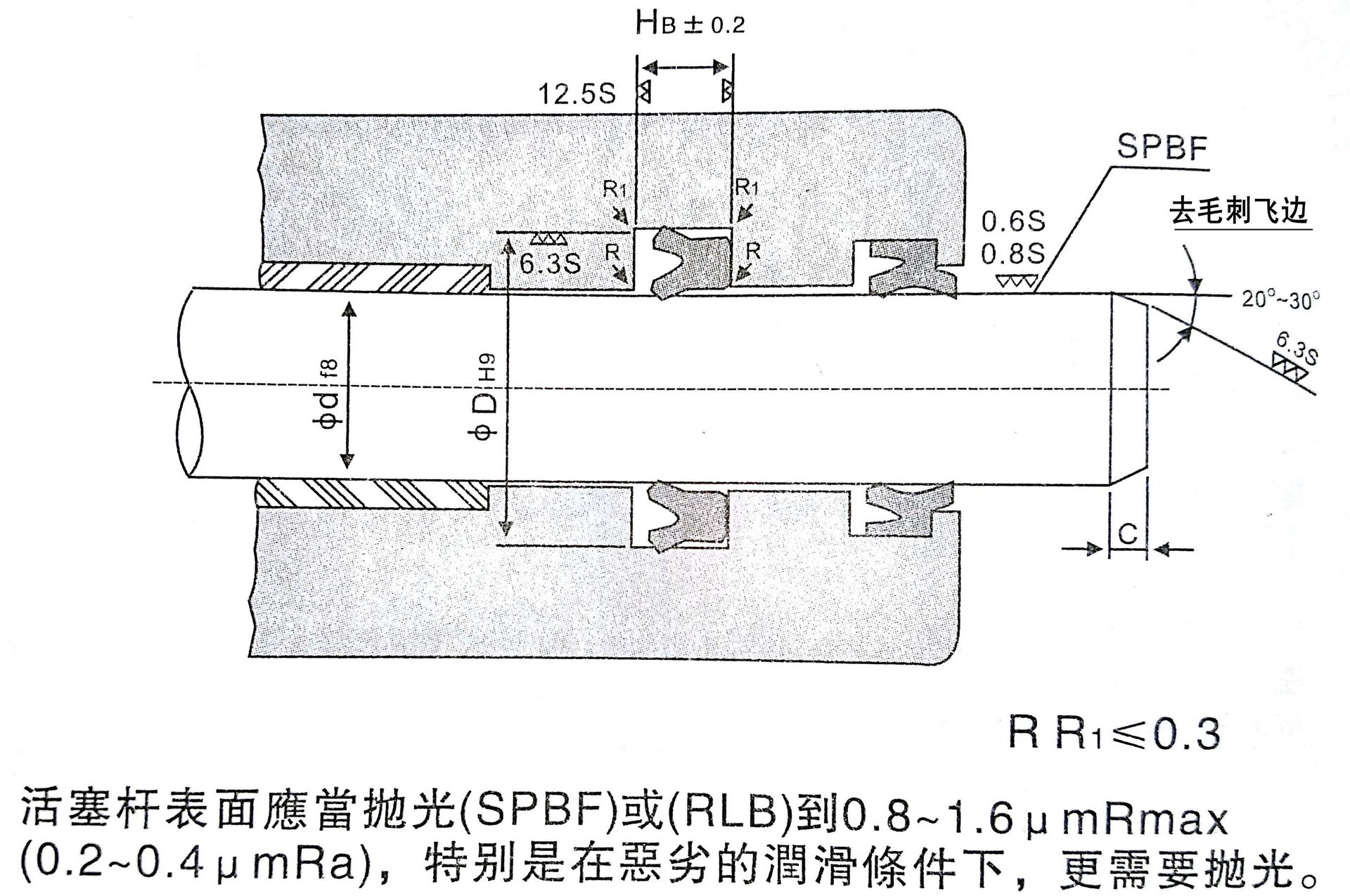

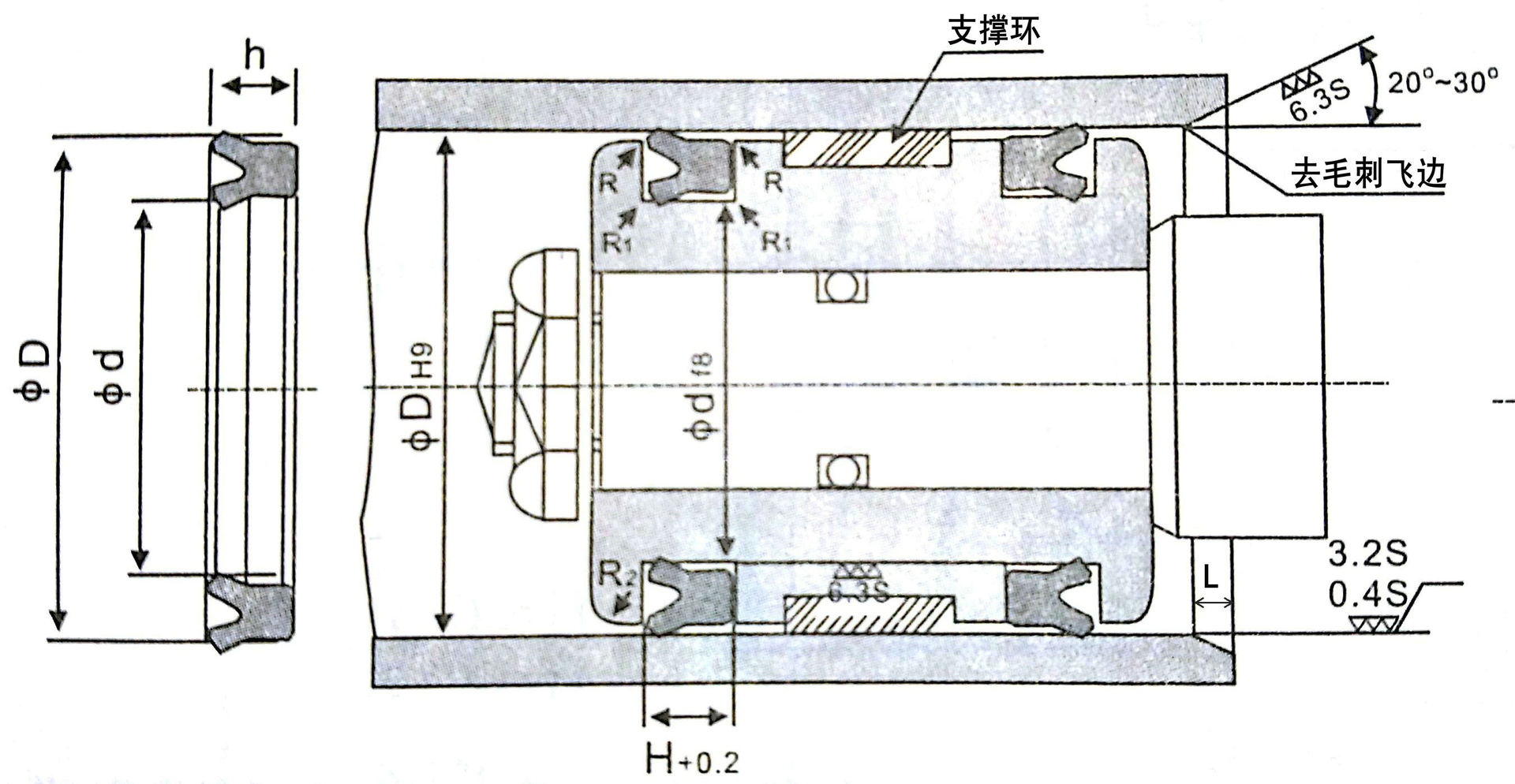

| 密封圈型号 | d | D | h | H | L | C |
| MYA-3 | 3 | 6 | 2.1 | 2.5 | 2 | 1.5 |
| MYA-4 | 4 | 7 | 2.1 | 2.5 | 2 | 1.5 |
| MYA-5 | 5 | 8 | 2.1 | 2.5 | 2 | 1.5 |
| MYA-6 | 6 | 9 | 2.1 | 2.5 | 2 | 1.5 |
| MYA-7 | 7 | 10 | 2.1 | 2.5 | 2 | 1.5 |
| MYA-8 | 8 | 11 | 2.1 | 2.5 | 2 | 1.5 |
| MYA-9 | 9 | 12 | 2.1 | 2.5 | 2 | 1.5 |
| MYA-10 | 10 | 13 | 2.1 | 2.5 | 2 | 1.5 |
| MYA-10A | 10 | 14 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-11 | 11 | 15 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-11.2 | 11.2 | 15.2 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-12 | 12 | 16 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-12.5 | 12.5 | 16.5 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-14 | 14 | 18 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-15 | 15 | 19 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-16 | 16 | 20 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-18 | 18 | 22 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-20 | 20 | 24 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-21 | 21 | 25 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-22 | 22 | 26 | 2.8 | 3.2 | 2.5 | 2 |
| MYA-24 | 24 | 30 | 4.2 | 4.7 | 3 | 3 |
| MYA-34 | 34 | 40 | 4.2 | 4.7 | 3 | 3 |
| MYA-39 | 39 | 45 | 4.2 | 4.7 | 3 | 3 |
| MYA-205 | 205 | 212 | 6.3 | 6.7 | ||
| MYA-235 | 235 | 242 | 5.6 | 6 |
备注：如您所需型号不在此表格内，请致电我们。
