TRELLEBORG特瑞堡密封系统成立于1952年，已收购德国BUSAK+SHAMBAN。
BUSAK+SHAMBAN(B+S) V型封V-160A产品参数

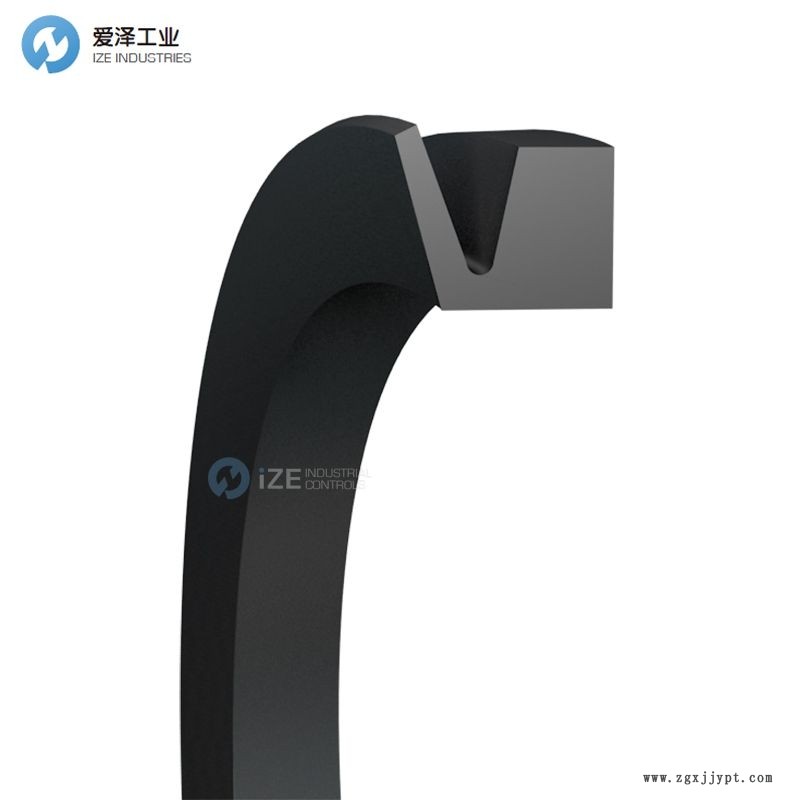

BUSAK+SHAMBAN(B+S) V型封产品介绍
Trim the adjustable clampingband to the right length by using a pair of shears. Rivet the adjustable lengthand the end attachment together by using a standard pop riveter and the threepop rivets.

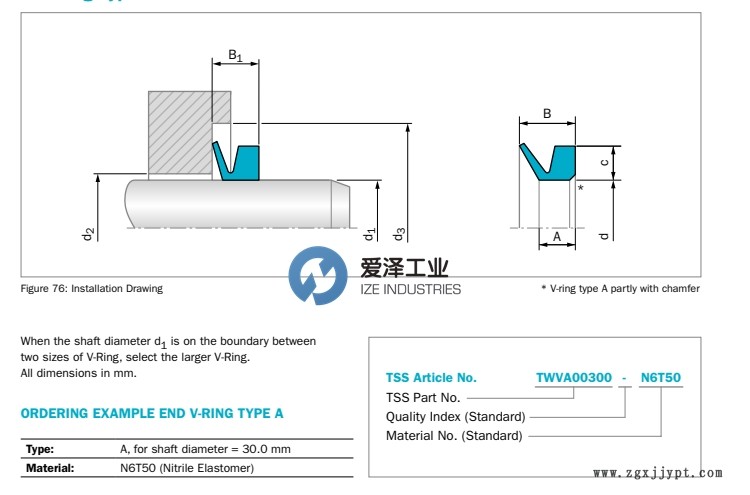

Locate the V-Ring in correctbbbbbbbb relative to the counterface, i.e. the predetermined B1 dimension.
Smear the V-Ring with a thinfilm of grease in the groove designed for the clamping band.
Using the attachments suppliedwith the band sections, join them together and bbbbbbbb the complete band inthe body groove with the screw heads facing the direction of shaft rotation.Turn the attachment screws a few turns one by one until the band is tight.
Check that the entire band fitssnugly in the body groove.
The clamping band A/AX is meantto be used with V-Rings type A and AX on shaft diameters from 200mm and larger.The clamping band keeps the V-ring in bbbbbbbb both axially and radially andcan be re-used several times. The clamping band is supplied in 5m lengths.Screw joints to connect the clamping band as well as the buckle are ordered onseparate article number. The band is made of stainless steel AISI 301, thescrew joint is made of AISI 304 with galvanized screw.
使用一把剪刀将可调节夹带修剪到合适的长度。使用标准流行铆钉和三个流行铆钉将可调节长度和末端附件铆接在一起。
将 V 形环定位在相对于配合面的正确位置，即预定的 B1 尺寸。
在为夹紧带设计的凹槽中，在 V 形环上涂抹一层薄薄的油脂。
使用带子部分随附的附件将它们连接在一起，并将整个带子放置在主体凹槽中，螺钉头朝向轴的旋转方向。将连接螺钉一一转动几圈，直到带子拧紧。
检查整个带子是否紧贴在主体凹槽中。
夹紧带 A/AX 旨在与 A 型和AX型V型圈一起用于200毫米及更大的轴直径。夹紧带将 V 形环保持在轴向和径向位置，并可多次重复使用。夹紧带的长度为5m。用于连接卡箍和带扣的螺纹接头在单独的订货号中订购。表带由不锈钢AISI 301制成，螺纹接头由 AISI 304 制成，带有镀锌螺钉。
BUSAK+SHAMBAN(B+S) V型封其他常见型号：
BUSAK+SHAMBAN(B+S) V-160A
BUSAK+SHAMBAN(B+S) TWVA02000
BUSAK+SHAMBAN(B+S) TWVA02200
BUSAK+SHAMBAN(B+S) TWVA02500
BUSAK+SHAMBAN(B+S) TWVA02750
BUSAK+SHAMBAN(B+S) TWVA03000
BUSAK+SHAMBAN(B+S) TWVA03250
BUSAK+SHAMBAN(B+S) TWVA03500
BUSAK+SHAMBAN(B+S) TWVA03750
BUSAK+SHAMBAN(B+S) TWVA04000
BUSAK+SHAMBAN(B+S) TWVA04500
BUSAK+SHAMBAN(B+S) TWVA01600
BUSAK+SHAMBAN(B+S) Seal NEW + ORIGINAL+ ONE YEAR WARRANTY
