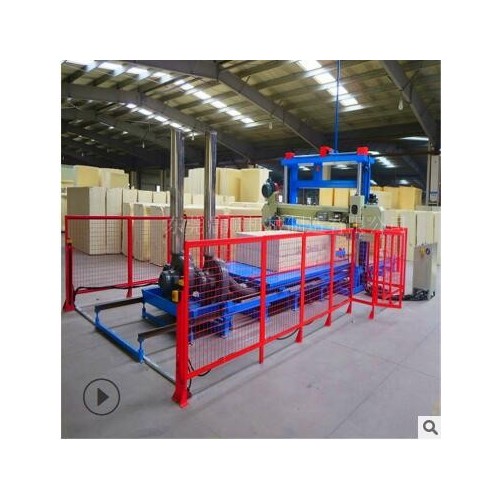

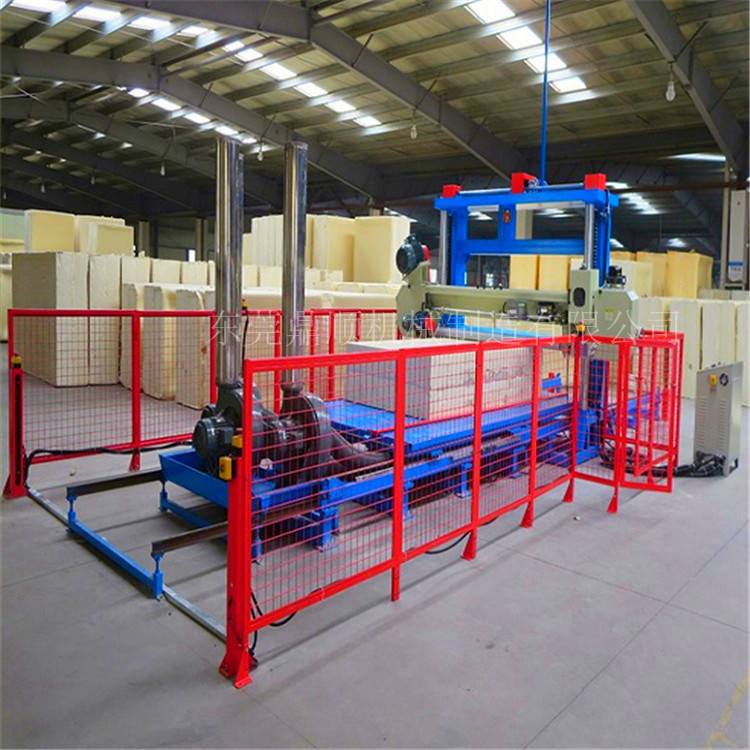

DSJX-1650/2150海绵平切机
Horizontal Foam CuttingMachine(WithVacuum)
海绵平切机主要用于块状海绵的水平往返切片工作。采用自动化数字控制，通过控制箱设定数值，工作台采用滚筒式网带吸风装置，上料简单，为了防止切割的泡绵滑动，可加压辊。操作简单，切割方便。
Sponge net with suction leveling machine is mainly used for the horizontal slicing of block sponge. Adopt automatic digital control, set the value through the control box, the working table adopts the drum type net with air suction device, the feeding is simple, in order to prevent the foam slip of cutting, the pressure roller can be used. Simple operation and accurate cutting.
主要技术参数SPECIFICATION:
2150型 | 2200型 | ||
Cutting Foam Size: 有效切割泡绵尺寸: | W2000mm*L3000mm | Cutting Foam Size: 有效切割泡绵尺寸: | W2200mm*L3000mm |
Cutting Foam Height: 有效切割泡绵高度: | H1200mm | Cutting Foam Height: 有效切割泡绵高度: | H1200mm |
Cutting Thickness: 切割厚度: | 2mm Up 2mm以上 | Cutting Thickness: 切割厚度: | 2mm Up 2mm以上 |
Cutting Speed: 切割速度: | 0～30m/min(Adjustable) 0～30m/分钟(速度可调) | Cutting Speed: 切割速度: | 0～30m/min(Adjustable) 0～30m/分钟(速度可调) |
Blade Length: 刀带尺寸: | L10160*W30*T0.45mm | Blade Length: 刀带尺寸: | L10360*W30*T0.45mm |
Cutting Type: 切割方式: | Automatic+Press Roller 全自动控制+压辊 | Cutting Type: 切割方式: | Automatic+Press Roller 全自动控制+压辊 |
Vacuum System: 强力吸风装置: | Available 已加装 | Vacuum System: 强力吸风装置: | Available 已加装 |
Machine N.W: 机器净重: | 2500kg | Machine N.W: 机器净重: | 2800kg |
Total Motor Power: 总功率: | 13kw | Total Motor Power: 总功率: | 13kw |
Floor Space: 占地尺寸: | L7000*W4500*H2400mm | Floor Space: 占地尺寸: | L7000*W4700*H2400mm
|
