| 品牌 : | 伯朗特 |

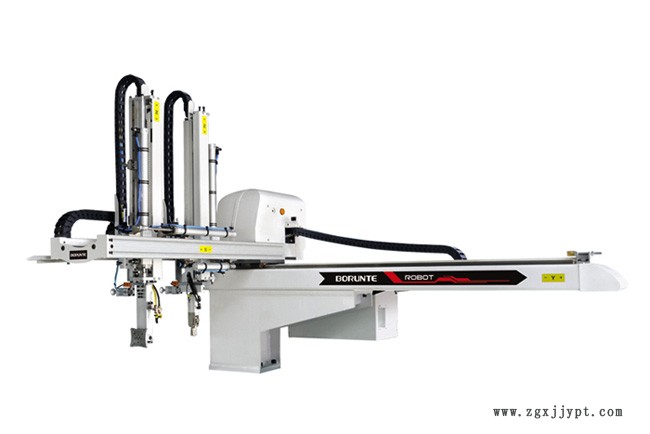

BRTN Series is applicable to all types of horizontal injectionmachine ranges of 220T-600T for take-outproducts and sprues,
Three-axis driven by AC servo motor，安徽高速伯朗特机械手，安徽高速伯朗特机械手, take-out at super high-speedat most 1.8sec. Easy for E-O-A-T adjustment, long using life andlow failure rate, applicable to take-out products with short formingcycle or complex automatic，安徽高速伯朗特机械手, such as auto products, washingmachine and household appliance products take-outHC three-axis/five axis CANOPEN connecting way
Less connecting line, long distance communication, goodexpansibility, strong anti-interference ability, high repeat
precision, can simultaneously control multi axis, simple equipmentmaintenance, low failure rate
同时将下模内部的成品挤出去，从而使装置在收取成品时就能将间隔件放置在下模内腔中，不需要人工将下模中的产品取出，降低生产产品的繁琐程度，降低工作人员的工作量。附图说明图1为本技术结构示意图；图2为本技术连接块与收集箱连接结构示意图。图中：1、注塑机本体；2、侧板；3、下模；4、底板；5、固定杆；6、伺服滑台；7、电动伸缩杆；8、上模；9、负压吸附装置；10、开孔；11、连接块；12、收集箱；13、导向杆；14、连接杆；15、限位块；16、固定块；17、固定槽。具体实施方式下面将结合本技术实施例中的附图，对本技术实施例中的技术方案进行清楚、完整地描述，显然，所描述的实施例仅仅是本技术一部分实施例，而不是全部的实施例。基于本技术中的实施例，本领域普通技术人员在没有做出创造性劳动前提下所获得的所有其他实施例，都属于本技术保护的范围。请参阅图1-2，本技术提供一种技术方案：一种用于冰箱配件生产的注塑机机械手，包括注塑机本体1，注塑机本体1顶部左右两侧外壁均设置有侧板2，侧板2与注塑机本体1固定连接，两组侧板2相互靠近的一侧底部外壁均设置有固定杆5，固定杆5与侧板2固定连接，两组固定杆5之间设置有下模3，下模3与固定杆5固定连接。
三轴伺服横走式机械手BRTM系列机械手臂适用150T-380T的各型卧式射出成型机，手臂形式是双截式，分3轴及5轴AC伺服驱动。取出时间1.2sec，全循环6sec应用于快速取出或是模内贴、模内镶件等特殊产品应用。华成三/五轴专用 CANOPEN总线通讯方式信号线少，远距离通讯，扩展性能好，抗干扰能力强，重复定位精度高，可以同时控制多轴，设备维护简单，故障率少。 BRTM Series is applicable to all types of horizontal injectionmachine ranges of 150T-380T for take-out products and sprues
Vertical arm is telescopic stage. Full AC servo motor driven oneach axis, Products take-out at supernlgh-speed (1. 2sec. )and drycycle time within seconds, applicable to take-out products withshort forming cycle or complex automatic. Also with the function of
mold labeling and mold inserting
HC three-axis/five axis CANOPEN connecting way.
Less connecting line. long distance communication, good
expansibility
strong anti-interference ability, high repeat
precision, can simultaneously control multi axis, simple equipmentmaintenance, low failure rate.
