| 加工定制 : | 是 | 品牌 : | DESU |
| 型号 : | EIK | 起重机类型 : | 折臂起重机 |
| 订货号 : | DS936701 | 货号 : | EIK |
| 操作形式 : | 手握/悬浮 | 结构形式 : | 折臂式 |
| 跨度 : | ≤3.5 | 悬臂长度 : | ≤6 |
| 有效起升高度 : | ≤3.75 | 额定起重量 : | ≤0.6 |

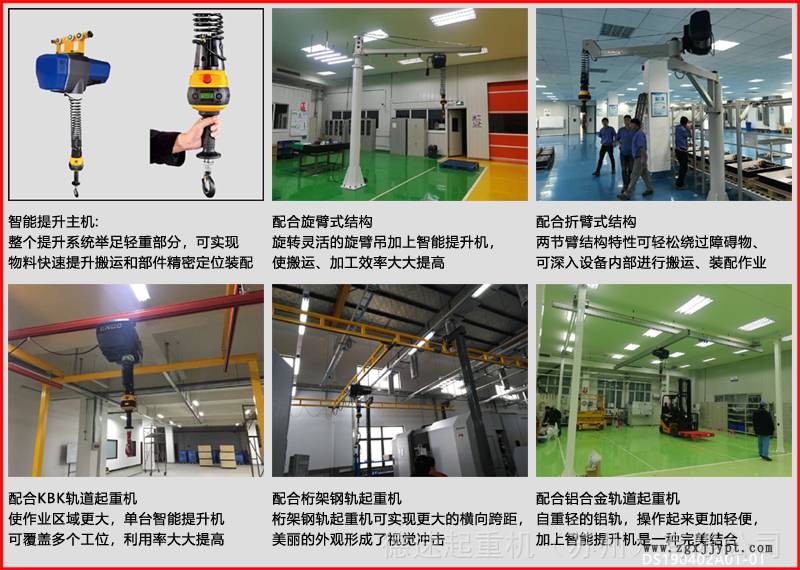

| 适用范围 : | 车间、产线等 | 大车运行速度 : | 手动 |
| 额定起重力矩 : | ≤6 | 回转速度 : | 手动 |

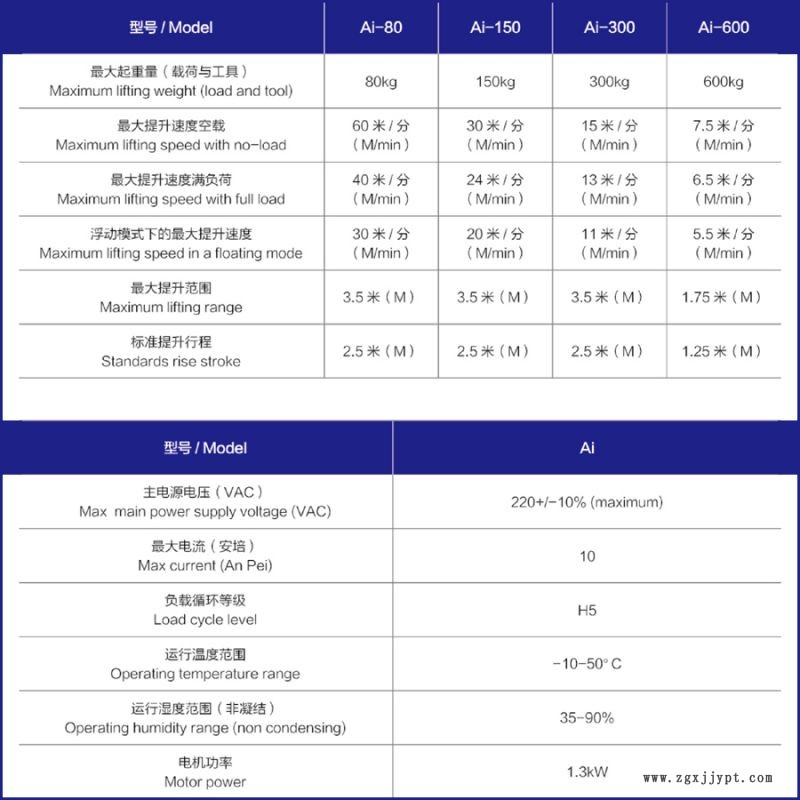

| 规格 : | 80/150/300/600 |

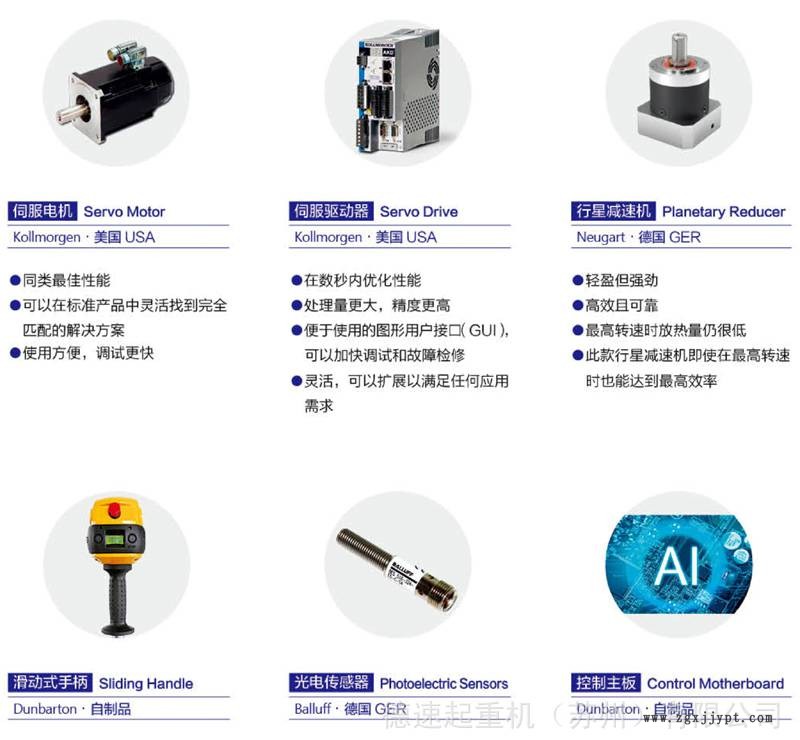

智能提升机以智能控制为核心，采用业界 的伺服电机驱动系统，结合精密级行星齿轮减速机，真正实现物料搬运和部件装配的高速、精准和安全，为企业大幅提高生产效率、降低人力成本提供了一种实实在在的选择。
Intelligent hoist takes intelligent control as the core, adopts the leading servo motor drive system in the industry, and combines with precision planetary gear reducer, realizes the high speed, precision and safety of material handling and component assembly, which provides a real choice for enterprises to greatly improve production efficiency and reduce labor costs.

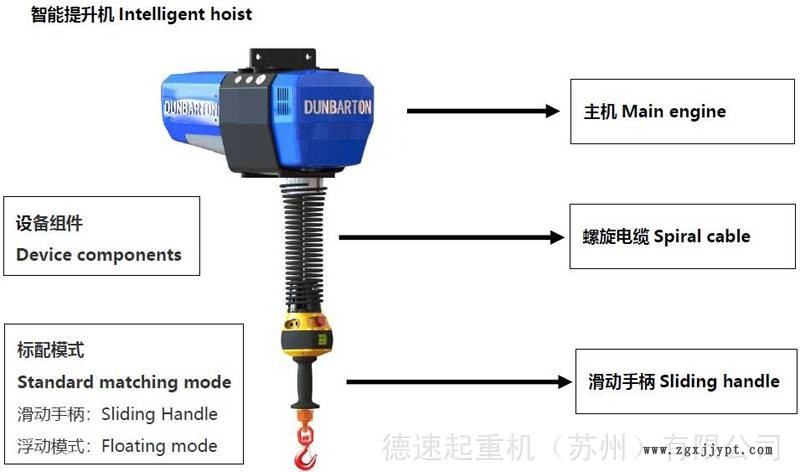

主机Main engine
主机有带保护制动的伺服电机、变速箱、主鼓轮及控制装置,还包括系统电源、上下限位开关。
The main engine has servo motor with protective brake, transmission, main drum wheel and control device, including system power supply, upper and lower limit switch.
螺旋电缆Spiral cable
螺旋电缆将信号由手柄传输至主机，信号包括提升速度，提升方向，紧急停止及故障信号等。
The helical cable transmits the signal from the handle to the main engine. The signal includes lifting speed, lifting direction, emergency stop and fault signal, etc.
滑动手柄Sliding handle
滑动手柄是操作员与提升装置之间的主要接口。
Sliding handle is the main interface between operator and lifting device.
