| 内径 | 30 |
|---|---|
| 外径 | 7 |
| 品牌 | HKK |
| 型号 | 140-4 CHAIN -2 |
呼和浩特COC报价

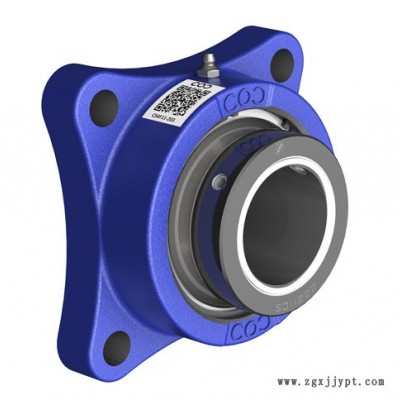

Unit No. Bearing No. Shaft Dia. L J Bolt Size Cr Cor
CS4F08-107 22208-107CS 1 7/16 in 4 25/32 in 3 17/32 in 1/2 in 20408 lbf 21623 lbf
CS4F08-108 22208-108CS 1 1/2 in 4 25/32 in 3 17/32 in 1/2 in 20408 lbf 21623 lbf
CS4F08-040 22208-040CS 40 mm 121 mm 89.7 mm M12 90.7 kN 96.1 kN
CS4F09-111 22209-111CS 1 11/16 in 5 1/8 in 2 57/64 in 1/2 in 21150 lbf 23625 lbf
CS4F09-112 22209-112CS 1 3/4 in 5 1/8 in 2 57/64 in 1/2 in 21150 lbf 23625 lbf
CS4F09-045 22209-045CS 45 mm 130 mm 98.8 mm M12 94 kN 105 kN
CS4F10-115 22210-115CS 1 15/16 in 5 5/16 in 4 1/16 in 1/2 in 22095 lbf 25313 lbf
CS4F10-050 22210-050CS 50 mm 135 mm 103.2 mm M12 98.2 kN 112.5 kN
CS4F10-200 22210-200CS 2 in 5 5/16 in 4 1/16 in 1/2 in 22095 lbf 25313 lbf
CS4F11-055 22211-055CS 55 mm 149 mm 114.7 mm M16 122 kN 145 kN
CS4F11-203 22211-203CS 2 3/16 in 5 27/32 in 4 33/64 in 5/8 in 27450 lbf 32625 lbf
CS4F11-204 22211-204CS 2 1/4 in 5 27/32 in 4 33/64 in 5/8 in 27450 lbf 32625 lbf
CS4F13-060 22213-060CS 60 mm 156 mm 121.4 mm M16 178 kN 212 kN
CS4F13-207 22213-207CS 2 7/16 in 6 1/8 in 4 25/32 in 5/8 in 40050 lbf 47700 lbf
CS4F13-208 22213-208CS 2 1/2 in 6 1/8 in 4 25/32 in 5/8 in 40050 lbf 47700 lbf
CS4F13-065 22213-065CS 65 mm 156 mm 121.4 mm M16 178 kN 212 kN
CS4F15-211 22215-211CS 2 11/16 in 7 7/32 in 5 9/16 in 3/4 in 42075 lbf 51300 lbf
CS4F15-212 22215-212CS 2 3/4 in 7 7/32 in 5 9/16 in 3/4 in 42075 lbf 51300 lbf
CS4F15-070 22215-070CS 70 mm 183 mm 141.3 mm M20 187 kN 228 kN
CS4F15-215 22215-215CS 2 15/16 in 7 7/32 in 5 9/16 in 3/4 in 42075 lbf 51300 lbf
CS4F15-075 22215-075CS 75 mm 183 mm 141.3 mm M20 187 kN 228 kN
CS4F15-300 22215-300CS 3 in 7 7/32 in 5 9/16 in 3/4 in 42075 lbf 51300 lbf
CS4F18-080 22218-080CS 80 mm 210 mm 170.7 mm M20 302 kN 373 kN
CS4F18-304 22218-304CS 3 1/4 in 8 9/32 in 6 23/32 in 3/4 in 67950 lbf 83925 lbf
CS4F18-085 22218-085CS 85 mm 210 mm 170.7 mm M20 302 kN 373 kN
CS4F18-307 22218-307CS 3 7/16 in 8 9/32 in 6 23/32 in 3/4 in 67950 lbf 83925 lbf
CS4F18-308 22218-308CS 3 1/2 in 8 9/32 in 6 23/32 in 3/4 in 67950 lbf 83925 lbf
CS4F18-090 22218-090CS 90 mm 210 mm 170.7 mm M20 302 kN 373 kN
CS4F20-100 22220-100CS 100 mm 235 mm 193.3 mm M22 371 kN 471 kN
CS4F20-315 22220-315CS 3 15/16 in 9 1/4 in 7 39/64 in 7/8 in 83475 lbf 105975 lbf
CS4F20-400 22220-400CS 4 in 9 1/4 in 7 39/64 in 7/8 in 83475 lbf 105975 lbf
