建议零售价 | ¥0.00 |
---|---|
厂家(产地) | 美国杜邦 |
牌号 | 73G30HSL BK416 |
加工级别 | 注塑级 |
用途级别 | 通用级 |
销售方式 | 品牌经销 |
类型 | 标准料 |
建议零售价:¥0.00 | 厂家(产地):美国杜邦 |
牌号:73G30HSL BK416 | 加工级别:注塑级 |
用途级别:通用级 | 销售方式:品牌经销 |
类型:标准料 |
产品参数
产地:美国杜邦生产
级别:增强耐热级(玻璃纤维增强30%含热稳定剂)

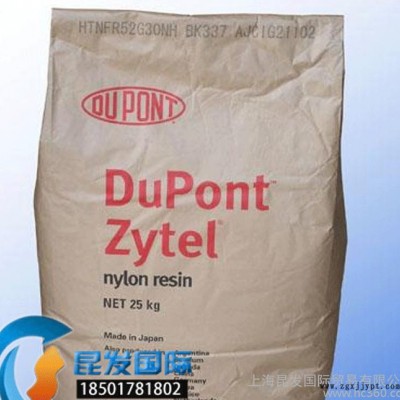

批次:PRODUCT : ZYTEL(R) 73G30HSL BK416
包装形式: 25 KG BAG NYLON RESIN
SPECIFICATION : DUPONT STANDARD SPEC
(BATCH TEST) BATCH NO: AC3MHM3102
Ash Content % ISO 3451/1 28.0 32.0 29.7
Melt Viscosity, Pa.s ISO 11443 100.0 300.0 169.0
Water Content at Packout, % ISO 15512 0.18 0.12
(PERIODIC TEST) REP. BATCH: AC3LIHI202
Notched Charpy, KJ/M2 ISO 179 9.0 13.9
Tensile Modulus, MPA ISO 527 8500 10100
Tensile Strain At Break ISO 527 2.0 3.3
Tensile Strength, MPA ISO 527 165 186
THIS PRODUCT CERTIFICATION IS NON-TRANSFERABLE AND IS VALID onLY TO THE FIRST END-USER PURCHASING THIS PRODUCT DIRECTLY FROM
DUPONT OR FROM A DUPONT-AUTHORIZED DISTRIBUTOR. PRODUCT AND/OR PRODUCT CERTIFICATION OBTAINED FROM AN UNAUTHORIZED SOURCE IS ASSUMED
COUNTERFEIT, AND DUPONT MAKES NO WARRANTIES AND ASSUMES NO LIABILITY IN ConNECTION WITH THE USE OF PRODUCT OR PRODUCT CERTIFICATION
OBTAINED FROM AN UNAUTHORIZED SOURCE. Call 86-755-83307848 for a list of authorized distributors in your area. Copyright © 2006
DuPont China Holding Co. Ltd. All Rights Reserved. Property of DuPont China Holding Co. Ltd. No portion of this work may be
reproduced in whole or in part by any electronic, mechanical or other means, including xerography, photocopy, or any information
storage or retrieval system, or otherwise distributed without the express permission of DuPont China Holding Co. Ltd.
LIMITS
TESTS TEST METHOD MIN MAX RESULTS
DUPONT ORDER NO: 3031394
