| 型号 | VT 952 |
|---|---|
| 壁厚 | 0.4-0.65 |
| 材质 | 橡胶导管 |
| 公称外径 | 38-406 |
| 产地/厂商 | 意大利 |
| 品牌 | ZIMFLEX |

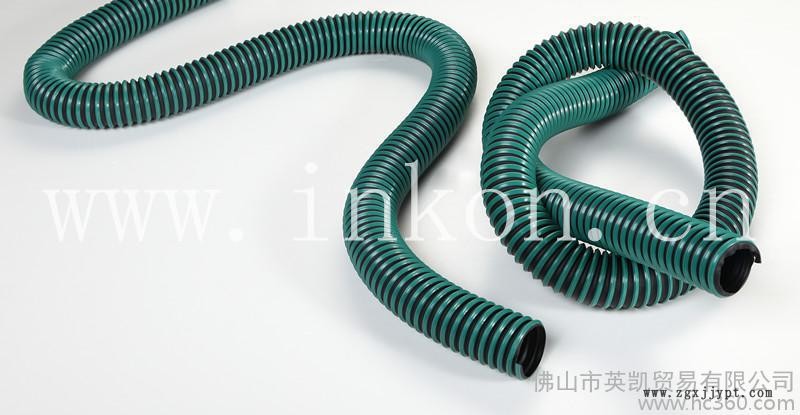

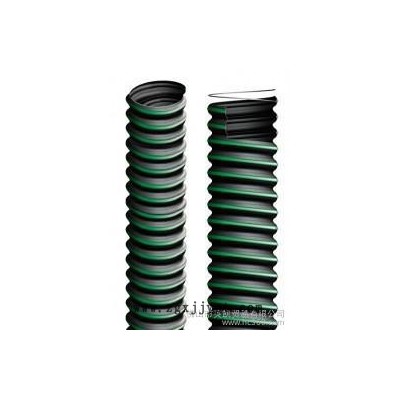

VT 952
颜色:黑色带绿色条纹
耐温:-40°C / +125°C

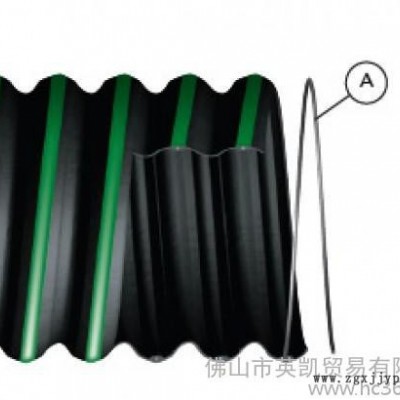

特性:双层热塑性橡胶导管, 内嵌螺旋钢丝加强筋。质轻且柔软, 耐高温、耐磨损、 耐化学品。
| 订购代码 | 内径 | 螺旋间壁厚 | 重量 | 耐负压 | 弯曲半径 | 每卷长度 | 体积 |
| mm | mm | g/m | m H2O | mm | m | m3 | |
| 952-038-20 | 38 | 0.4 | 190 | 2.0 | 30.0 | 20 | 0.074 |
| 952-040-20 | 40 | 0.4 | 200 | 2.0 | 32.0 | 20 | 0.077 |
| 952-045-20 | 45 | 0.4 | 230 | 2.0 | 36.0 | 20 | 0.092 |
| 952-051-20 | 51 | 0.4 | 250 | 2.0 | 40.0 | 20 | 0.108 |
| 952-060-20 | 60 | 0.4 | 300 | 1.7 | 50.0 | 20 | 0.137 |
| 952-063-20 | 63 | 0.4 | 310 | 1.7 | 55.0 | 20 | 0.150 |
| 952-070-20 | 70 | 0.5 | 440 | 1.7 | 60.0 | 20 | 0.181 |
| 952-076-20 | 76 | 0.5 | 470 | 1.7 | 65.0 | 20 | 0.232 |
| 952-080-20 | 80 | 0.5 | 500 | 1.6 | 65.0 | 20 | 0.254 |
| 952-090-20 | 90 | 0.5 | 580 | 1.6 | 75.0 | 20 | 0.294 |
| 952-102-15 | 102 | 0.6 | 620 | 1.3 | 85.0 | 15 | 0.286 |
| 952-110-15 | 110 | 0.6 | 660 | 1.2 | 90.0 | 15 | 0.318 |
| 952-120-15 | 120 | 0.6 | 730 | 1.0 | 100.0 | 15 | 0.369 |
| 952-127-15 | 127 | 0.65 | 840 | 1.0 | 105.0 | 15 | 0.405 |
| 952-130-15 | 130 | 0.65 | 870 | 0.8 | 105.0 | 15 | 0.427 |
| 952-140-15 | 140 | 0.65 | 950 | 0.8 | 115.0 | 15 | 0.504 |
| 952-152-15 | 152 | 0.65 | 1030 | 0.8 | 125.0 | 15 | 0.544 |
| 952-160-15 | 160 | 0.65 | 1100 | 0.7 | 130.0 | 15 | 0.666 |
| 952-180-15 | 180 | 0.65 | 1350 | 0.5 | 150.0 | 15 | 0.864 |
| 952-203-15 | 203 | 0.65 | 1500 | 0.4 | 165.0 | 15 | 1.157 |
| 952-228-10 | 228 | 0.65 | 1700 | 0.4 | 185.0 | 10 | 0.941 |
| 952-254-10 | 254 | 0.65 | 1950 | 0.4 | 210.0 | 10 | 1.197 |
| 952-279-10 | 279 | 0.65 | 2150 | 0.4 | 230.0 | 10 | 1.426 |
| 952-305-10 | 305 | 0.65 | 2400 | 0.3 | 250.0 | 10 | 1.633 |
| 952-356-10 | 356 | 0.65 | 2790 | 0.3 | 300.0 | - | - |
| 952-406-10 | 406 | 0.65 | 3250 | 0.3 | 350.0 | - | - |
