宝鸡福莱通机械有限公司

以下是福莱通 BNG-700*G3/4橡胶管防爆挠性连接管 700mm长防爆挠性连接管厂家销售详细信息参数，福莱通 BNG-700*G3/4橡胶管防爆挠性连接管 700mm长防爆挠性连接管厂家销售由宝鸡福莱通机械有限公司提供，

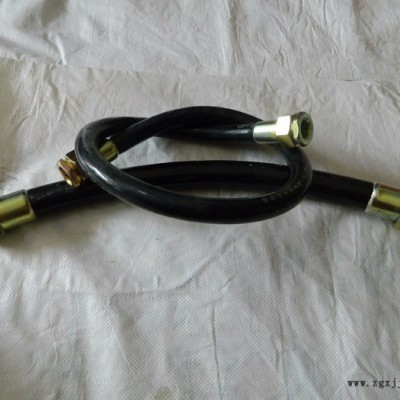

福莱通 BNG-700*G3/4橡胶管防爆挠性连接管 700mm长防爆挠性连接管厂家销售

一、简介

One, introduction

1.适用于性气体环境1区、2区；

1 suitable for explosive gas environment 2 zone, 1 zone;

2.适用于IIA、IIB、IIC级性气体环境；

2 applies to IIA, IIB, IIC explosive gas environment;

3.适用于可燃性粉尘环境20区、21区、22区；

3 suitable for c o mbustible dust environment 20 zone, 21 zone, 22 zone;

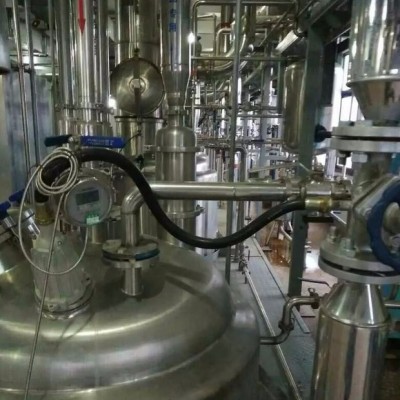

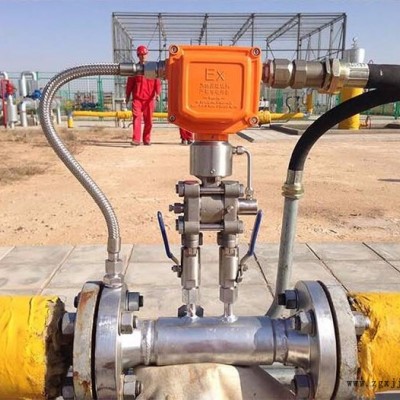

4.适用于石油采炼、储存、化工、医药、设施等性气体环境；

4 applicable to the petroleum production and refining, storage, chemical, pharmaceutical, military and military facilities in explosive gas environment;

二、产品特点

Two, product features

1.防爆挠性管由活口接头与连接管组成；连接管由内管与护套组成；

1 explosion-proof flexible tube by shifting joint and connecting pipe; connecting pipe is c o mposed of an inner tube and a sheath;

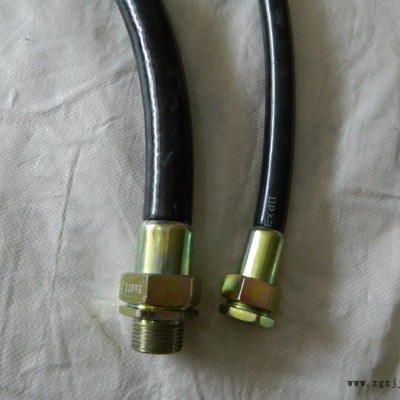

2.活接头由不锈钢制作，或碳素钢电镀处理；

2 active joints made of stainless steel or high quality carbon steel, electroplating processing;

3.内管由波纹管或金属软管制成，具有良好耐腐性；

The tube is made of corrugated pipe or metal hose 3, with good resistance to rot;

4.具有阻燃、耐腐蚀、耐水、耐老化、挠性良好、结构牢固、工作可靠等特点；

4 with flame retardant, corrosion resistance, water resistance, aging resistance, good flexibility, firm structure and reliable work, etc.;

5.螺纹尺寸规格可根据用户要求特殊加工，如NPT螺纹、英制以及公制螺纹等；

The 5 thread sizes ac c ording to special processing requirements of users, such as NPT thread, inch and metric thread etc.;

6.防爆挠性管长度，常规供货有500mm、700mm、1000mm可供选择，也可根据用户要求需求订制其他长度；

6 explosion proof flexible tube length, the conventional 500mm, 700mm, 1000mm supply is available, can also ac c ording to user requirements demand other length;

7.三种不同材质可供选择

7 of three different materials available

三、技术参数

Three, the technical parameters

1.执行标准：GB 3836.1、GB3836.2、GB 12476.1、JB/T 9600、IEC60079-0、IEC60079-1、IEC61241-1-1；

Executive standard: GB 1, GB3836.2 3836.1, GB 12476.1, JB/T 9600, IEC60079-0, IEC60079-1, IEC61241-1-1;

2.防爆标志：Exd II、DIP A20

2 explosion-proof symbol: Exd II, DIP A20

3.防护等级：IP65

3 protection grade: IP65
