| VPN | 支持VPN |
|---|---|
| 品牌 | Cisco/思科 |
| 型号 | ASA5545-IPS-K9 |

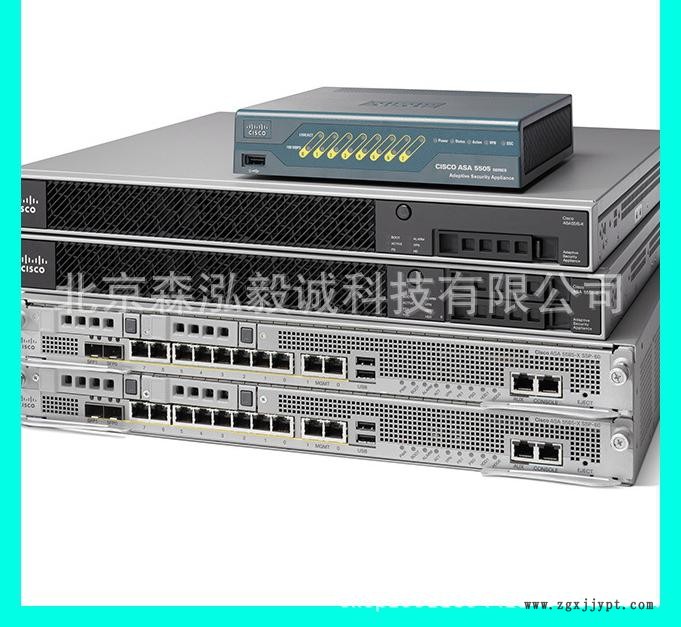

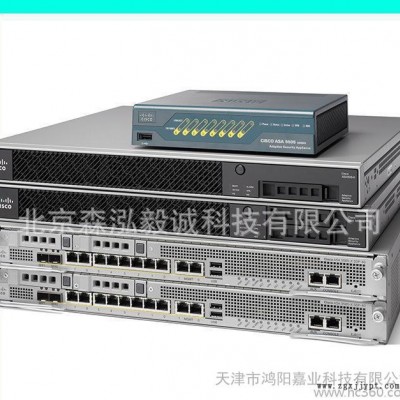

思科防火墙Cisco ASA 5545-X IPS Edition (ASA5545-IPS-K9)
1.Brand: CISCO
2.Model: CISCO ASA5545-IPS-K9
3.Device type:CISCO ASA 5545-X with IPS, SW, 8GE Data, 1GE Mgmt, AC, 3DES/AES
Product Description
1.Brand: CISCO firewall
2.Model: CISCO ASA5545-IPS-K9
3.Device type:CISCO ASA 5545-X with IPS, SW, 8GE Data, 1GE Mgmt, AC, 3DES/AES
Cisco Firewall ASA5545-IPS-K9
PRODUCT DETAILS| Device Type | Security appliance |
| Enclosure Type | Rack-mountable - 1U |
| RAM | 12 GB |
| Ports Qty | 8 |
| Data link Protocol | Gigabit Ethernet |
| Performance | Firewall throughput : 3 Gbps VPN throughput (3DES/AES) : 400 Mbps Connection rate : 30000 connections per second Firewall + intrusion prevention throughput : 900 Mbps |
| Capacity | IPSec VPN peers : 2500 SSL VPN peers : 2 Concurrent sessions : 750000 Virtual interfaces (VLANs) : 300 Security contexts : 2 |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 42.9 cm x 48.4 cm x 4.2 cm |
| Weight | 7.6 kg |
| Manufacturer Warranty | 90 days warranty |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 42.9 cm |
| Depth | 48.4 cm |
| Height | 4.2 cm |
| Weight | 7.6 kg |
| RAM | 12 GB |
| Form Factor | Rack-mountable |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data link Protocol | Gigabit Ethernet |
| Performance | Firewall throughput : 3 Gbps VPN throughput (3DES/AES) : 400 Mbps Connection rate : 30000 connections per second Firewall + intrusion prevention throughput : 900 Mbps |
| Capacity | IPSec VPN peers : 2500 SSL VPN peers : 2 Concurrent sessions : 750000 Virtual interfaces (VLANs) : 300 Security contexts : 2 |
| Status Indicators | Power, HDD activity, active, alarm |
| Features | Firewall protection, VPN support, VLAN support, High Availability, Intrusion Prevention System (IPS) |
| Encryption Algorithm | DES |
| Expansion Slots | 1 (total) / 1 (free) x expansion slot |
| Interfaces | 8 x 1000base-T - RJ-45 1 x 1000base-T (management) - RJ-45 1 x management - RJ-45 2 x USB 2.0 - Type A |
| Rack Mounting Kit | Included |
| Compliant Standards | VCCI, C-Tick, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, UL 60950-1, IEC 60950-1, EN 60950-1, FCC Part 15 B Class A, CAN/CSA C22.2 No. 60950-1-07, ANSI C63.4-2009 |
| Power Device | Internal power supply |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Power Redundancy | Optional |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Power Provided | 400 Watt |
| Software Included | Drivers & Utilities |
| Service & Support | 90 days warranty |
| Service & Support Details | Limited warranty - 90 days |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 40 °C
|
