| 商品品牌 | 牛顿N4L |
|---|---|
| 商品型号 | PPA1510 PPA1520 PPA1530 |
| 测量范围 | DC and 10mHz to 1MHz |
| 测量精度 | 0.05% |
| 产品用途 | 功率分析仪 |
| 品牌 | 英国牛顿N4L |
| 型号 | PPA1530 |
| 加工定制 | 否 |

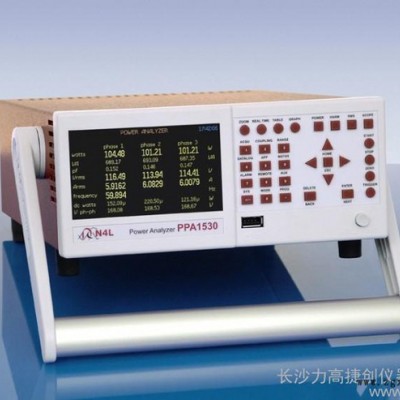

英国牛顿N4L PPA 1500系列功率分析仪 功率计PPA1510 PPA1520 PPA1530
长沙泰克示波器 长沙泰克电源 长沙力科示波器 长沙力科电源 长沙安捷伦示波器 长沙力科电源 长沙安捷伦示波器 长沙安捷伦电源 长沙福禄克万用表 湖南福禄克万用表 高压探头 电流探头 湖南泰克示波器 湖南泰克电源 湖南力科示波器 湖南力科电源 湖南安捷伦示波器 湖南力科电源 湖南安捷伦示波器 湖南安捷伦电源 高压探头 电流探头
一、产品简介
High performance compact power analysis
Joining the established PPA2500 series and the ultimate accuracy PPA5500, the PPA1500 series ensures that N4L power analyzers provide the optimum solution to almost any power measurement application and budget.
While being only half rack width and 2U high, the PPA1500 is available in 1, 2 or 3 phase configurations and offers a level of performance normally found only in large and more costly instruments.
The PPA1500 series analyzers now have a 6 Phase 2U Rack option in which two PPA1530 units are installed on the same rack side by side, see our accessories page for more details.
二、产品特点及详细参数
| 0.05% Basic accuracy | Frequency range DC and 10mHz to 1MHz |
| High precision internal shunts – Superior accuracy to any external shunt | 10 millidegree phase accuracy – Necessary for low power factor applications |
| 20 Arms (300 Apk) & 1000 Vrms (2500 Vpk) direct input | Unique x10 gain mode for Standby Power measurement |
| High speed sampling on all channels | True real time analysis with no measurement gap |
| 1, 2 or 3 phase versions | High contrast full colour graphic display |
| Simple BNC connection of N4L shunts for high current applications | RS232, USB, LAN, Extension and Auxiliary ports |
