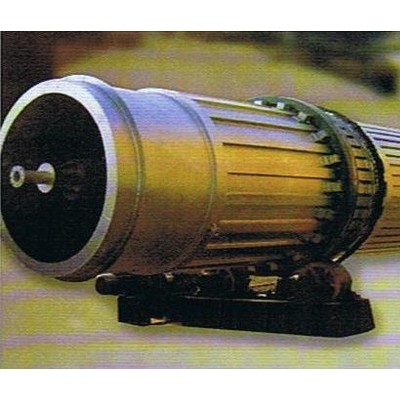

再生胶动态脱硫罐主要用于将粉末状硫化胶与软化剂、活化剂及水等置于罐内，在连续搅拌下密闭加热，以使胶粉达到均匀有效胶硫目地，是采用高温动态脱硫新工艺的关键设备。
This product is used for that in order to reach even and effective desulfidation for rubber powder, put pulverous crosslinked rubber, softener, activator and water into the pot ,heat hermetically and mix contlnuously, adopted key equipment for the technology of high temperature dynamic desulfidation.
该产品为卧式II类压力容器，用导热油加热。罐口开关门有全自动和手动二种形式供用户选择。罐体上部为加料口、下部为出料口。全自动动态罐开关门由液压控制。手动动态罐开关门采用人工机械错口手动开关门，以上两种动态罐均与零压开关连锁，确保安全。搅拌器由JZQ系列减速器通过双排链轮传动或直给式转动，正反转可自动控制。搅拌浆形式为带状与附壁组合式。压力容器部件按GB150-98《钢制压力容器》标准设计、制造。由河北省锅炉压力容器监督检测所监检验收。
This product is a horizontal pressure vessel Type II, heats up with the heat conduction oil. Customers could select two ways-automatic and manual operation for pot gate opening and closing. Upside of the pot is charge port, and downside is discharge port. Full auto-dynamic pot opening and closing gate is controlled by hydraulic pressure. Adopt manual mechanical alternate out hand opening and closingate for the manual dynamic opening and closing gate. Above two dynamic pots are linked to the zero pressures witch to ensure safety. Adopt JZQ series reducer through douole row chain wheel rotating or direct driving for the blender, positive and negative rotating could be controlled automatically. The shape of mixing propeller is assorted of ribbon and mural. The parts of pressure vessel are designed and manufactured according to BG150-98 “Steel Pressure Vessel” and have been inspected examination and approved by. Hebei province Technology Inspection Office of Boiler and Pressure Vessel.
| 参数 Parameter 内容Content | 型号 Model | ||||||
| ZT─3.3R | ZT─4.5R | ZT—6R | ZT—8R | ||||
| 容器设计压力Design Pressure | 2.1Mpa | 2.1Mpa | 2.1Mpa | 2.1Mpa | |||
| 容器工作压力Working Pressure | 1.8Mpa | 1.8Mpa | 1.8Mpa | 1.8Mpa | |||
| 容器设计温度Design Temperature | 2170C | 2170C | 2170C | 2170C | |||
| 容器工作温度Working Temperature | 2120C | 2120C | 2120C | 2120C | |||
| 夹套设计温度 Jacket Design Temperature | 3000C | 3000C | 3000C | 3000C | |||
| 夹套工作温度jacket working temperature | ﹤3000C | ﹤3000C | ﹤3000C | ﹤3000C | |||
| 有效容积Active Volume | 3.0m3 | 4.5m3 | 6m3 | 8m3 | |||
| 搅拌器转速Rotate Speed of Blender | 16r/min | 16r/min | 15r/min | 15r/min | |||
| 夹套容积Jacket Volume | 0.72m3 | 1.04m3 | 1.6m3 | 1.8m3 | |||
| 夹套设计压力Design Pressuer of Jacket | 0.1Mpa | 0.1Mpa | 0.1Mpa | 0.1Mpa | |||
| 夹套工作压力Working Pressure of Jacket | 常压 | 常压 | 常压 | 常压 | |||
| 加热方式Heating Method | 导热油 Heat conduction oil | ||||||
| 换热面积Hear Exchange Area | 8.18m2 | 12.55m2 | 15m2 | 17m2 | |||
| 电机功率Motor Power | 15kw | 18.5kw | 18.5kw | 18.5kw | |||
动态脱硫罐性能参数：
| 参数 Parameter 内容Content | 型号 Model | |||||
| ZT─3.3R | ZT─4.5R | ZT—6R | ZT—8R | |||
| 容器设计压力Design Pressure | 3.0Mpa | 3.0Mpa | 3.0Mpa | 3.0Mpa | ||
| 容器工作压力Working Pressure | 2.85Mpa | 2.85Mpa | 2.85Mpa | 2.85Mpa | ||
| 容器设计温度Design Temperature | 2350C | 2350C | 2350C | 2350C | ||
| 容器工作温度Working Temperature | 2300C | 2300C | 2300C | 2300C | ||
| 夹套设计温度 Jacket Design Temperature | 3000C | 3000C | 3000C | 3000C | ||
| 夹套工作温度jacket working temperature | ﹤3000C | ﹤3000C | ﹤3000C | ﹤3000C | ||
| 有效容积Active Volume | 3.0m3 | 4.5m3 | 6m3 | 8m3 | ||
| 搅拌器转速Rotate Speed of Blender | 16r/min | 16r/min | 15r/min | 15r/min | ||
| 夹套容积Jacket Volume | 0.72m3 | 1.04m3 | 1.6m3 | 1.8m3 | ||
| 夹套设计压力Design Pressuer of Jacket | 0.1pa | 0.1Mpa | 0.1Mpa | 0.1Mpa | ||
| 夹套工作压力Working Pressure of Jacket | 常压 | 常压 | 常压 | 常压 | ||
| 加热方式Heating Method | 导热油 Heat conduction oil | |||||
| 换热面积Hear Exchange Area | 8.18m2 | 12.55m2 | 15m2 | 17m2 | ||
| 电机功率Motor Power | 15kw | 18.5kw | 18.5kw | 18.5kw | ||
动态脱硫罐性能参数：
| 参数 Parameter 内容Content | 型号 Model | |||||
| ZT─3.3R | ZT─4.5R | ZT—6R | ZT—8R | |||
| 容器设计压力Design Pressure | 4.0Mpa | 4.0Mpa | 4.0Mpa | 4.0Mpa | ||
| 容器工作压力Working Pressure | 3.65Mpa | 3.65Mpa | 3.65Mpa | 3.65Mpa | ||
| 容器设计温度Design Temperature | 2520C | 2520C | 2520C | 2520C | ||
| 容器工作温度Working Temperature | 2460C | 2460C | 2460C | 2460C | ||
| 夹套设计温度 Jacket Design Temperature | 3000C | 3000C | 3000C | 3000C | ||
| 夹套工作温度jacket working temperature | ﹤3000C | ﹤3000C | ﹤3000C | ﹤3000C | ||
| 有效容积Active Volume | 3.0m3 | 4.5m3 | 6m3 | 8m3 | ||
| 搅拌器转速Rotate Speed of Blender | 16r/min | 16r/min | 15r/min | 15r/min | ||
| 夹套容积Jacket Volume | 0.72m3 | 1.04m3 | 1.6m3 | 1.8m3 | ||
| 夹套设计压力Design Pressuer of Jacket | 0.1Mpa | 0.1Mpa | 0.1Mpa | 0.1Mpa | ||
| 夹套工作压力Working Pressure of Jacket | 常压 | 常压 | 常压 | 常压 | ||
| 加热方式Heating Method | 导热油 Heat conduction oil | |||||
| 换热面积Hear Exchange Area | 8.18m2 | 12.55m2 | 15m2 | 17m2 | ||
| 电机功率Motor Power | 15kw | 18.5kw | 18.5kw | 18.5kw | ||
