| 产地 | 山东 |
|---|---|
| 产品别名 | 压路机 |
| 产品认证 | CE |
| 发动机品牌 | 常柴 |
| 发动机型号 | F490 |
| 工作重量 | 4t |
| 类型 | 单钢轮震动压路机 |
| 新旧程度 | 全新 |
| 压实宽度 | 1300mm |
| 振动轮宽度 | 1300mm |
| 振动轮直径 | 1000mm |
| 振动频率 | 65Hz |
| 是否可定制 | 是 |
| 品牌 | 庆安 |
| 型号 | QA-40 |
| 路面机械类型 | 压路机 |
| 配件适用对象 | 压路机 |

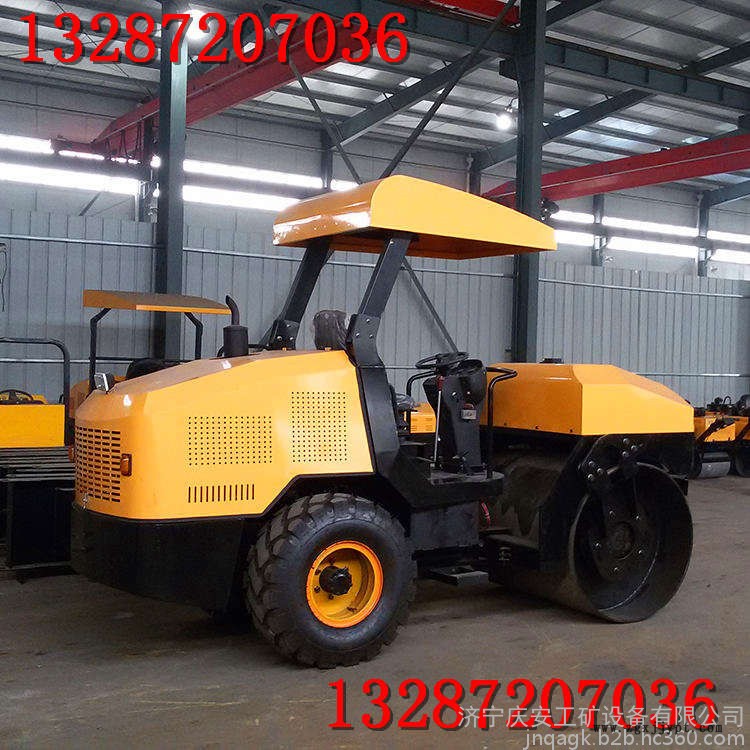

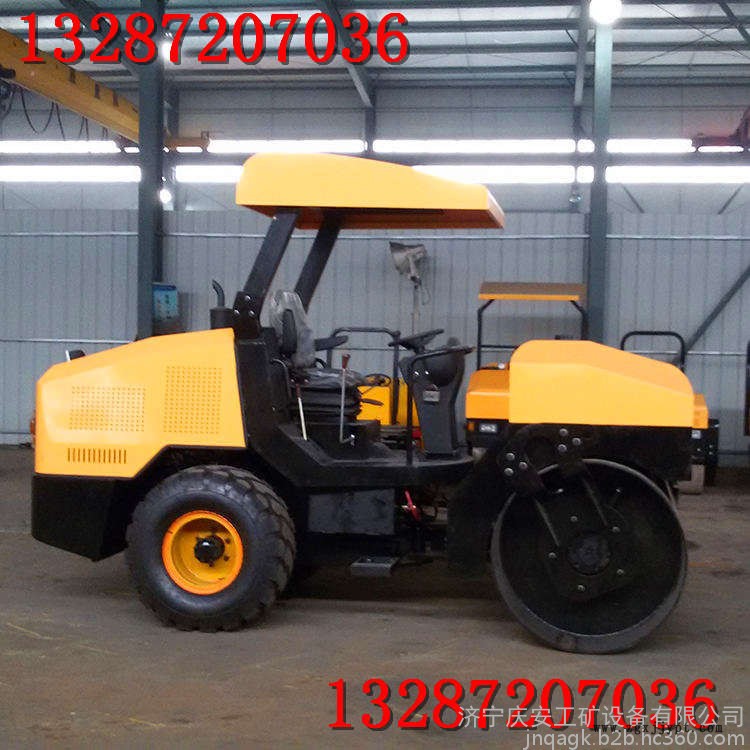

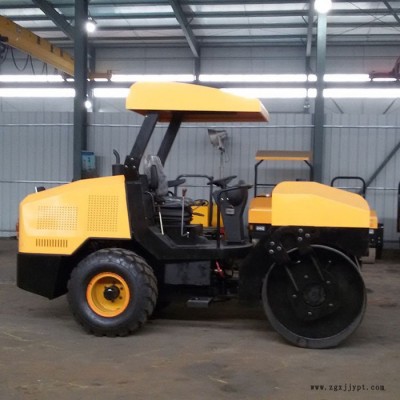

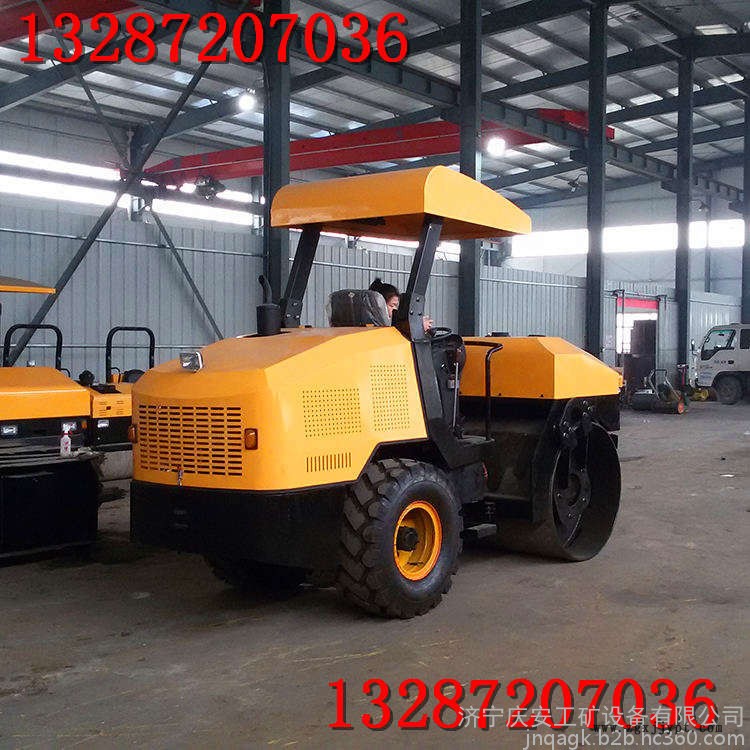

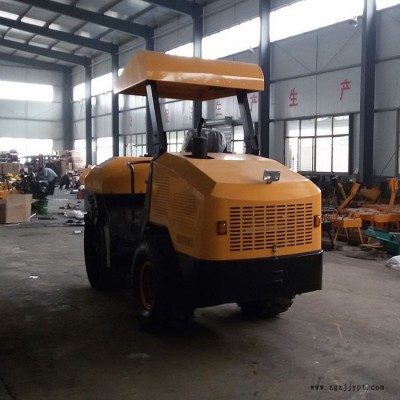

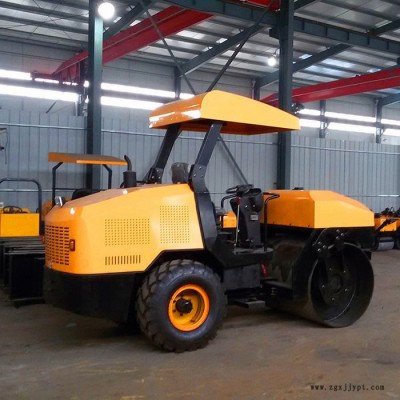

品质卓越4吨轮胎式压路机 高端品质柴油压路机
High quality 4-ton wheel tire roller high quality diesel roller
主要优点：
1.该机灵活方便，适用于道路土方压实，沥青混凝土、沙石混合料和水泥稳定土的铺垫、压实，以及沟槽回填、建筑工程回填的压实，是一种理想的压实设备。
2.配置高效节能的柴油机，功率大，动力强劲，效率高。
3.制动系统采用油气刹，使刹车更加可靠、轻便，配置手刹，操作更加方便。
4.机械行走液压振动、液压转向，具有可靠的性能和功能。
5.铰接式链接，转向灵活，转场方便快捷。
6.整机结构紧凑合理，配置高，性能好，质量可靠，工作效率高。
7.投资小，回报快，可靠性高，维护简单方便。
Main advantages:
1. This machine is flexible and convenient, and is suitable for compaction of road soil, paving and compaction of asphalt concrete, sand and stone mixture and cement stabilized soil, as well as compaction of groove backfilling and construction engineering backfilling. It is an ideal compaction equipment.
2. Equipped with high efficiency and energy-saving diesel engine, high power, strong power and high efficiency.
3. Oil and gas brake is adopted in the braking system to make the brake more reliable and portable, and hand brake is equipped for more convenient operation.
4. The mechanical hydraulic vibration and hydraulic steering have reliable performance and functions.
5. Hinged link, flexible steering, convenient and quick rotation.
6. Compact and reasonable structure, high configuration, good performance, reliable quality and high working efficiency.
7. Small investment, fast return, high reliability and easy maintenance.
技术参数：
Technical parameters:
| 型号/model | QA-40 |
| 工作质量/Quality of work | 4000 (kg) |
| 静线载荷/Static load line | 140 (N/cm) |
| 振动频率/The vibration frequency | 50 (Hz) |
| 激振力/Vibration force | 60 (KN) |
| 行走速度/Walking speed | 2/5 (km/h) |
| 爬坡能力/Climbing ability | 30 (%) |
| 转弯半径/Turning radius | 3000 (mm) |
| 外形尺寸/Overall dimensions | 3800×1450×2600 (mm) |
| 振动轮宽度/Vibration wheel width | 1300 (mm) |
| 振动轮直径/Vibration wheel diameter | 1000 (mm) |
| 轴距/The wheelbase | 2110 (mm) |
| 柴油机型号/Diesel engine model | C490BPG |
| 柴油机功率/Diesel power | 35 (kw) |
联系人：丁经理
手 机：13287207036
Contact person: manager ding
Hand machine: 13287207036
关于售后：
我们将提供完善的售后服务，一年质保，一年内出现任何问题，免费售后，另终生维修，免去您后顾之忧。
关于发货：
当天4点以前下订单，有现货当天发货，无现货情况下常规产品48小时以内确保发货，定制产品请与客服人员核实！
about after-sales service:
We will provide perfect after-sales service, one-year warranty, any problems within one year, free after-sales service, and lifetime maintenance, so as to avoid your worries.
about delivery:
Place the order before 4 o 'clock on the same **d deliver the goods on the same day if there is spot goods. If there is no spot goods, the regular products will be delivered within 48 hours.
