| 产地 | 山东 |
|---|---|
| 电流 | 220（A） |
| 工作电压 | 220V |
| 工作温度 | 15 |
| 认证 | IOS9001 |
| 衰减 | 其他 |
| 特性阻抗 | 其他 |
| 弯曲半径 | 其他 |
| 芯数 | 4 |
| 品牌 | 润煤 |
| 型号 | 其他 |
| 外壳颜色 | 黑色 |
| 传播速度 | 25 |
| 直流回路电阻 | 20 |
| 芯线材质 | 铝合金线 |
聚氯乙烯绝缘护套控制电缆
一、型号、名称及使用范围（见表1 ） Mode 1,name and application （seetable 1）
型号 Model | 名称 Name | 主要使用范围 Main appliacations |

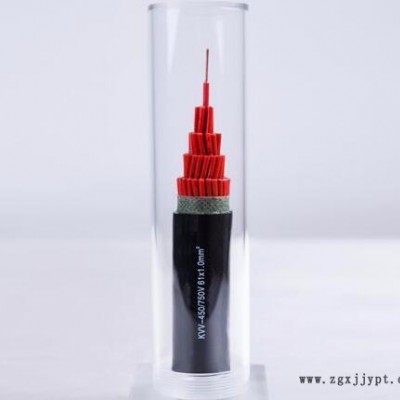

KVV
| 铜芯聚氯乙烯绝缘聚氯乙烯护套控制电缆 Copper conductor PVC insulated and sheathed control cable | 敷设在室内、电缆沟、管道等要求屏蔽的固定场合 For laying indoors,in trenches and in ducsts,Forfixed installation |
KVVP | 铜芯聚氯乙烯绝缘，聚氯乙烯护套编织屏蔽控制电缆 Copper conductor PVC Insulated&sheathed copper wire braiding sereened control cable | 敷设在室内、电缆沟、管道等要求屏蔽的固定场合 For laying indoors,in trenches and in ducsts,Forfixed installation |
KVVP2 | 铜芯聚氯乙烯绝缘聚氯乙烯护套铜带屏蔽控制电缆 Copper conductor PVC Insulated and sheathed control cable with copper tape shield | 敷设在室内、电缆沟、管道等要求屏蔽的固定场合 For laying indoors,in trenches and in ducsts,Forfixed installation |
KVV22 | 铜芯聚氯乙烯绝缘聚氯乙烯护套钢带恺装控制电缆 Copper conductor PVC Insulated and sheathed control cable with steel tape armmour | 敷设在室内、电缆沟、管道、直埋等承受较大机械外力的固定场合 For laying indoors,in trenches,in ducsts and in ground,able to withstand heavier mechanical rorce. and for fixed installation |
KVVR | 铜芯聚氯乙烯绝缘聚氯乙烯护套控制软电缆 Copper conductor PVC Insulated flexibe control cable | 敷设在室内移动要求柔软等场合 For laying indoors,movable and flexible |
KVV22 | 铜芯聚氯乙烯绝缘聚氯乙烯护套钢丝恺装控制电缆 Copper conductor PVC Insulated and sheathed control cable with steel wire armmour | 敷设在室内、电缆沟、管道、直埋等承受较大机械外力的固定场合 For laying indoors,in trenches,in ducsts and in ground,able to withstand heavier mechanical rorce. and for fixed installation |
ZR-KVVRP | 铜芯聚氯乙烯绝缘，聚氯乙烯护套编织屏蔽控制软电缆 Copper conductor PVC Insulated&sheathed copperwire braiding sereened fiexble co门trot cable | 敷设在室内移动要求柔软屏蔽等场合 Fixed laying indoors with capability of moving and screening |
ZR-KVV | 铜芯聚氯乙烯绝缘聚氯乙烯护套阻燃控制电缆 Copper conductor PVC Insulated and sheathed flame retardant control cable | 敷设在有阻燃要求的室内、电缆沟、管道等固定场合 For laying indoors,in trenches,in ducts,and forfixed installation, The cable should be flame retardance |
ZR-KVVP2 | 铜芯聚氯乙烯绝缘聚氯乙烯护套钢带屏蔽阻燃控制电缆 Copper conductor PVC Insulated and sheathed fameretardant control cable with copper tape shield | 敷设在有阻燃要求的室内、电缆沟、管道等固定场合 For laying indoors,in trenches,in ducts,and forfixed installation, The cable should be flame retardance |
ZR-KVV22 | 铜芯聚氯乙烯绝缘聚氯乙烯护套钢带销装阻燃控制电缆 Copper conductor PVC Insulated and sheathed flameretardant control cable with steel tape armour | 敷设在有阻燃要求的室内、电缆沟、管道、直埋等承受较大接卸外力固定场合 For laying indoors,in trenches,in ducts,and underground,The cable should be flameretardance and able to bear beaver extermal mechanical force.and forfixed installatin |
ZR-KVVR | 铜芯聚氯乙烯绝缘聚氯乙烯护套阻燃控制软电缆 Copper conductor PVC Insulated and sheathed rlameretardant flameretardant flexible control cable | 敷设在有阻燃要求的室内可移动柔软场合 For laying indoors,and the cable should be flame-retardant flexible and movable |
ZR-KVV32 | 铜芯聚氯乙烯绝缘聚氯乙烯护套钢带恺装阻燃控制电缆 Copper conductor PVC Insulated and sheathed flameretardant control cable with steel tape armour | 敷设在有阻燃要求的室内、电缆沟、管道、直埋等承受较大接卸外力固定场合 For laying indoors,in trenches,in ducts,and underground,The cable should be flameretardance and able to bear beaver extermal mechanical force.and forfixed installatin |
二、电缆结构材料及性能 Constructionsize and Properties of Cables
KVV 型，ZR-KVV 型 450/750V 铜芯聚氯乙烯绝缘聚氯乙烯护套控制电缆 《表格2-3》
Type KVV, ZR-KVV 450/750 Copper Conductor PVCInsulated and Sheathed Control Cable
KVVP2 型，ZR-KVVP2 型 450/750V 铜芯聚氯乙烯绝缘聚氯乙烯护套铜带屏蔽控制电缆 《表格4》
Type KVVP2, ZR-KVVP2 450/750Copper Conductor PVC Insulated and Sheathed Control Cable with CopperTapeShield
KVV22 型，ZR-KVV22 型 450/750V 铜芯聚氯乙烯绝缘聚氯乙烯护套钢带恺装控制电缆 《表格5》
Type KVV22, ZR-KVV22 450/750Copper Conductor PVC Insulated and Sheathed Control Cable with Steel TapeShield
KVVR 型 ZR-KVVR 型 450/750V 铜芯聚氯乙烯绝缘聚氯乙烯护套控制软电缆 《表格6》
Type KVVR,ZR-KVVR450/750V CopperConductor PVCInsulated and Sheathed Flexible Control Cable
KVV32 型，ZR-KVV32 型 450/750V 铜芯聚氯乙烯绝缘聚氯乙烯护套细钢丝恺装控制电缆 《表格7》
TYPE KVV32,ZR-KVV32 450/750VCopper Conductor PVC Insulated Sheathed Control Cable with Steel Wire Armed
