首页 > 供应产品 > DHS防尘密封圈
DHS防尘密封圈
产品: 浏览次数:233DHS防尘密封圈
品牌: 其他
单价: 面议
最小起订量: 1
供货总量:
发货期限: 自买家付款之日起 天内发货
有效期至: 长期有效
最后更新: 2022-12-20 00:41

详细信息

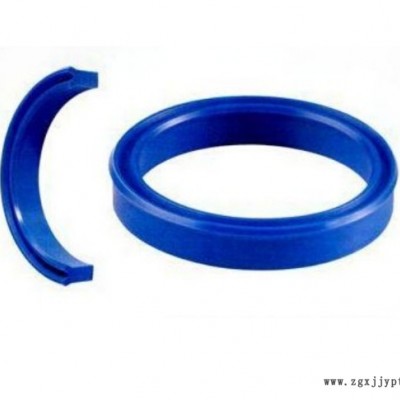

DHS防尘密封圈

DHS型:

带锐角边的双唇防尘密封件,外加一个安装在介质面的密封唇。

工作温度:-35度~+100度

往复速度:≤2m/s

介质:矿物油及油脂

作用:DHS型是双向作用的防尘圈,双向作用包括一方面刮除向里运动的活塞杆表面脏污,另一方面保留剩余油膜在下次向里运动时重新送入系统中。

用途说明
DH型双唇防尘圈的作用是防止粉尘、污物、砂粒及金属屑的进入。主要用于液压缸和气缸、



9x14x5/6.5 20x26x3.6/4.8 55x65x5/8 85x98x6/9
10x20x4/8 20x26x3.6/5 55x65x6/8 90x100x6/8
11.2x19.2x4.5/6 20x26x3/6 56x64x5/6.5 90x98x5/8
12x16x3/4 20x26x6/8 58x66x5/6.5 92x105x7/10
12x17x3.2/4.2 20x28x4.5/6 60x68x5/6.5 95x105x6/8
12x18x2.5/5 20x30x7/10 60x70x5.3/7.3 98x108x6/8
12x18x3.9/6 20x32x5/10 60x70x6/8 98x113x6/9
12x18x3.6/4.8 22x30x4.5/6 60x73x7/10 100x110x6/8
12x18x3.8/4.8 22x33.8x3/5 63x71x5/6.5 100x112x8/10
12x20x4.5/6 22.4x30.4x4.5/6 65x73x5/6.5 100x112x7/11
12.5x20.5x4.5/6 23.5x31.5x4.5/6 67x75x5/6.5 100x115x6/8.5
13x20x5/6.5 24x32x4.5/6 70x78x4/7 101.6x114.3x7/10
14x22x4.5/6 25x30x4.5/6 70x80x5/8 105x115x6/8
16x22x8/10 25x31x3.6/5 70x80x6/8 105x118x6/8
16x22x3.6/4.8 25x31x4/6 71x81x6/8 110x120x6/8
16x24x4.5/6 25x33x4.5/6 75x85x6/8 110x123x6/9
16x26x7/9.5 25x35x5.3/7 80x88x4/7 110x125x6/9
18x24x3.6/4.8 25x36.8x5/8 80x90x5/8 112x122x6/8
18x26x4.5/6 26x34x4.5/6 80x90x6/8 115x125x6/8
18x28x4/8 27x35x4.5/6 80x93x7/10 118x128x6/8
18.5x26x3.2/4 53x61x5/6.5 82.55x95.25x6.35/9.53 120x130x6/8
19x27x4.5/6 53x61x5/7 84x99x6.5/11 120x132.2x7.2/12
19.05x29.05x5.3/7 55x63x5/6.5 85x95x6/8 400x420x10/18
