控制系统 | PLC控制 |
---|---|
长径比 | 1:40 |
螺杆转速 | 0-300 |
加热方式 | 电加热 |
冷却装置 | 风冷/水冷(可选配) |
风机 | 1/4HP |
切粒机 | 切粒机 |
电源 | 3∮ac380v |
质保 | 一年 |
物流 | 陆运 |
别名 | 造粒机 |
产地 | 东莞 |
电动机功率 | 4kw |
锅体容积 | 1 |
加热功率 | 8控温 |
类别 | 造粒机 |
螺杆长度 | 1000mm |
螺杆直径 | 21.7mm |
切刀转速 | 35KG/H |
生产能力 | 1-10kg |
适用原料 | PVC |
售后服务 | 质保一年 |
外形尺寸 | 5000x600x1580mm |
销售方式 | 直销 |
用途 | 造粒 |
重量 | 500kw |
执行质量标准 | 国标 |
贸易属性 | ** |
发货期限 | 15天 |
品牌 | 锡华 |
型号 | XH-433-25 |
固定刀数量 | 2 |
螺杆数 | 双螺杆 |
旋转刀数 | 3把 |
回旋直径 | 40mm |
进料口直径 | 40mm |
滤筛板孔径 | 0 |
机器中心高 | 1000mm |
打样周期 | 以客户实验为准 |
质量认证 | ISO9001 |

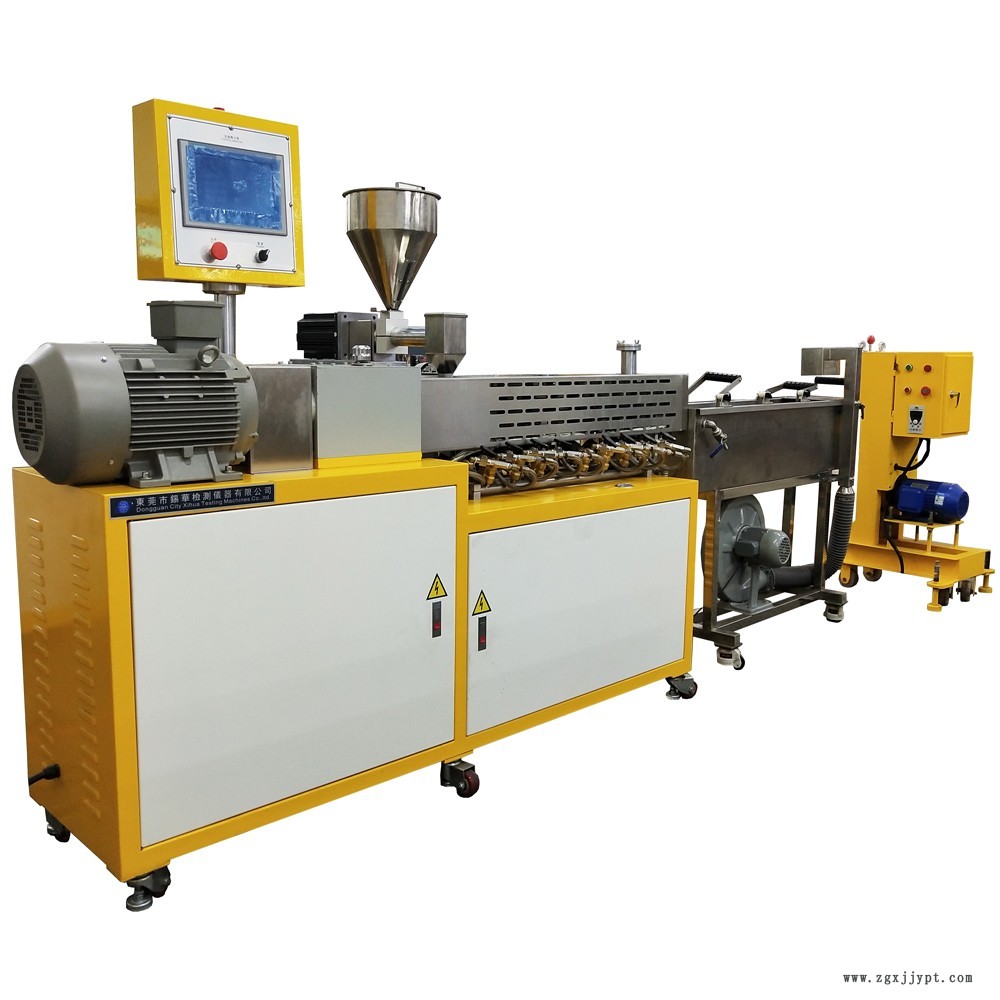

XH-433双螺杆实验型造粒线
XH-433 Twin screw experimental granulation line
简介:本机适合工程塑胶、改性塑胶、废旧塑胶、色母粒的混炼加工实验。具有均质、塑化着色、填充改性等功能。
Introduction: This machine is suitable for mixing and processing experiments of engineering plastics, modified plastics, waste plastics and masterbatches. It has homogeneous, plastic coloring, filling modification functions.
工作原理:本机通过加热、混合,剪切、塑化、压实排气作用下,物料塑化成均匀的熔体,并在双螺杆的挤压下,通过机头挤出圆形的条状料,经冷却水槽水冷后或者风冷后,再经切粒机切粒,得到塑胶粒料。
Working principle: Under the action of heating, mixing, shearing, plasticizing and compacting the exhaust, the material is plastified into a uniform melt, and extruded under the twin-screw and extruded through the nose into round strips. The long strips after being cooled by water in the cooling water tank or after being air-cooled, then pelletized by a pelletizer to obtain plastic pellets.
技术参数(Technical Parameters):
型号 Model No. | XH-433-25 | XH-433-40 |
控制系统 Control system | PLC控制 PLC control | PLC控制 PLC control |
产量(kg) Capacity | 约1-10kg/h根据工艺配方 1-10kg/h(decide by formula ) | 约60/h根据工艺配方 60/h(decide by formula ) |
螺杆直径 Screw diameter | 21.7mm或指定 21.7mm or customized | 40mm或指定 40mm or customized |
长径比 L/D | 1:40 | 1:48 |
螺杆转速rpm Screw speed | 0-300 | 50-500 |
冷却装置 Cooling device | 风冷/水冷(可选配) Air/water cooling (optional) | 风冷/水冷(可选配) Air/water cooling (optional) |
风机 Fan | 1/4HP | 3HP |
切粒机(原有切粒装置) Cutting device | 切粒机Granulator | 切粒机Granulator |
电源 Power Supply | 3∮,AC380 | 3∮,AC380 |

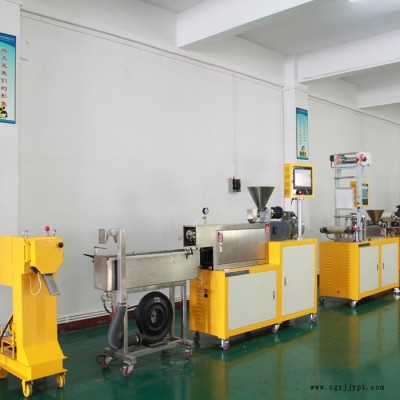

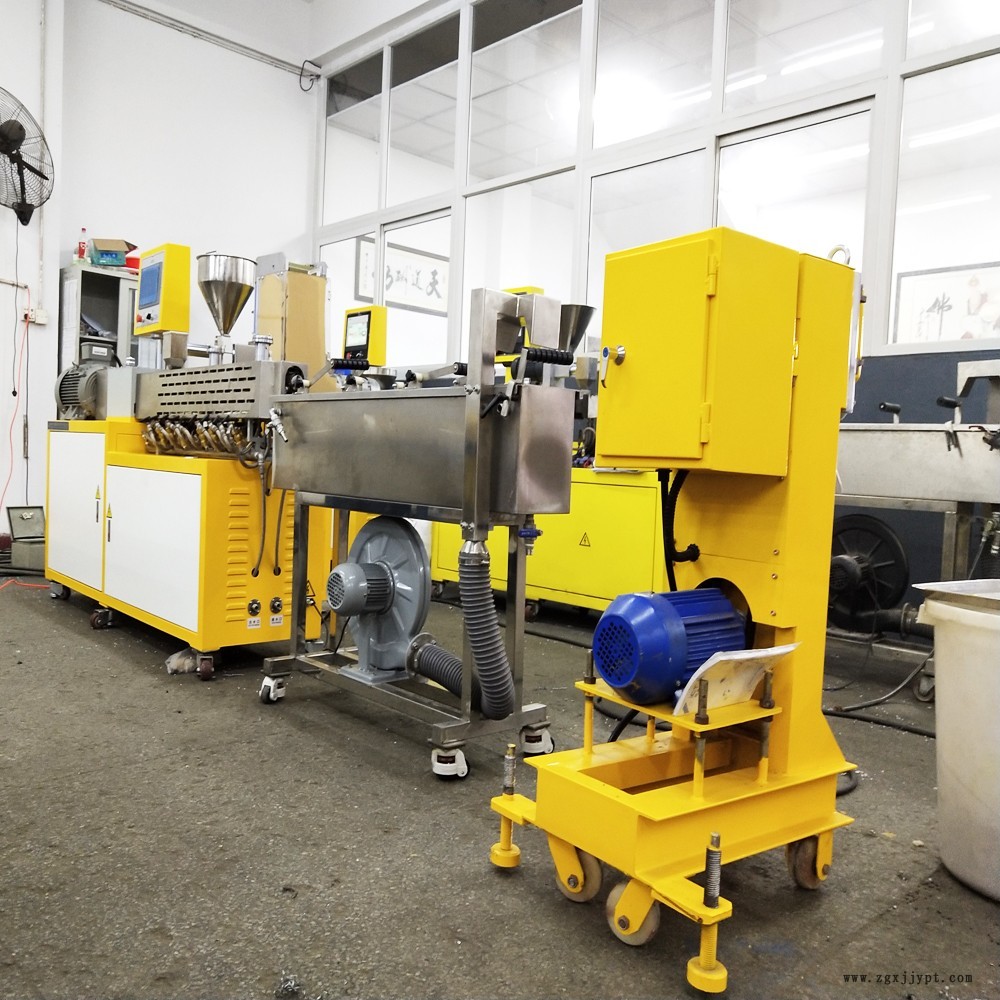

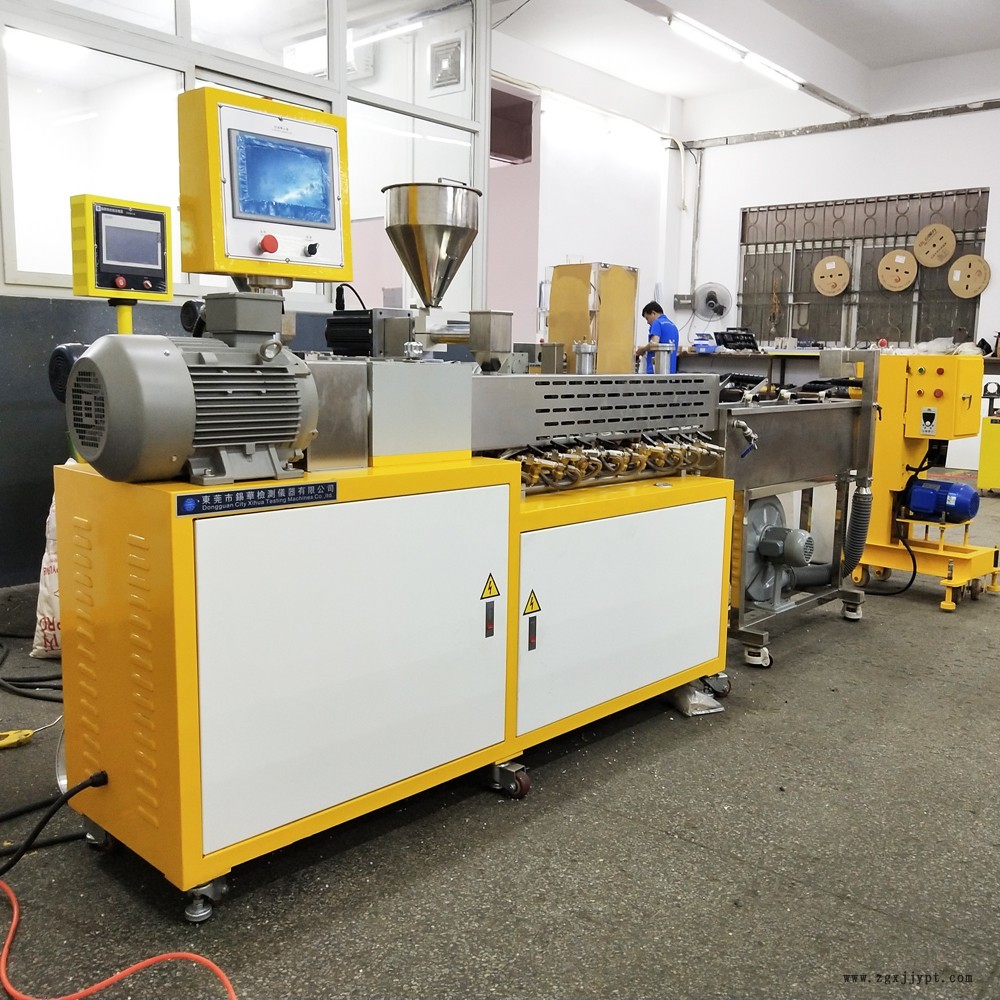

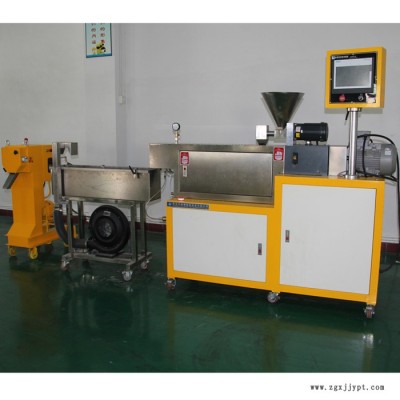

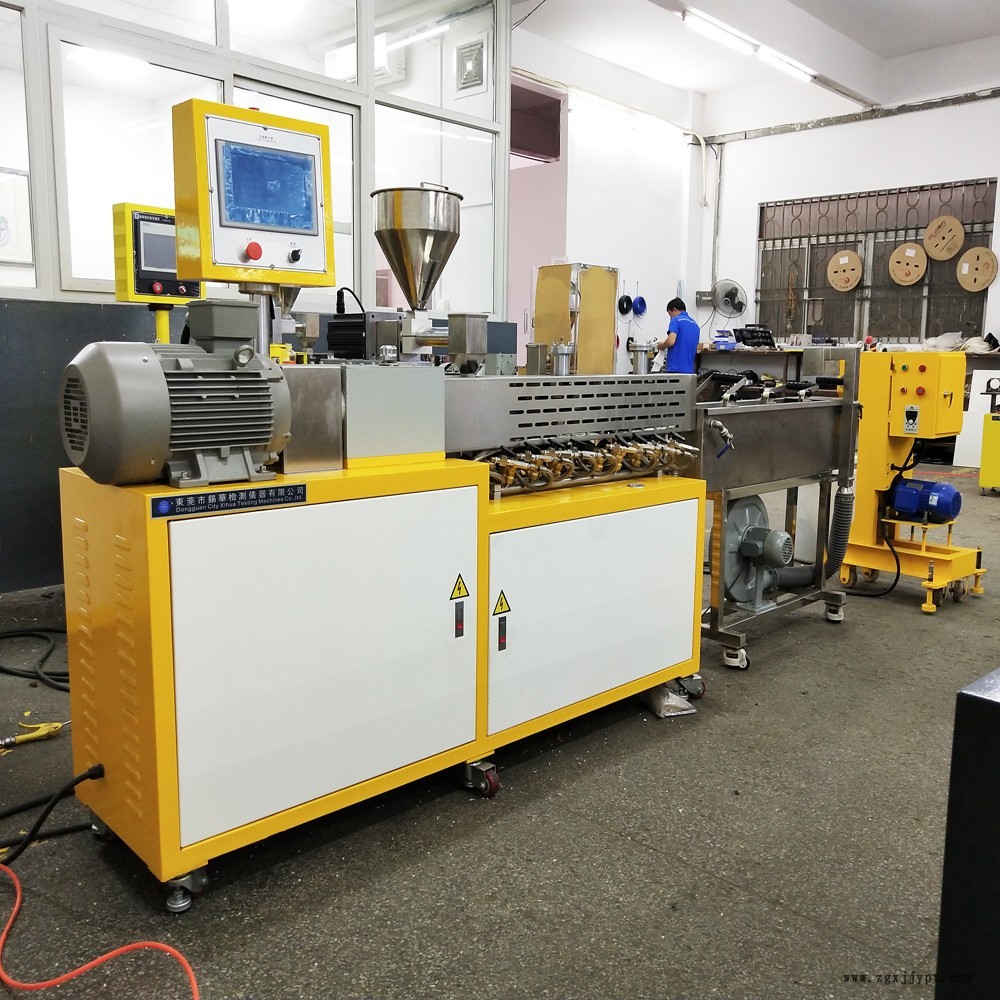

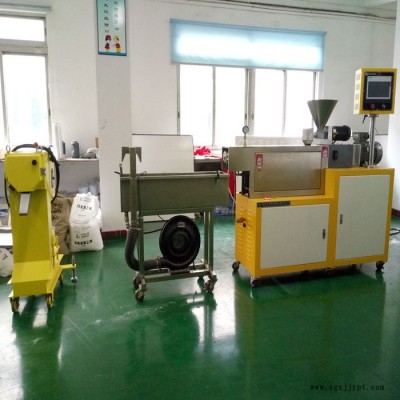

生产车间实拍大图:
