| 最大挤出机 | 25mm |
|---|---|
| 长径比 | 1：33 |
| 螺杆转速 | 0-95rpm |
| 加热方式 | 电加热 |
| 电源 | 3∮ac380v |
| 模头 | 衣架型 |
| 模唇宽度 | 300mm或指定 |
| 切边装置 | 切边刀 |
| 物流 | 陆运 |
| 包装 | 木箱 |
| 产地 | 东莞 |
| 螺杆直径 | 25 |
| 生产能力 | 1-10 |
| 售后服务 | 一年保修 |
| 外形尺寸 | 2350x800x1650 |
| 种类 | 片材挤出机 |
| 品牌 | 锡华 |
| 型号 | XH-432-1 |
| 螺杆数 | 单螺杆 |
| 可生产管材类型 | 流延膜 |
| 挤出直径 | 25mm |
XH-432 实验室流延薄膜机
XH-432 Laboratory cast film machine
简介：薄膜成型设备是针对高分子材料（塑料、橡胶）、塑料原材料、塑料加工等行业研究。可完成挤出、吹膜、压片、流延、拉伸、复合等成型加工实验。工艺齐全、功能扩展强大、操作简单方便，是橡塑行业的实验设备
Introduction: Film forming equipment is for the research of polymer materials (plastic、rubber), plastic raw materials, plastic processing and other industries. It can complete the extrusion, blown film, sheeting, casting, stretching, composite molding processing experiments together. The process is complete, the function is extended and powerful, the operation is simple and convenient. It is the best experimental equipment for the rubber and plastics industry.
工作原理：物料从料斗里放入经过挤出装置的塑化和挤出变为流延状态，再从主机经模头出来，通过两辊压延机进行压延。
Working principle: The material is put into the hopper, through plasticizing and extruding of the extruding device the material become cast state, and goes out through the die head, then rolled by the two-roll calender.
技术参数 (Technical Parameters)：
| 型 号 Model No. | XH-432-1 | XH-432-3 |
| 设备 Name | 单螺杆挤出机 Single screw extruder | 三层单螺杆挤出机 Three-layer single screw extruder |
| 螺杆直径 Screw diameter | ￠25或指定 ￠25 or customized | ￠25×3台 或指定 ￠25 or customized (3pcs) |
| 长径比 L/D | 1:33或指定 1:33 or customized | 1:33或指定 1:33 or customized |
| 螺杆转速 Screw speed | 0-95rpm变频调速0-95rpm Frequency | 0-95rpm变频调速 0-95rpm Frequency |
| 体积（mm)（W×D×H） Volume | 2350×800×1650mm | 2500×900×1750 |
| 重量(kg) Weight | 约500 about 500kgs | 约900 about 900kgs |
| 电 源 Power Supply | 3∮，AC380V | 3∮，AC380V |
| 模头 Die | 衣架型 Hanger type | 衣架型 Hanger type |
| 模唇宽度 Die lip width | 300mm或指定 300mm or customized | 300mm或指定 300mm or customized |
| 切边装置 Edge cutting device | 切边刀 Edge knife | 双切边，双收卷 Double trimming,double winding |

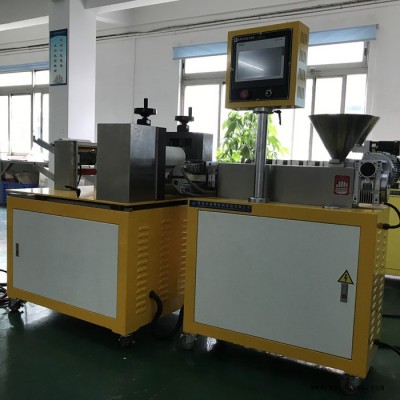

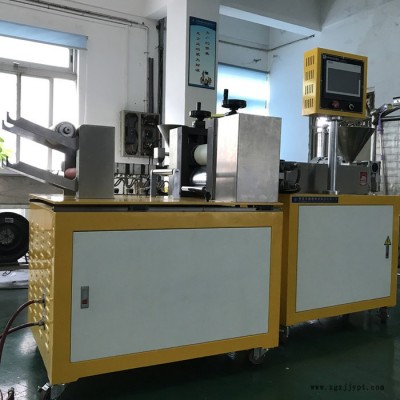

生产车间实拍大图：
