| 原产国/地区 | 美国 |
|---|---|
| 是否进口 | 是 |
| 订货号 | FLR1008ST-I |
| 货号 | FLR1008ST-I |
| 是否跨境货源 | 否 |
| 测量范围 | 请咨询 |
| 产地 | 美国 |
| 工作温度 | 请咨询 |
| 工作压力 | 请咨询 |
| 公称通径 | 请咨询 |
| 精度等级 | 请咨询 |
| 类型 | 容积式流量计 |
| 适用介质 | 请咨询 |
| 品牌 | Omega/欧米茄 |
| 型号 | FLR1008ST-I |
| 加工定制 | 否 |

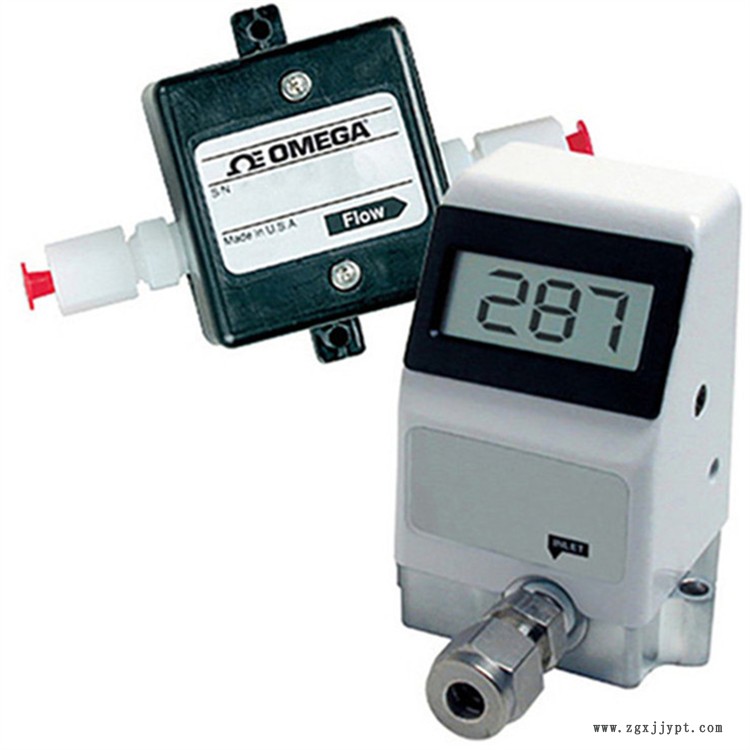

FLR1008ST-I/FLR1009ST-I/FLR1010ST-I/FLR1011ST-I流量计OMEGA
Flr1000 series uses impact turbine to determine gas flow rate. The turbine speed is linear in a large dynamic range. The photoelectric system consists of a diode that emits infrared light. Light energy is alternately reflected and absorbed by "spokes" deposited on small turbines. A photodiode is used to detect the reflected light energy. Therefore, when the turbine rotates under the action of gas velocity, the circuit will produce electric pulse. The signal processing circuit can provide DC voltage output proportional to the flow rate. For example, the output signal is 1.0 VDC at 20% of the rated flow rate, 2.5 VDC at 50% of the rated flow rate, 4.0 VDC at 80% of the rated flow rate, and 5.0 VDC at the rated flow rate. The sensor can handle a flow rate 20% higher than the rated flow rate without damage.
