首页 > 供应产品 > Ball Lok® Quick Release Pi
Ball Lok® Quick Release Pi
产品: 浏览次数:868Ball Lok® Quick Release Pi
类别: 见参数
标准类型: 德标
单价: 面议
最小起订量: 1 件
供货总量: 1000000000 件
发货期限: 自买家付款之日起 天内发货
有效期至: 长期有效
最后更新: 2022-01-20 18:43

详细信息
类别 见参数
标准类型 德标
标准编号 DIN6885
公称直径 4.7-20(mm)
表面处理 氧化发黑
材料等级 US304
应用范围 机械工业用紧固件
加工定制
样品或现货 现货
品牌 见参数
型号 T B Q








Avibank is the world’s largest producer of Quick Release Pins and fastening devices working on the principle of locking balls. Our Ball-Lok® Quick Release Pins come in a variety of materials and designs. Single Acting Quick Release Pins are positive locking pins that require a push of the button to release the balls.







Double Acting Quick Release Pins are positive locking Ball-Lok® Quick Release Pins that require a push or pull of the button to release the balls.





Detent Pins are Quick Release Pins that offer a non-positive lock that simply pushes in and pulls out of the application. Spring loaded balls perform impedance locking.

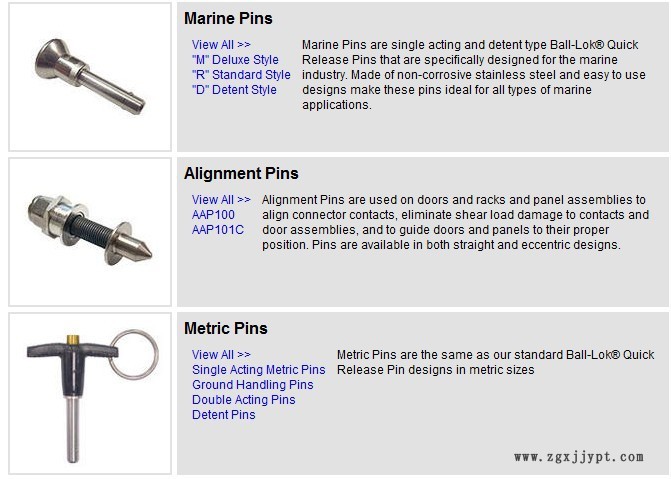

Marine Pins are single acting and detent type Ball-Lok® Quick Release Pins that are specifically designed for the marine industry. Made of non-corrosive stainless steel and easy to use designs make these pins ideal for all types of marine applications.





Metric Pins are the same as our standard Ball-Lok® Quick Release Pin designs in metric sizes
