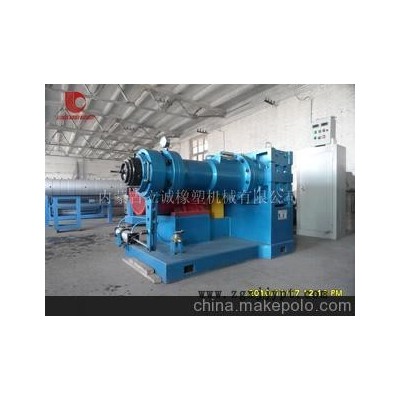

 用途：用于一般的胶管、轮胎、胶条等橡胶制品的挤出。         Used for extruding rubber hose , type , rubber strip etc . 结构简介：    该机由机身、机头、减速机、电机、等组成。螺杆和衬套采用优质氮化钢38CrMoALA制造，耐磨性极高。螺纹形式为等深不等距双头收敛式结构，机身为铸钢材质，主轴承采用9039系列，大大提高承载能力，延长使用寿命。It is composed of machine body , head , decelerator , motor etc . Both the screw and bush are made of 38CrMoALA high quality nitrided steel and have good abrasive resistance . The screw has double thread with equal depth , inequidistant and convergent pitch .. The maching body is made of cast steel . The load-bearing capability and life are improved greatly by using 9039 series of primary bearing . 主要性能参数：Specifications  型号Type螺杆直径ScrewDiameter(mm)螺杆长径比L/D螺杆转速Revolving Speed of Screw(r/min)生产能力ProductiveCapability（Kg/h）XJ-90Ф901：5.387.5-75280XJ（L）-115Ф1151：4.820/30/40/60420XJ-150Ф1501：4.625-75920XJL-150Ф1501：5.240520
使用动力：（XJ-115）主电机：   YD200L-4/6                        功率22/18.5 kw                 转速1450/980r/min            电压380V 其他电机：/                                         功率   /                       转速                                     电压 蒸汽：   供机头、机身、螺旋3段  压力  0.4 MPa         消耗量             For head，body＆screw   压缩空气：/                               压力                       消耗量 冷却水： 供机头、机身螺旋3段     压力  0.15MPa          消耗量             For head，body＆screw    压力水：  /                                压力                       消耗量 过热水：  /                                 压力                       消耗量 生产能力：420 Kg /h                    人员配备1-2人
重量（Kg）2300 外形尺寸（mm）：    1450×720×1280 制造单位： 内蒙古立成橡胶机械有限公司
