材质 | 钢塑 |
---|---|
产地 | 山东 |
规格 | 定制 |
用途 | 道路铺装 |
分类 | 土工格栅 |
品牌 | 文丰世通 |
长宽 | 定制 |
格栅种类 | 单/双向格栅 |
产品介绍:
土工格栅系列
Geogrid Series
土工格栅分为:玻纤格栅、涤纶格栅、钢塑格栅、PP焊接格栅、单向拉伸塑料土工格栅、双向拉伸塑料土工格栅。
Geogrid is divided into: Fiberglass geogrid, Polyester geogrid, Steel plastic geogrid, PP weld geogrid, Uni-direction Plastic geogrid, Bia-direction Plastic geogrid.

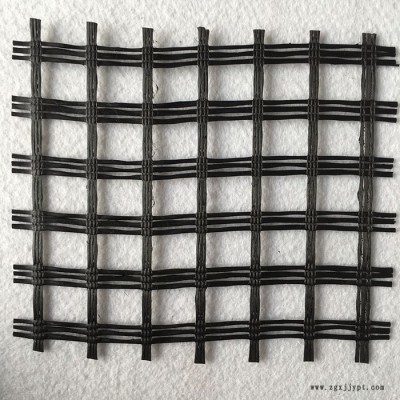

玻纤格栅技术参数
Technical data of Fiberglass geogrid
规格 Specification | EGA25-25 | EGA30-30 | EGA40-40 | EGA50-50 | EGA80-80 | …… | EGA400-400 | |
强度(KN/m) Strength | 纵向MD | 25 | 30 | 40 | 50 | 80 | …… | 400 |
横向TD | 25 | 30 | 40 | 50 | 80 | …… | 400 | |
断裂伸长率 Break elongation % | ≤3 | |||||||
网格(mm) Grid | 12.7×12.7 25.4×25.4 | |||||||
幅宽(m)Width | 1-6 |

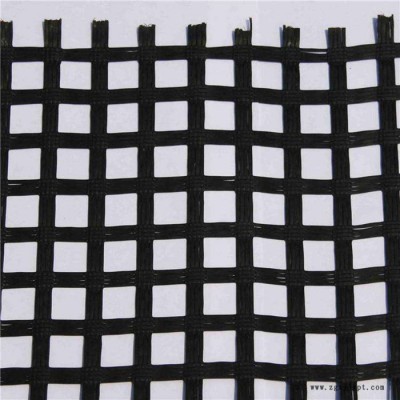

涤纶格栅技术参数
Technical data of Polyester geogrid
规格 Specification | PET20-20 | PET30-30 | PET100-100 | PET120-120 | PET200-200 | PET400-400 | PET600-600 | |
强度(KN/m) Strength | 纵向MD | 20 | 30 | 100 | 120 | 200 | 400 | 600 |
横向TD | 20 | 30 | 100 | 120 | 200 | 400 | 600 | |
延伸率 Stretching ratio % | 13% | |||||||
网格(mm) Grid | 12.7×12.7 25.4×25.4 | |||||||
幅宽(m)Width | 1-6 |

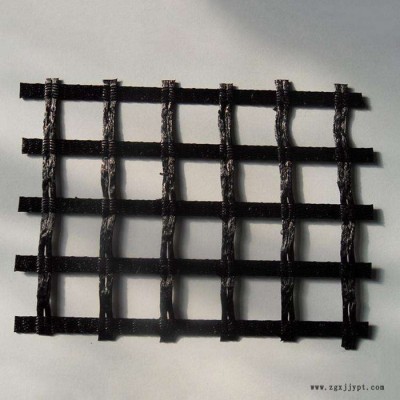

钢塑土工格栅技术参数
Technical data of Steel Plastic geogrid
项目Item | GSZ30-30 | GSZ40-40 | GSZ50-50 | GSZ60-60 | GSZ80-80 | GSZ100-100 | GSZ125-125 | GSZ150-150 | |
每延米破断拉力KN/m ≥ Each linear meter breaking force | 纵MD | 30 | 40 | 50 | 60 | 80 | 100 | 125 | 150 |
横TD | 30 | 40 | 50 | 60 | 80 | 100 | |
