| 品牌 | Flexitallic |
|---|---|
| 型号 | SIGMA 600 |
| 材质 | 无石棉密封材料 |
| 截面形状 | 根据客户需求 |
| 性质 | 耐高温,耐高压,耐腐蚀,耐磨损 |
| 是否进口 | 是 |
| 适用范围 | 汽车,门窗,电器,轴承,泵 |
| 作用 | 固定密封 |

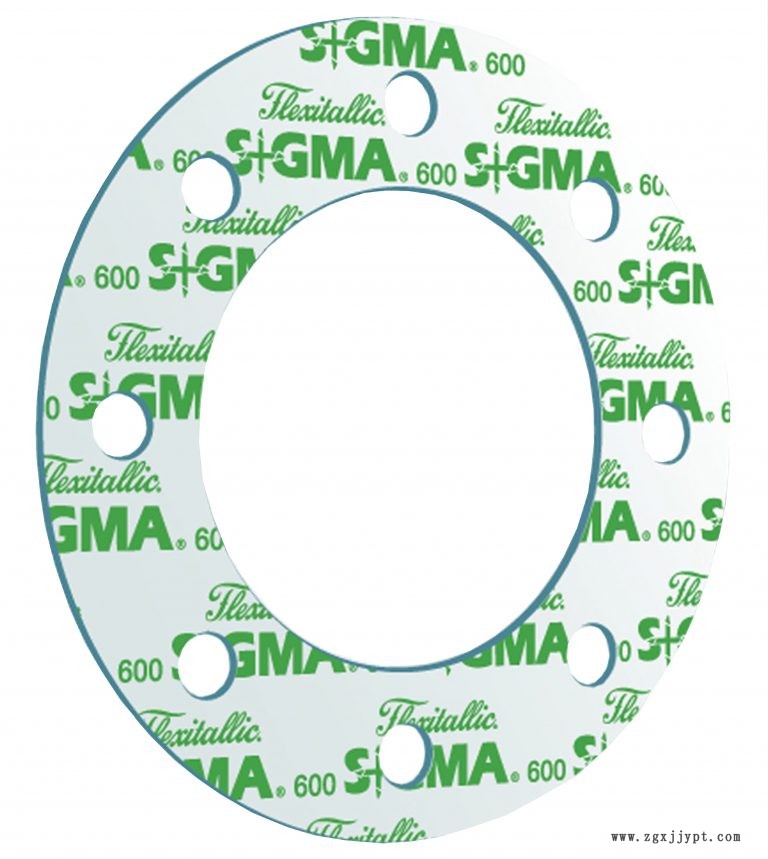

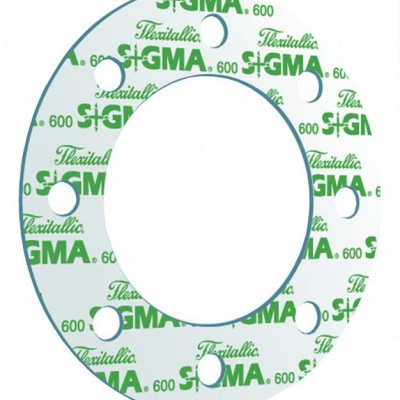

SIGMA 600 SHEET MATERIAL (PTFE)
Sigma 600 is a high performance biaxially orientated PTFE sheet sealing material with enhanced, low stress sealing characteristics.
Developed specifically for petrochemical and chemical use. FDA compliant for both low and high bolt loads. Is non contaminating with lower creep an cold flow.
A single gasket replacement for metallic and non-metallic flange applications.
Approval FDA, FDA Compliant, TA Luft, WRAS
Brand Sigma
Flange Face Flat, Raised
Maximum Temperature 260°C / 500°F
Media Hazardous
Minimum Temperature -200°C / -328°F
Pressure 51 Bars / 739.69 PSI
Pressure Class 150 & 300
Pressure Rating PN PN40
SIGMA 600 SHEET MATERIAL (PTFE)
Sigma 600是一种高性能双轴定向ptfe板密封材料，具有增强、低应力的密封特性。
专门为石化和化学用途开发的。fda适用于低和高螺栓负载。是不污染与低蠕变的冷流。
用于金属和非金属法兰应用的单垫圈更换。
批准fda，fda合规，luft，wras
品牌西格玛
法兰面扁平，凸起
高温度260°c/500°f
危险的媒介
低温度-200°C/-328°f
压力51巴/739.69 psi
150&300压力级
压力等级pn 40
