- 品牌/型号：阳明胶片冷却机/XG-600-75L
- 重量：12000（kg）kg
- 型号：XG-600-75L
- 加工定制：是
- 品牌：阳明胶片冷却机
无
胶片冷却机其速度随主机（挤出机或开炼机）的出片速度自动或手动调整；速度为20 mt /min，变频调速。
Speed is with the main machine (roll millor mixer) or adjusted by hand, speed is 40m/min, frequency adjust.
设备用途：胶片冷却机与挤出压片机或压片机配套使用，用于将55L---110L型密炼机排下的胶料经压片后进行浸涂隔离剂、冷却吹干、叠（切）片存放。
Use scope: cooperator use with extruder, to cool, apply anti-tack and slice the batch from 55L ---110Lmixer.
具有接取、打印、纵裁、喷淋、浸涂隔离剂、提升挂片、步进风冷、出片摆片、切片等功能。
The system shall include all equipment required for conveying, marking, slitting, cooling, drying, applying anti-tack, and stacking mixed rubber slab stock. This will be complete form the slab open mill to the slab stacking devices.

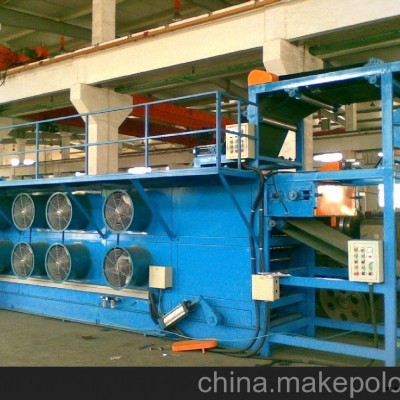

悬挂式胶片冷却装置（挂胶冷却输送装置）Swing type batch off including:
分段组装式，斜坡下来的胶片在挂链架上一档一档储存挂起，使胶片冷却干燥。全封闭一侧装有冷却用轴流风机，风机垂直面或倾斜3°-5°在一侧吹风，快速把胶片上的隔离剂吹干。另一侧装有排气通风口两端各装有一个检查门，箱内装有照明，受检查门控制开关，箱底（链板上侧）铺有活动地板，便于维修。
Sectionalized type, batch hanged part by part in the hanger is easy to cool and dry. On the other side install fans enclosed, vertical angle of fan or incline angle is 3°-5°, which can dry the batch quickly. Opposite side install the exhaust intakes with two check door in both sides. It is for maintenance for the door is open by control and with light inside.
