额定电流 | 1.5 |
额定电压 | 125 |
环境温度 | -40+80 |
品牌 | 天睦 |

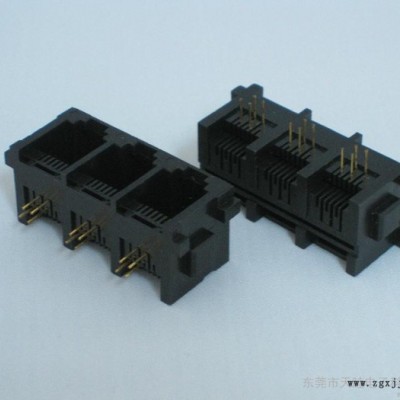

型号 | 弯插90度 6P4C 1X3 PBT 镀金FU 带边 |
加工定制 | 是 |
孔位数 | 8 |
质量认证 | iso9001 |
额定电流 | 1.0(A) | 额定电压 | 125(V) |
环境温度 | -40-85(℃) | 壳体材质 | 铜 |
导电体材质 | 磷青铜镀金 | 产品认证 | UL |
MATERIAL1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、 NYLON2. HOUSING COLOR : BLACK OR OTHERS3. Co
nTACT MATERIAL : PHOSPHOR BRo
nZE φ0.46mm4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATINGTHICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"5. SHIELD : 0.20 THICKNESS BRASS WITH NICKEL PLATED6. LED : OPTION SPECIFICATIONS ELECTRICAL1. VOLTAGE RATING: 125 VAC RMS.2. CURRENT RATING: 1.5 AMP3. Co
nTACT RESISTANCE: 30 MILLIOHMS MAX.4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500 VDC5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTEMECHANICAL1. DURABILITY : 750 CYCLES MIN2. PCB RETENTION PRE-SOLDER: 1 LB MINENVIRONMENTAL1. STORAGE :-40℃~80℃2. OPERATION: 0℃~70℃
