| 宽度 | 530（mm） |
|---|---|
| 拉伸性能 | 100 |
| 透气性 | 100 |
| 型号 | E-Type |
| 厚度 | 0.015（mm） |
| 材质 | PEI |
| 产地 | 日本 |
| 产品认证 | CCC |
| 厂家 | 日本三菱 |
| 牌号 | PE-1 |
| 执行标准 | 日规 |
| 用途级别 | 汽车部件 |
| 品牌 | 三菱 |
| 加工定制 | 否 |
| 厂家(产地) | MITSUBISHI （日本） |
| 加工级别 | 压延 |
| 特性级别 | 阻燃级 |
| 规格级别 | 玻纤增强 |

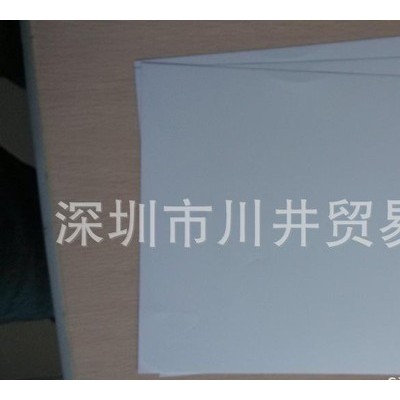

MITSUBISHI/三菱 E-Type/F-Type
Thermoplastic High Heat-resistant Engineering Plastics Film 耐高温工程塑料
SUPERIO-UT
SUPERIO-UT is a high heat-resistant engineering plastic films developed with Mitsubishi Plastics’ film-forming technology using ULTEM (Polyether
-imide resin) of GE Plastics (USA).
SUPERIO-UT是以SABIC的ULTEM(Polyether-imide)为原料，采用三菱树脂独特的压膜技术，开发出来的一款耐高温工程塑料薄膜。
There are two types of product, conventionally ‘E-type’, and new product ‘F-type’. F-type is superior to E-type in solvent and heat resistance under the
stress. It is a heat-resistant insulation material that lends itself to use for the applications that are required solvent resistance.
目前有两种型号"E-TYPE"和"F-TYPE"。"F-TYPE"的耐温性能及耐腐蚀性更优于"E-TYPE"
Characteristics 特性
1.Acquired UL-94V-0, VTM-0 with non-halogen
完全非卤的阻燃材料并且取得了UL-94 V-0/VTM-0认证
2.Mechanical properties 机械性能
－Excellent mechanical properties as an engineering plastics. (High tensile strength, crack-resistant)
**的机械性能的工程塑料。 （抗拉强度高，抗裂）
3. Electrical properties 电气性能
－Stable electrical properties (good low frequency characteristic and low temperature dependence)
稳定的电气特性（良好的低频特性和低温的依赖）
4. Heat resistance 耐热性
－ Superior Glass transition temperature among the thermoplastic resin which is 200℃ or more.
玻化温度在200℃以上
－ When heated up to 210℃, change in dimens ion is small.
在加热到210℃以上的情况下，依然可以保持良好的尺寸稳定性。
5. Chemical resistance 耐化学腐蚀性
－Excellent chemical resistance against aliphatic hydrocarbons, acid and dilute alkali.
**的耐化学性(脂肪烃，酸和稀碱)。
Especially, F-type has high chemical resistance against Polar solvent.
特别是F型具有很高的耐化学性对极性溶剂。
6. Weathering resistance 耐候性
－Good ultraviolet resisting property
良好的抗紫外线性能。
■Applications 应用
1. Diaphragm for Speaker
手机受话器的振动膜
2. Insulating material 绝缘材料
-Moters 马达
-Transformers 变压器
-Generators 发电机
3.Circuit Bord 线路板
-Membrane switches 薄膜开关
-Connectors 连接器
4.Heat resistant label and tapes
耐高温标签及胶带
■Specifications 规格
