| 产品认证 | UL |
|---|---|
| 额定电流 | 1.0（A） |
| 额定电压 | 150（V） |
| 环境温度 | -40~80（℃） |
| 开关类型 | 无 |
| 壳体材质 | PBT |
| 导电体材质 | 铜 |
| 品牌 | 兴伸展电子 |
| 型号 | 8P8C |
| 加工定制 | 是 |

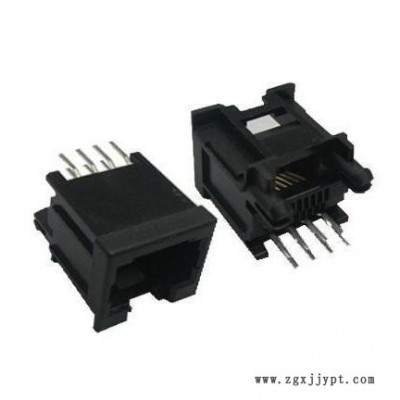

单口直插网络插座,全塑,扁针,镀金3U"
MATERIAL
1. HOUSING MATERIAL : GLASS FILLED PLYESTER UL94V-0PBT、 NYLON
2. HOUSING COLOR : BLACK OR OTHERS
3. CONTACT MATERIAL : PHOSPHOR BRONZE φ0.46mm
4. PLATING: GOLD PLATING OVER NICKEL.GOLD PLATING
THICKNESS 1.5u"/3u"/6u"/15u"/30u"/50u"
5. SHIELD : 0.20 THICKNESS BRASS WITH NICKEL PLATED
SPECIFICATIONS
ELECTRICAL
1. VOLTAGE RATING: 125 VAC RMS.
2. CURRENT RATING: 1.0 AMP
3. CONTACT RESISTANCE: 30 MILLIOHMS MAX.
4. INSULATION RESISTANCE : 500 MEGOHMS MIN @500 VDC
5. DIELECTRIC WITHSTANDING RESISTANCE: 1000 VAC RMS.50Hz 1MINUTE
MECHANICAL
1. DURABILITY : 750 CYCLES MIN
2. PCB RETENTION PRE-SOLDER: 1 LB MIN
ENVIRONMENTAL
1. STORAGE :-40℃~80℃
2. OPERATION: 0℃~70℃
