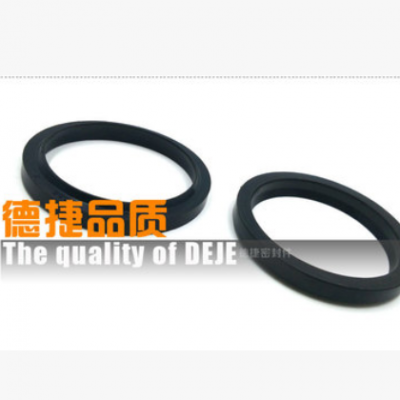

| 用途： | P6型橡胶防尘圈，用于液压油缸端口处的防尘。 | |
| 材质： | NBR90/丁腈橡胶
| |
| ||
| 温度： | ﹣30℃ 至 +100℃ | |
| 介质： | 石油基液压油、乳化液、环保安全液压油（水乙二醇液压油、油-水乳化型液压油）、水、空气。 | |
| 压力： | ≤MPa
| |
| ||
| 标准： | 德国Freudenberg Simrit Merkel标准 | |
| 标示： | P6-50*60.6*5.3/7
| |
| 型号 | d | D1 | h | S | H | B |
| P6-10 | 10 | 14 | 4 | 11.8 | 3 | 2.2 |
| P6-18 | 18 | 16.6 | 7 | 21 | 5.3 | 2.2 |
| P6-20 | 20 | 28.6 | 7 | 23 | 5.3 | 2.2 |
| P6-22 | 22 | 30.6 | 7 | 25 | 5.3 | 2.2 |
| P6-25 | 25 | 33.6 | 7 | 28 | 5.3 | 2.2 |
| P6-28 | 28 | 36.6 | 7 | 31 | 5.3 | 2.2 |
| P6-30 | 30 | 38.6 | 7 | 33 | 5.3 | 2.2 |
| P6-32 | 32 | 40.6 | 7 | 35 | 5.3 | 2.2 |
| P6-35 | 35 | 43.6 | 7 | 38 | 5.3 | 2.2 |
| P6-36 | 36 | 44.6 | 7 | 39 | 5.3 | 2.2 |
| P6-38 | 38 | 46.6 | 7 | 41 | 5.3 | 2.2 |
| P6-40 | 40 | 48.6 | 7 | 43 | 5.3 | 2.2 |
| P6-42 | 42 | 50.6 | 7 | 45 | 5.3 | 2.2 |
| P6-45 | 45 | 53.6 | 7 | 48 | 5.3 | 2.2 |
| P6-45 | 45 | 55.6 | 7 | 48 | 5.3 | 2.2 |
| P6-50 | 50 | 58.6 | 7 | 53 | 5.3 | 2.2 |
| P6-50 | 50 | 60.6 | 7 | 53 | 5.3 | 2.2 |
| P6-55 | 55 | 65.6 | 7 | 58 | 5.3 | 2.2 |
| P6-56 | 56 | 66.6 | 7 | 59 | 5.3 | 2.2 |
| P6-60 | 60 | 70.6 | 7 | 63 | 5.3 | 2.2 |
| P6-63 | 63 | 73.6 | 7 | 66 | 5.3 | 2.2 |
| P6-65 | 65 | 75.6 | 7 | 68 | 5.3 | 2.2 |
| P6-70 | 70 | 80.6 | 7 | 73 | 5.3 | 2.2 |
| P6-75 | 75 | 87.2 | 12 | 81 | 7.2 | 3.2 |
| P6-80 | 80 | 92.2 | 12 | 86 | 7.2 | 3.2 |
| P6-85 | 85 | 97.2 | 12 | 91 | 7.2 | 3.2 |
| P6-90 | 90 | 102.2 | 12 | 96 | 7.2 | 3.2 |
| P6-95 | 95 | 107.2 | 12 | 101 | 7.2 | 3.2 |
| P6-100 | 100 | 112.2 | 12 | 106 | 7.2 | 3.2 |
| P6-110 | 110 | 122.2 | 12 | 116 | 7.2 | 3.2 |
| P6-110 | 110 | 125 | 14 | 117.6 | 9.5 | 3.2 |
| P6-114 | 114 | 126 | 15 | 120.5 | 8 | 3.2 |
| P6-115 | 115 | 127.2 | 12 | 121 | 7.2 | 3.2 |
| P6-120 | 120 | 132.2 | 12 | 126 | 7.2 | 3.2 |
| P6-125 | 125 | 140 | 16 | 132.6 | 10.2 | 4 |
| P6-130 | 130 | 145 | 16 | 137.6 | 10.2 | 4 |
| P6-140 | 140 | 155 | 16 | 147.6 | 10.2 | 4 |
| P6-150 | 150 | 162 | 12 | 156 | 7.5 | 4 |
| P6-150 | 150 | 165 | 16 | 157.6 | 10.2 | 4 |
| P6-160 | 160 | 175 | 16 | 167.6 | 10.2 | 4 |
| P6-170 | 170 | 185 | 16 | 177.6 | 10.2 | 4 |
| P6-180 | 180 | 200 | 18 | 190 | 10.2 | 4 |
| P6-190 | 190 | 210 | 18 | 200 | 10.2 | 4 |
| P6-200 | 200 | 220 | 18 | 210 | 10.2 | 4 |
| P6-210 | 210 | 230 | 18 | 220 | 10.2 | 4 |
| P6-220 | 220 | 240 | 18 | 230 | 10.2 | 4 |
| P6-230 | 230 | 250 | 18 | 240 | 10.2 | 4 |
| P6-240 | 240 | 260 | 18 | 250 | 10.2 | 4 |
| P6-250 | 250 | 270 | 18 | 260 | 10.2 | 4 |
| P6-260 | 260 | 280 | 18 | 270 | 10.2 | 4 |
| P6-270 | 270 | 290 | 18 | 280 | 10.2 | 4 |
| P6-280 | 280 | 300 | 18 | 290 | 10.2 | 4 |
| P6-300 | 300 | 320 | 18 | 310 | 10.2 | 4 |
| P6-310 | 310 | 330 | 18 | 320 | 10.2 | 4 |
| P6-320 | 320 | 340 | 18 | 330 | 10.2 | 4 |
| P6-340 | 340 | 360 | 18 | 350 | 10.2 | 4 |
| P6-350 | 350 | 370 | 18 | 360 | 10.2 | 4 |
| P6-360 | 360 | 380 | 18 | 370 | 10.2 | 4 |
| P6-400 | 400 | 420 | 18 | 410 | 10.2 | 4 |
| P6-420 | 420 | 440 | 18 | 430 | 10.2 | 4 |
| P6-450 | 450 | 470 | 18 | 460 | 10.2 | 4 |
| P6-480 | 480 | 500 | 18 | 490 | 10.2 | 4 |
| P6-500 | 500 | 520 | 18 | 510 | 10.2 | 4 |
| P6-520 | 520 | 540 | 18 | 530 | 10.2 | 4 |
| P6-550 | 550 | 570 | 18 | 560 | 10.2 | 4 |
| P6-560 | 560 | 580 | 18 | 570 | 10.2 | 4 |
| P6-600 | 600 | 620 | 18 | 610 | 10.2 | 4 |
