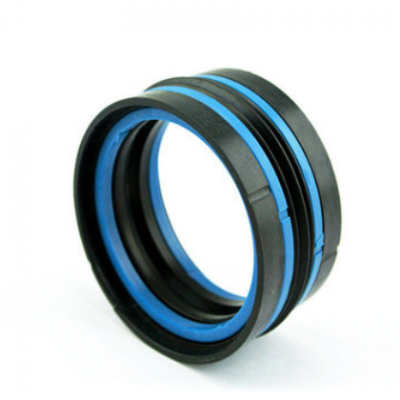

| ·用途：KDAS型组合密封圈是一种双向作用活塞专用密封。由一个NBR弹性体密封环、两个开切口聚氨酯弹性体挡圈和两个开切口POM导向环组合而成。密封圈在静态和动态下都具有优良的密封效果，而挡圈可以防止NBR密封环被挤入密封间隙，导向环对活塞在缸桶内运行时起导向作用并可以吸收径向力。这种设计提供了一种紧凑的密封、挡圈和导向的组合，可用于开式和闭式沟槽。 KDAS型组合密封在安装时按下列顺序进行“NBR密封环--挡圈--导向环”。应注意，导向环和挡圈的接触点（间隙）配置成交错的位置。·材质：NBR+TPU+POM·温度：-30℃~+100℃·介质：矿物液压油、抗燃液压油、HFA、HFB、HFC（小于40℃）。·压力：≤35MPa·标准：德国特瑞宝TRELLEBORG·标示：KDAS-200*175*50.8 |
|
|
|
| 型号沟槽尺寸Ddd1LLD1KDAS-25*15*20.525152212.5423KDAS-25*15*29.1251521.4516.46.3523.5KDAS-25*16*17.725162213.52.124KDAS-28*19*17.728192513.52.127KDAS-30*21*17.730212713.52.129KDAS-32*22*20.732222815.52.631KDAS-32*22*29.1322228.516.46.3530.5KDAS-32*24*21.932242815.53.231KDAS-35*25*20.735253115.52.634KDAS-35*25*29.1352531.416.46.3533.5KDAS-40*24*31.1402435.418.46.3538.5KDAS-40*26*20.740263615.52.639KDAS-40*30*19.3403035.411.3439KDAS-40*30*20.540303712.5439KDAS-40*30*29.1403035.416.46.3538.5KDAS-42*28*20.742283815.52.641KDAS-45*29*31.1452940.418.46.3544KDAS-45*31*20.745314115.52.644KDAS-45*35*29.1453540.416.46.3543.5KDAS-50*34*31.1503445.418.46.3548.5KDAS-50*34*26.750344620.53.149KDAS-50*38*28.950384620.54.248.5KDAS-55*39*31.1553950.3618.46.3553.5KDAS-55*39*26.755395120.53.154KDAS-56*40*26.756405220.53.155KDAS-60*44*31.1604455.418.46.3558.5KDAS-60*44*26.760445620.53.159KDAS-60*48*28.960485620.54.258.5KDAS-63*47*31.1634758.418.46.3561.5KDAS-63*47*32.1634758.419.46.3561.5KDAS-63*47*26.763475920.53.162KDAS-63*51*28.965515920.54.261.5KDAS-65*49*26.765496120.53.164KDAS-65*50*31.1655060.418.46.3563.5KDAS-70*50*35.1705064.222.46.3568.3KDAS-70*54*26.770546620.53.169KDAS-70*58*28.970586620.54.268.5KDAS-75*55*35.1755569.222.46.3573.3KDAS-75*59*26.775597120.53.174KDAS-80*60*35.1806074.1522.46.3578.3KDAS-80*62*29.780627622.53.679KDAS-80*66*32.980667622.55.278.5KDAS-85*65*35.1856579.1522.46.3583.3KDAS-90*70*35.1907084.1522.46.3588.3KDAS-90*72*29.790728622.53.689KDAS-90*76*32.990768622.55.288.5KDAS-95*75*35.1957589.1522.46.3593.3KDAS-100*075*35.11007593.1522.46.3598KDAS-100*080*37.71008095256.3598KDAS-100*082*29.7100829622.53.699KDAS-100*086*32.9100869622.55.298.5KDAS-105*080*35.11058098.122.46.35103KDAS-110*085*35.111085103.122.46.35108KDAS-110*092*29.71109210622.53.6109KDAS-110*096*32.91109610622.55.2109.4KDAS-115*090*35.111590108.122.46.35113KDAS-115*097*29.71159711122.53.6114KDAS-120*095*35.112095113.122.46.35118KDAS-120*106*32.912010611622.55.2118.5KDAS-125*100*38.1125100118.125.46.35123KDAS-125*103*36.712510312126.55.1124KDAS-125*108*40.912510812126.57.2124.4KDAS-130*105*44.4130105122.625.49.5127.5KDAS-130*105*38.1130105123.125.46.35128KDAS-135*110*44.4135110127.625.49.5132.5KDAS-135*110*38.1135110128.125.46.35133KDAS-140*115*44.4140115132.625.49.5137.5KDAS-140*115*38.114011513325.46.35138KDAS-140*118*36.714011813626.55.1139KDAS-140*123*40.914012313626.57.2138.5KDAS-145*120*44.4145120137.625.49.5142.5KDAS-145*120*38.1145120138.325.46.35142.95KDAS-150*125*44.4150125142.625.49.5147.5KDAS-150*125*38.115012514325.46.35148KDAS-150*128*36.715012814626.55.1149KDAS-150*133*40.915013314626.57.2149.5KDAS-155*130*44.4155130147.625.49.5152.5KDAS-160*130*38.116013015325.46.35157.5KDAS-160*135*44.4160135152.625.49.5157.5KDAS-160*138*36.716013815626.55.1159KDAS-160*143*40.916014315626.57.2159.4KDAS-165*140*44.4165140157.625.49.5162.5KDAS-170*145*50.8170145161.725.412.7167.1KDAS-175*150*50.8175150166.725.412.7172.1KDAS-180*150*48.1180150172.9535.46.35177.87KDAS-180*155*50.8180155171.725.412.7177.1KDAS-185*160*50.8185160176.725.412.7182.1KDAS-190*165*50.8190165181.725.412.7187KDAS-195*170*50.8195170186.725.412.7192KDAS-200*170*48.120017019335.46.35198KDAS-200*175*44.720017519631.56.6199KDAS-200*175*50.8200175191.625.412.7197KDAS-210*185*50.8210185201.625.412.7207KDAS-220*190*48.1220190212.735.46.35217KDAS-220*195*50.8220195211.625.412.7217.9KDAS-230*205*50.8230205221.625.412.7227KDAS-240*215*50.8240215231.625.412.7237KDAS-250*220*48.1250220242.935.46.35247.85KDAS-250*225*50.8250225241.625.412.7247KDAS-260*235*60.5260235252.935.112.7257KDAS-275*250*48.327525027135.16.6274KDAS-280*250*54.44280250272.935.49.52277KDAS-280*250*56.328025027336.310278KDAS-280*255*50.8280255271.625.412.7277KDAS-300*275*44.730027529631.56.6299KDAS-320*290*54.44320290312.435.49.52317KDAS-320*290*61.43202903123612.7317KDAS-320*295*50.8320295311.625.412.7317KDAS-360*335*50.8360335351.625.412.7357KDAS-400*375*50.8400375391.625.412.7397备注：如果您所需型号不在此表格内，请直接联系我们！ |
