| 材质 | PET PI |
|---|---|
| 工艺 | 压延工艺 |
| 规格 | 可定制 |
| 颜色 | 黑色 |
| 用途 | 用于**、电磁屏蔽、电热等产品 |
| 品牌 | HAOUGER |
| 型号 | JH6000 |
| 加工定制 | 是 |
| 包装层次 | 内层包装、外层包装 |

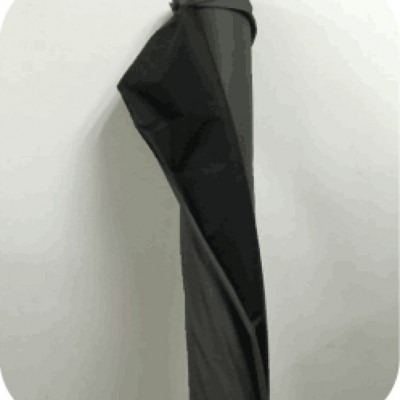

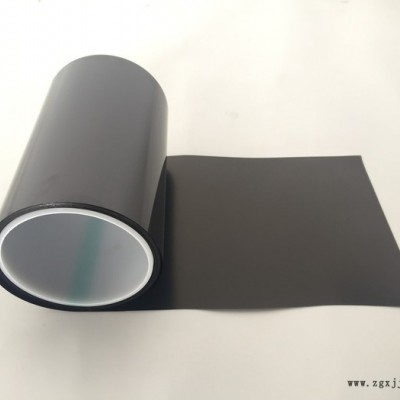

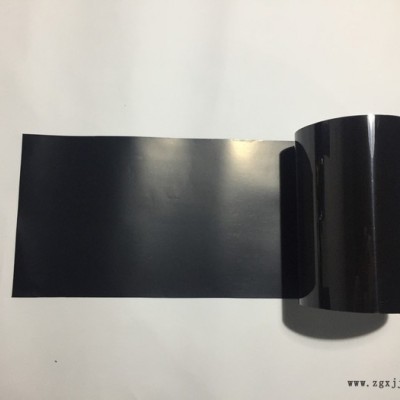

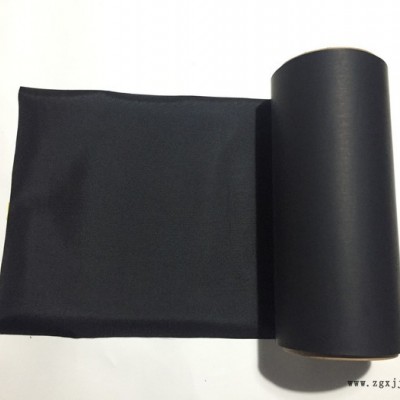

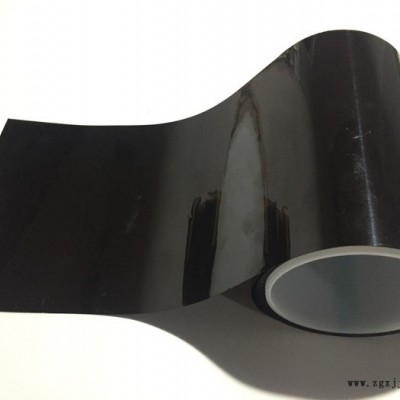

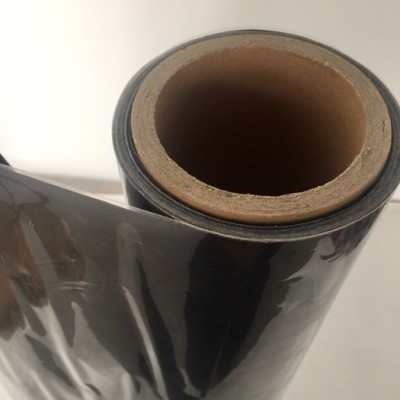

>>>单面导通碳膜系列产品选用纳米级超导碳黑、碳纳米管及石墨烯为原料，采用特殊压合工艺成膜后再与基材进行贴合。以上工艺所制成的复合碳膜，面阻均匀稳定，材质整体均一耐弯折，通过后期客户的封装工艺，可以实现耐酸、耐油、耐热、耐寒、阻燃及抗氧化，使用寿命可达20年以上。不导电面具有良好的印刷性能，可根据需要印刷各种标示图案，满足个性化的LOGO需求。
>>> The series of single-side conductive carbon films are made of nano-superconducting carbon black, carbon nanotubes and graphene, and then bonded to the substrate by a special pressing process. The composite carbon film prepared by the above process has uniform and stable surface resistance and uniformly bending-resistant material as a whole. Through the packaging process of the later customers, the composite carbon film can be acid-resistant, oil-resistant, heat-resistant, cold-resistant, flame-retardant and oxidation-resistant, and has a service life of more than 20 years. Non-conductive surface has good printing performance, can print a variety of logo patterns according to needs, to meet the personalized LOGO requirements.
应用于**、电磁屏蔽、电热等产品。
Used in physiotherapy electrodes, electromagnetic shielding, electric heating and other products.
主要技术参数如下：
The main technical parameters are as follows:
●常规方阻General square resistance：10~100,000Ω/□
●厚度Thickness：20~400μm
●宽度Width：5~1500mm
●长度不限Unlimited length
●常规使用温度Conventional service temperature：-20~160℃
●极端耐温性Extreme temperature resistance：-40~220℃
