| 材质 | PP薄膜 |
|---|---|
| 产地 | 安徽 |
| 厚度 | 2.4um |
| 生产工艺 | 双向拉伸 |
| 透气性 | 无 |
| 颜色 | 透明 |
| 宽度 | 620 |
| 拉伸性能 | 优 |
| 品牌 | 铜峰、嘉德利、创天 |
| 型号 | 6014H |
| 加工定制 | 是 |

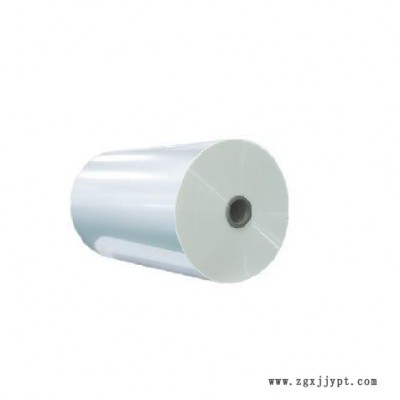

MPP 型电容器用双向拉伸聚丙烯薄膜
BOPP film for capacitor type MPP
1、 特点 Characteristic
采用进口超高纯度电工级均聚聚丙烯树脂，经平膜法双向拉伸而成。具有厚薄均匀性好，机械强度高，电气性能优异的特点，卷制的电容器介质损耗小，绝缘电阻高。
普通型薄膜，耐温特性值为 70℃；准高温型薄膜，耐温特性值为 85℃；高温型薄膜，耐温特性值为 105℃。
It is stretchedin biaxial orientation by means of flat film method by adopting imported high purity homopolymerized polypropylene resin in electrical. It is characterized by the followings, namely good thickness uniformity, high mechanical strength and excellent electric property. The capatitor made by this film has characteristics of small dissipationfactor and high insulation resistance.
The ordinary film’s characteristic value for heat resistance is 70 ℃; the quasi high temperature type film’s characteristic value for heat resistance is 85 ℃ and high temperature type film’s is 105 ℃.
2、 应用范围 Application
主要用于金属化膜电容器和箔式电容器，如交流电动机电容器、低压并联电力电容器、节能灯具电容器、混合动力汽车用电容器、直流电容器等。
It is mainly used in metallized - film capacitor and foil-film capacitor , such as AC motor capacitor, low-voltage parallel power capacitor, energy-saving lamps capatitor, capatitors for hybdid cars, DC capatitors and etc.
3、薄膜尺寸规格 Size specification for MPP Film
| 规 格 Size | 3D | 4D | 5D | 6D | 7D | 8D | 9D | 10D | 12D | |||
|
厚度 Thickness | 重量法 WMV | μm | 2.8 | 3.8 | 4.8 | 5.8 | 6.8 | 7.8 | 8.8 | 9.8 | 11.8 | |
| 机械法 MMV | μm | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 | 10.0 | 12.0 | ||
| 平均厚度偏差（WMV） Average Thickness Deviation(WMV) |
% |
±2% |
±1% | |||||||||
| 成品膜卷宽度 Width of finished film roll | mm | 500±2, 620±2 或根据客户需求进行分切 500±2,620±2 or cutting according to customers | ||||||||||
| 内径（D0） Inner Diameter (D0) | mm | Φ76.2、Φ152.4 |
示图 Picture | |||||||||
| 外径（D） Outer Diameter (D) | mm | Φ420~Φ600 | ||||||||||
注：特殊规格另行协商
Note: Special specifications will be discussed separately
4、厚度表示方法 Representation method of thickness
薄膜厚度的标称值用薄膜厚度中心值（整数值，如 3、7、10、15…）加尾数（小数点后一位）或其代码表示。本公司 MPP 膜厚度标称值为重量法厚度（WMV）；RPP/RRPP 膜厚度的标称值为机械法厚度（MMV）(十层法)。
The nominal value of the film thickness is indicated by the central value (integer value, such as 3, 7, 10, 15.) of film thickness plus mantissa (one point after decimal point) or its code. Our nominal value for MPP film thickness refers to WMV, the nominal value for RPP/RRPP film thickness refers to MMV( ten layer method ).
| Number | Letter | Number | Letter |
| -0.4 | B | +0.1 | V |
| -0.3 | C | +0.2 | W |
| -0.2 | D | +0.3 | X |
| -0.1 | E | +0.4 | Y |
| 0 | L | +0.5 | Z |
示 例 ：MPP8D 表 示 WMV 厚 度 为 7.8μm；RPP12L 表 示 MMV 厚 度 为 12.0μm Examples:MPP8D represents film thickness in WMV is 7.8μm; RPP12L represents film thickness in MMV is 12.0μm
5、技术特征（典型值） Technical features (typical value)
2μm 超薄膜技术特征
|
项目 Item |
单位 Unit | 典型数值 Typical Values |
测试标准 Testing Standard | ||
| 高温型 2.2μm | 高温型 2.5μm | ||||
| 密度 Density | g/㎝ 3 | 0.910 | GB/T 13542.2-2009/11 | ||
| 拉伸强度 Tensile Strength | 纵向 MD | MPa | 180 | 180 | GB/T 13542.2-2009/11 |
| 横向 TD | MPa | 320 | 320 | GB/T 13542.2-2009/11 | |
| 断裂伸长率 Elongation at break | 纵向 TM | % | 140 | 140 | GB/T 13542.2-2009/11 |
| 横向 TD | % | 55 | 55 | GB/T 13542.2-2009/11 | |
| 弹性模量 Elastic Modulus | 纵向 MD | MPa | 2500 | 2500 | GB/T 13542.2-2009/11 |
| 横向 TD | MPa | 4200 | 4200 | GB/T 13542.2-2009/11 | |
| 热收缩率 Thermal Shrinkage | 纵向 MD | % | 5.0 | 4.5 | GB/T 13542.2-2009/23 |
| 横向 TD | % | 0.3 | 0.3 | ||
|
厚度检测Thickness inspection | 机械法 （100 点） 标准偏差 |
μm |
＜0.05 |
＜0.05 |
GB/T 13542.1－2009 |
| 重量法（16 点）极差 | μm | ＜0.10 | ＜0.10 | GB/T 13542.1－2009 | |
|
介电强度（平均值） BDV(DC) | 平均值（50 点） | V/μm | 380 | 420 |
GB/T 13542.2-2009/18.2.2 |
| 最小值（50 点） | V/μm | 280 | 300 | ||
| 表面粗糙度 Surface Roughness | μm | 0.07 | 0.07 | GB/T 13542.2-2009/8 | |
| 摩擦系数(静/动) Coefficient of Friction (Static/Sliding) | |
1.2/0.9 |
1.1/0.9 |
GB/T 10006-1988 | |
| 相对介电常数 Relative Permittivity | | 2.2 | 2.2 | GB/T 13542.2-2009/17.1 | |
| 体积电阻率 Volume Resistivity | Ω.m | >1015 | >1015 | GB/T 13542.2-2009/16.1 | |
| 介电损耗因素 Dielectric Dissipation Factor | | 2.0×10-4 | 2.0×10-4 | GB/T 13542.2-2009/17.1 | |
6、电弱点 Electrical Weakness Point
| 标称厚度（um） Nominal Thickness | 测试电压（V/um） Testing Voltage | 电弱点数（个/m2）Number of Electrical Weakness Point |
| ＜3 | 300 | ≤2.0 |
| 3 | 350 | ≤2.0 |
| 4 | 400 | ≤1.0 |
| 5 | 400 | ≤0.8 |
| 6 | 400 | ≤0.7 |
| 7 | 400 | ≤0.6 |
| 8 | 400 | ≤0.4 |
| 9 | 400 | ≤0.3 |
| ≥10 | 400 | ≤0.2 |
7、化学特性 Chemical Properties
| 灰分 Ash Content | <30ppm |
| 氯含量 Content | <10ppm |
| 水含量 Water Content | <50ppm |
| | |
| | |
