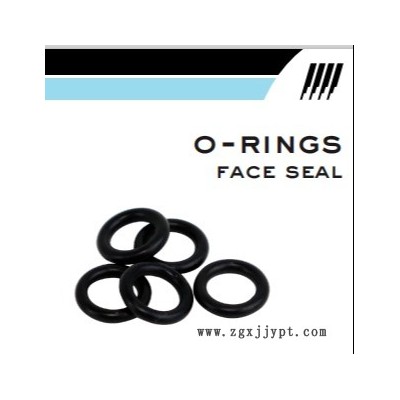

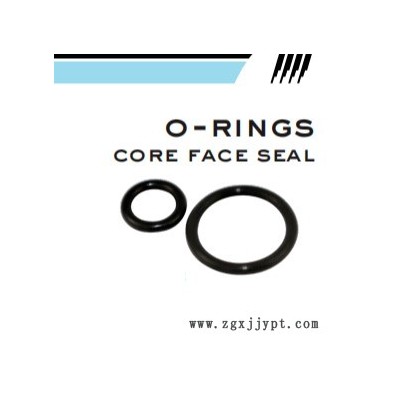

Technical Information:
• Buna-N temperature range is -20° F to 225 °F (-28°C to 107°C)
• Viton® temperature range is -0° F to 400°F (-17°C to 204°C)
Design Guidelines:
•
The Shoulder Groove ID is to be determined by the inner diameter (ID) of the O-Ring and groove width.
• The corresponding Head Groove OD is to be determined by the outer diameter (OD) of the O-Ring and groove width.
To Order:
• Buna-N O-Rings: Specify the prefix “OR” before the dash number. Ex. OR-127 or OR-241.
• Viton O-Rings: Specify the prefix “OR” before the dash number and “-V” as the suffix. Ex. OR-127-V or OR-241-V.
• O-Rings are sold in quantities of 25.
Dash Number |
Cross Section | g Groove Width | l | r |
-024 | .101 | .050 | .005 | |
through | 1/16 | to | to | to |
-047 | .107 | .054 | .015 | |
-121 | .136 | .074 | .005 | |
through | 3/32 | to | to | to |
-157 | .142 | .080 | .015 | |
-214 | .177 | .101 | .005 | |
through | 1/8 | to | to | to |
1/16 cross section 3/32 cross section 1/8 cross section core shoulder head shoulder head shoulder head od dash groove dash groove dash groove dash groove dash groove dash groove number id number od number id number od number id number od | ||||||||||||
1-1/2 | -024 | 1.114 | -031 | 1.879 | -121 | 1.049 | -132 | 1.943 | -214 | 0.984 | -225 | 2.137 |
1-9/16 | -025 | 1.176 | - | - | -122 | 1.112 | -133 | 2.005 | -215 | 1.046 | - | - |
1-5/8 | -026 | 1.239 | -032 | 2.004 | -123 | 1.174 | -134 | 2.068 | -216 | 1.109 | -226 | 2.262 |
1-11/16 | -027 | 1.301 | - | - | -124 | 1.237 | -135 | 2.131 | -217 | 1.171 | - | - |
1-3/4 | -028 | 1.364 | -033 | 2.129 | -125 | 1.299 | -136 | 2.193 | -218 | 1.234 | -227 | 2.387 |
1-13/16 | - | - | - | - | -126 | 1.362 | -137 | 2.256 | -219 | 1.296 | - | - |
1-7/8 | -029 | 1.489 | -034 | 2.254 | -127 | 1.424 | -138 | 2.318 | -220 | 1.359 | -228 | 2.512 |
1-15/16 | - | - | - | - | -128 | 1.487 | -139 | 2.381 | -221 | 1.421 | - | - |
2 | -030 | 1.614 | -035 | 2.379 | -129 | 1.549 | -140 | 2.443 | -222 | 1.484 | -229 | 2.637 |
2-1/16 | - | - | - | - | -130 | 1.612 | -141 | 2.506 | - | - | - | - |
2-1/8 | -031 | 1.739 | -036 | 2.504 | -131 | 1.674 | -142 | 2.568 | -223 | 1.609 | -230 | 2.762 |
2-3/16 | - | - | - | - | -132 | 1.737 | -143 | 2.631 | - | - | - | - |
2-1/4 | -032 | 1.864 | -037 | 2.629 | -133 | 1.799 | -144 | 2.693 | -224 | 1.734 | -231 | 2.887 |
2-5/16 | - | - | - | - | -134 | 1.862 | -145 | 2.756 | - | - | - | - |
2-3/8 | -033 | 1.989 | -038 | 2.754 | -135 | 1.925 | -146 | 2.818 | -225 | 1.859 | -232 | 3.012 |
2-7/16 | - | - | - | -136 | 1.987 | -147 | 2.881 | - | - | - | - | |
2-1/2 | -034 | 2.114 | -039 | 2.879 | -137 | 2.05 | -148 | 2.943 | -226 | 1.984 | -233 | 3.137 |
2-9/16 | - | - | - | - | -138 | 2.112 | -149 | 3.006 | - | - | - | - |
2-5/8 | -035 | 2.239 | -040 | 3.004 | -139 | 2.175 | -150 | 3.068 | -227 | 2.109 | -234 | 3.262 |
2-11/16 | - | - | - | - | -140 | 2.237 | - | - | - | - | - | - |
2-3/4 | -036 | 2.364 | -041 | 3.129 | -141 | 2.3 | -151 | 3.193 | -228 | 2.234 | -235 | 3.387 |
2-13/16 | - | - | - | - | -142 | 2.362 | - | - | - | - | - | - |
2-7/8 | -037 | 2.489 | - | - | -143 | 2.425 | - | - | -229 | 2.359 | -236 | 3.512 |
2-15/16 | - | - | - | - | -144 | 2.487 | - | - | - | - | - | - |
3 | -038 | 2.614 | -042 | 3.379 | -145 | 2.55 | -152 | 3.443 | -230 | 2.484 | -237 | 3.637 |
3-1/16 | - | - | - | - | -146 | 2.612 | - | - | - | - | - | - |
3-1/8 | -039 | 2.739 | - | - | -147 | 2.675 | -153 | 3.63 | -231 | 2.609 | -238 | 3.762 |
3-1/4 | -040 | 2.864 | -043 | 3.629 | -148 | 2.737 | - | - | -232 | 2.734 | -239 | 3.887 |
3-5/16 | - | - | - | - | -149 | 2.8 | - | - | - | - | - | - |
3-3/8 | -041 | 2.989 | -044 | 3.879 | -150 | 2.862 | -154 | 3.943 | -233 | 2.859 | -240 | 4.012 |
3-1/2 | - | - | - | - | -151 | 2.987 | - | - | -234 | 2.984 | -241 | 4.137 |
3-5/8 | -042 | 3.239 | -045 | 4.129 | - | - | -155 | 4.193 | -235 | 3.109 | -242 | 4.262 |
3-3/4 | - | - | - | - | -152 | 3.237 | - | - | -236 | 3.234 | -243 | 4.387 |
3-7/8 | -043 | 3.489 | -046 | 4.379 | - | - | -156 | 4.443 | -237 | 3.359 | -244 | 4.512 |
4 | - | - | -047 | 4.629 | -153 | 3.487 | -157 | 4.693 | -238 | 3.484 | -245 | 4.637 |
