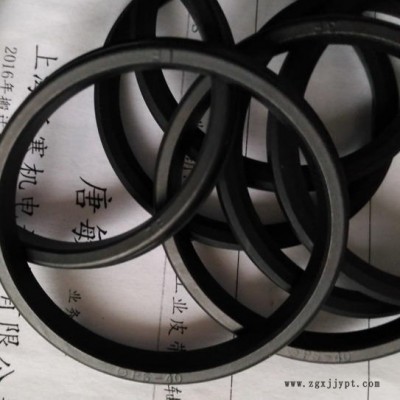

日本sakagami阪上SKY型液压油缸密封圈

日本sakagami阪上SKY型 孔轴通用Y型密封圈

上海泛塞代理阪上密封圈

 常用的液压油缸用密封圈,广泛用于活塞和活塞杆密封

可以安装在整体沟槽内,可通过减少用量和紧凑性来降低成本.

材质:阪上RN906,使用温度-10℃~+80℃.

工作压力:≤25Mpa, 大线速度 1M*2.5s.

适用流体:普通石油系液压油,水-,水-油乳系工作油

主要用途:标准油缸,低压油缸,机械加工机床和工业车辆用油缸.

2016年办公地址昆山花桥镇, 163@:nsknok

型号 规格尺寸(d*D*H)

SKY-0010001N906 10*18*5

SKY-0012001N906 12*20*5

SKY-12.5 12.5*20*5

SKY-14 14*22*5

SKY-16 16*24*5

SKY-0017001N906 17*25*5

SKY-18 18*26*5

SKY-20 20*28*5

SKY-0020001N906 20*30*6

SKY-22 22*30*5

SKY-22.4 22.4*30*5

SKY-23.5 23.5*31.5*5

SKY-0024002N906 24*32*5

SKY-25 25*33*5

SKY-0026001N906 26*34*5

SKY-0027001N906 27*35*5

SKY-28 28*35.5*5

*SKY-28A 28*36*5

SKY-0030001N906 30*38*5

SKY-30 30*40*6

SKY-31.5 31.5*41.5*6

SKY-32 32*42*6

SKY-35 35*45*6

SKY-35.5 35.5*45*6

SKY-35.5A 35.5*45.5*6

SKY-36 36*46*6

SKY-0038001N906 38*48*6

SKY-40 40*50*6

SKY-45 45*55*6

SKY-45A 45*56*7

SKY-50 50*60*6

SKY-53 53*63*6

SKY-55 55*65*6

SKY-56 56*66*6

SKY-0058001N906 58*68*6

SKY-60 60*70*6

SKY-60A 60*71*7

SKY-0061001N906 61*71*6

SKY-63 63*73*6

SKY-65 65*75*6

SKY-67 67*77*6

SKY-70 70*80*6

SKY-71 71*80*6

SKY-75 75*85*6

SKY-80 80*90*6

SKY-0085002N906 85*95*6

SKY-85 85*100*9

*SKY-86 86*100*8.5

SKY-0089001N906 89*104*9

SKY-0090001N906 90*100*6

SKY-90 90*105*9

SKY-95 95*110*9

SKY-0096001N906 96*111*9

SKY-98 98*112*8.5

SKY-100 100*115*9

SKY-0105002N906 105*120*9

SKY-106 106*120*8.6

SKY-0110003N906 110*125*9

SKY-112 112*125*8.5

SKY-112A 112*125*9

SKY-0115002N906 115*130*8.5

SKY-118 118*132*8.5

SKY-0119001N906 119*133*8.5

SKY-0120002N906 120*135*9

SKY-125 125*140*9

SKY-0130001N906 130*145*9

SKY-132 132*145*8.5

SKY-136 136*150*8.5

SKY-140 140*155*9

SKY-145 145*160*9

SKY-150 150*165*9

SKY-155 155*170*9

SKY-160 160*175*9

SKY-165 165*180*9

SKY-0170001N906 170*185*9

SKY-175 175*190*9

SKY-180 180*200*12

SKY-0185001N906 185*205*12

SKY-0190003N906 190*210*12

SKY-0195001N906 195*215*12

SKY-200 200*220*12

SKY-204 204*224*12

SKY-0205002N906 205*225*12

SKY-0210002N906 210*230*12

SKY-0215001N906 215*235*12

SKY-0220001N906 220*240*12

*SKY-224 224*244*12

*SKY-0225001N906 224*245*12

SKY-230 230*250*12

SKY-0235001N906 235*255*12

SKY-0237001N906 237*257*12

SKY-0240001N906 240*260*12

SKY-0245001N906 245*265*12

SKY-250 250*270*12

SKY-260 260*280*14

SKY-280 280*300*14

SKY-0290001N906 290*310*14

SKY-295 295*315*14

SKY-0300003N906 300*320*12

SKY-0310001N906 310*330*12

SKY-315 315*335*14

SKY-335 335*355*14

SKY-355 355*375*14

SKY-380 380*400*14

SKY-400 400*420*14

SKY-430 430*450*14

SKY-450 450*470*14

SKY-480 480*500*14

SKY-0500001N906 500*525*17

SKY-0540001N906 540*560*14

SKY-0550001N906 550*570*13

SKY-0610001N906 610*630*14

SKY-0630001N906 630*655*17

SKY-0660001N906 660*690*18

SKY-0700001N906 700*730*20

SKY-0770001N906 770*800*18

fseals Q-584495835

fseals Q-2426651639

日本sakagami阪上SKY-F型耐高温氟橡胶材质Y型密封圈

日本sakagami阪上SKY-N型耐低温硅橡胶材质Y型密封圈

上海泛塞代理阪上密封圈

氟胶 耐热性 硅胶 耐寒型 规格尺寸(d*D*H)

SKY-14F 14*22*5

SKY-16F 16*24*5

SKY-18F 18*26*5

SKY-20F SKY-20N 20*28*5

SKY-22F 22*30*5

SKY-22.4F 22.4*30*5

SKY-23.5F 23.5*31.5*5

SKY-25F SKY-25N 25*33*5

SKY-28F SKY-28N 28*35.5*5

SKY-30F SKY-30N 30*40*6

SKY-31.5F 31.5*41.5*6

SKY-35F SKY-35N 35*45*6

SKY-35.5F SKY-35.5N 35.5*45*6

SKY-36F 36*46*6

SKY-40F SKY-40N 40*50*6

SKY-45F SKY-45N 45*55*6

SKY-45AF SKY-45AN 45*56*7

SKY-50F SKY-50N 50*60*6

SKY-53F 53*63*6

SKY-55F SKY-55N 55*65*6

SKY-56F 56*66*6

SKY-60F SKY-60N 60*70*6

SKY-60AF 60*71*7

SKY-63F SKY-63N 63*73*6

SKY-65F SKY-65N 65*75*6

SKY-67F 67*77*6

SKY-70F SKY-70N 70*80*6

SKY-71F 71*80*6

SKY-75F SKY-75N 75*85*6

SKY-80F SKY-80N 80*90*6

SKY-85F SKY-85N 85*100*9

SKY-86F 86*100*8.5

SKY-90F SKY-90N 90*105*9

SKY-95F 95*110*9

SKY-98F 98*112*8.5

SKY-100F SKY-100N 100*115*9

SKY-106F SKY-106N 106*120*8.6

SKY-112F 112*125*8.5

SKY-112AF 112*125*9

SKY-0115002N 903 115*130*8.5

SKY-118F SKY-118N 118*132*8.5

SKY-125F SKY-125N 125*140*9

SKY-132F 132*145*8.5

SKY-136F 136*150*8.5

SKY-140F 140*155*9

SKY-145F SKY-145N 145*160*9

SKY-150F 150*165*9

SKY-155F 155*170*9

SKY-160F 160*175*9

SKY-165F 165*180*9

SKY-175F 175*190*9

SKY-180F 180*200*12

SKY-0190003F905 190*210*12

SKY-200F 200*220*12

SKY-204F 204*224*12

SKY-0210002F905 210*230*12

SKY-224F 224*244*12

SKY-230F 230*250*12

SKY-0240001F905 240*260*12

SKY-250F 250*270*12

SKY-260F 260*280*14

SKY-280F 280*300*14

SKY-295F 295*315*14

SKY-380F 380*400*14
