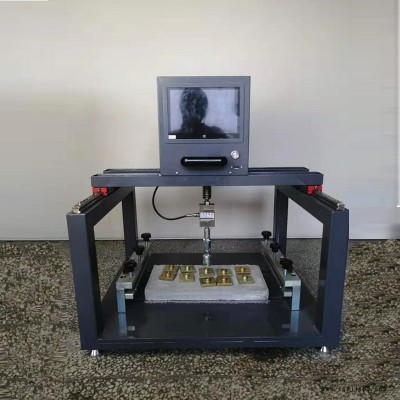

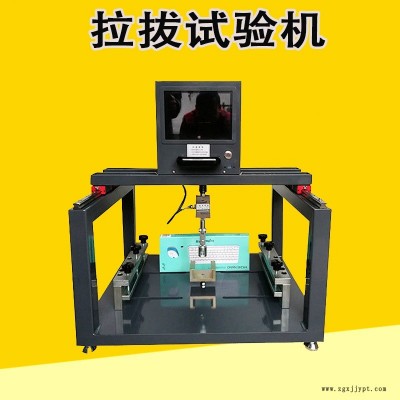

上海 LBY-VI胶粘剂拉拔试验机 砂浆胶粘剂框式拉拔仪 荣计达仪器

产品简介：

适用于干混砂浆、保温材料、陶瓷墙地砖胶粘剂、复层建筑涂料、建筑外墙用腻子的拉伸及粘结强度试验，试验机外观精美、工艺细腻，采用伺服控制系统，可实现匀速加载效率高稳定性好。采用触摸屏控制，友好的人机操作界面。仪器内部设有行程限位和正负力值过载保护功能。具有测试速度可调、负荷测量精度高、操作方便等特点。适用于工厂、建筑工程质量检测站、建筑公司、产品质量检验所、科研院校、道路桥梁现场等，生产检验、开发研究等领域。

Product introduction:

It is suitable for tensile and bond strength test of dry-mixed mortar, thermal insulation materials, ceramic wall and floor tile adhesives, multi-layer architectural coatings, and putty for building exterior walls. The tester has a beautiful appearance and delicate technology. The servo control system is used to achieve uniform loading High efficiency and good stability. Touch screen control, friendly man-machine operation interface. The instrument is equipped with travel limit and positive and negative force value overload protection. It has the characteristics of adjustable test speed, high load measurement accuracy, and convenient operation. Suitable for factories, construction engineering quality inspection stations, construction companies, product quality inspection institutes, scientific research institutions, road and bridge sites, production inspection, development and research fields.

特点：

★嵌入式Windows操作系统环境的测控软件，实时显示测试数据、曲线、试验过程自动控制，试验结束自动求取试验结果，软件简便易用；

★采用多点匀速加载可满足不同标准试验要求。

★ 采用伺服控制系统，**控制检测过程。

★ 采用触摸屏控制，便于人机对话。

★ 试验机内部设有行程限位和正负力值过载保护功能，防止误操作引起试验机的损坏。

★ 采用挂丁式拉拔头。装卸方便快速。

Second, characteristics:

★ Embedded Windows operating system environment measurement and control software, real-time display of test data, curves, automatic control of the test process, test results are automatically obtained after the test, the software is easy to use;

★ Multi-point uniform loading can meet different standard test requirements.

★ Servo control system is adopted to control the detection process.

★ Touch screen control for easy man-machine dialogue.

★ The travel machine has internal travel limit and positive and negative force value overload protection functions to prevent damage to the test machine caused by misoperation.

★ Hanging-type drawing head. Easy loading and unloading.

技术参数：

★大拉拔力：10KN

★有效检测范围：大实验力的1%-

★负荷分辨率：1N

★负荷测量精度：示值的±1%以内

★拉拔速度：1mm-200mm/min

★拉伸范围：150mm

★试件范围：300×500mm

★试件**大厚度：70mm

★驱动方式：伺服电机驱动

★电源：单相交流220V / 50Hz，电机功率200 W

★外形尺寸：700×700×830mm

★重量:115KG

Third, the technical parameters:

★ ** Big drawing force: 10KN

★ Effective detection range: ** 1% of large experimental force-**

★ Load resolution: 1N

★ Load measurement accuracy: within ± 1% of the indicated value

★ Drawing speed: 1mm-200mm / min

★ Stretching range: 150mm

★ Test piece range: 300 × 500mm

★ Test piece Large thickness: 70mm

★ Drive mode: servo motor drive

★ Power supply: single-phase AC 220V / 50Hz, motor power 200 W

★ Dimensions: 700 × 700 × 830mm

★ Weight: 115KG
