奥博环保 PPS除尘滤袋 除尘布袋 PPS dust filter bag

特性：密度 1.38g/cm3，断裂强度 5.0g/d，极限氧指数 34（难燃），是结晶性高性能热塑性工程塑料，具有耐热、耐化学性、阻燃性等特性。过滤性能：可在 170℃的温度下连续使用，瞬时温度可达 200℃（每年累计 400 小时以下）；耐化学性非常好，是抗酸碱性很强的纤维；

PPS滤料具有较强的抗腐蚀功能和很好的尺寸稳定性，在集尘和清灰方面具有优良的性能。

Product information

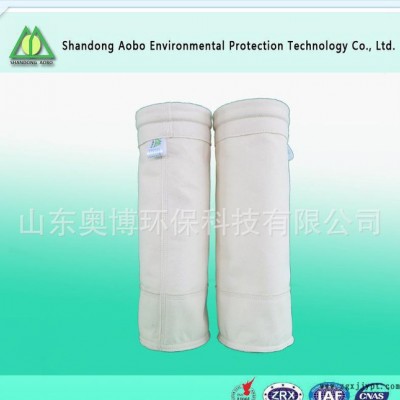

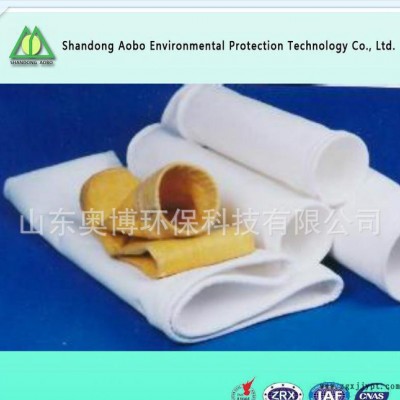

Name: PPS dust filter bag, dust bag

Brand: AOBO

Item no: AOBO - 6

Features: density of 1.38 g/cm3, fracture strength of 5.0 g/d, limiting oxygen index (flame retardant), 34 is crystalline high performance thermoplastic engineering plastic, with heat resistance, chemical resistance and flame retardant properties. Filter performance: can be used under the temperature of 170 ℃ continuous and instantaneous temperature can reach 200 ℃ below (400 hours per year); Is very good chemical resistance, resistance to acid alkali strong fiber;

PPS filter material has stronger corrosion resistance function and good dimensional stability, in dust collection and ash removal with excellent performance.

典型用途是市政废物焚烧炉、公用工程锅炉、烧煤锅炉、医院焚
烧炉、热电联产锅炉上用的脉冲袋滤器。也可用它来取代不耐高温、
不耐腐蚀及易水解的合成纤维

执行标准：
1、环境保护产品技术要求—袋式除尘器滤袋  HJ/T327-2006
2、袋式除尘器技术要求  GB/T6719-2009
3、火电厂大气污染物排放标准 GB13223-2011
4、生活垃圾焚烧大气污染物排放标准DB11502-2008

Execution standard:

1, environmental protection product technical requirements - bag filter filter bag (HJ/T327-2006

2, bag filter technology request of GB/T6719-2009

3, power plant air pollutants emission standards GB13223-2011

4, living garbage incineration air pollutants emission standards DB11502-2008

Typical application is a municipal waste incinerator, utility boiler burning, burning coal boiler, hospital

Burning furnace, cogeneration boiler with pulse bag filter. It can be used to replace not high temperature resistant,

Not resistant to corrosion and easy hydrolysis of synthetic fiber

性能参数：

PPS除尘滤袋介绍：

燃煤锅炉布袋除尘专用滤料（HAT系列PPS 滤料）是山东奥博环保科技有限公

司在承担国家863课题干法脱除燃煤电厂多污染物协同控制技术的基础上，针

对高温烟气除尘开发的纤维针刺毡滤料。具有除尘效率高，烟气阻力低的过滤

特点。该滤料具有过滤精度高、排放低、性能稳定的特点。采用优质日本进口

PPS纤维，经国内先进的成套针刺设备梳理织布，进行高温定型、表面轧光处

理和高浓度PTFE浸渍防腐、防水防油处理后加工成针刺毡滤料。

滤袋纵向、袋口与袋底采用日本重机缝纫设备，用PTFE线进行缝制。滤袋袋口

采用不锈钢弹性涨圈。袋底100mm双层加强。

PPS dust filter bag is introduced:

Coal-fired boiler special cloth bag dust filter material (HAT) series of PPS filter is ordered in shandong environmental protection technology co., LTD in bear country 863 project dry removal from coal-fired power plants more pollutants coordinated control technology on the basis of, in view of the high temperature flue gas dust removal the development of fiber needled felt filter material. With high dust removal efficiency, flue gas filtering characteristics of low resistance. The filter material has high filtration precision, low emissions, the characteristics of stable performance. Is made of high quality imported from Japan PPS fiber, after domestic advanced complete sets of acupuncture equipment carding cloth, high temperature to finalize the design, surface polishing treatment, and high concentration of PTFE impregnated anticorrosive, waterproof and oil processed into needled felt filter material after processing.

Longitudinal, mouth and bag filter bag used Japanese juki sewing equipment, sewing with PTFE. The filter bag mouth is made of stainless steel flexible flange. Bag 100 mm double strengthening.

 奥博是高端复合型人才孵化基地。现有工程技术人员40人，其中高级技术人员16人，中级技术人员8人， 每年委派不少于10人到高校进行培训，并聘请相关专家、教授进行指导，大力提升技术人员的研发能力。通过人才定向培养与交流，打造出一支精干、专业的科研队伍，为公司长期发注入了新的活力。

奥博立足科技创新，致力工业除尘，先后投资3000多万元，建成了2000多平方米的科研中心，成立了山东省袋式除尘唯一工程技术研究中心。公司先后引进数字式透气仪、电子织物强力机、全能型可见光谱分析仪、风动洞过滤效率测试线等研发试验设备30余台（套），总价值1000余万元，在国内同行业处于领先水平。

's high-end talents for incubators. Existing engineering and technical personnel 40 people, including senior technical personnel 16 people, intermediate technical personnel 8 people, appointed each year not less than 10 people to the training of colleges and universities, and invite relevant experts, professors, guide, vigorously promote technical personnel's research and development ability. Through the orientation training and communication, to create a compact, professional r&d team, long hair has injected new vitality to the company.

Ordered based on scientific and technological innovation, is committed to industrial dust removal, has invested more than 3000 ten thousand yuan, has built more than 2000 square meters of scientific research center, set up in shandong province, the only engineering technology research center of bag-type dust collector. Company has introduced digital air meter, electronic fabrics strength machine, universal visible spectrum analyzer, pneumatic hole filter efficiency testing line, such as research and development testing equipment more than 30 Taiwan (sets), the total value of more than 1000 ten thousand yuan, in the same industry in a leading level in China.
