| 材质 | EVA |
|---|---|
| 产地 | 东莞 |
| 耐温 | 105℃ |
| 品牌 | 顺泰 |
| 型号 | 3640.0 |
| 加工定制 | 是 |

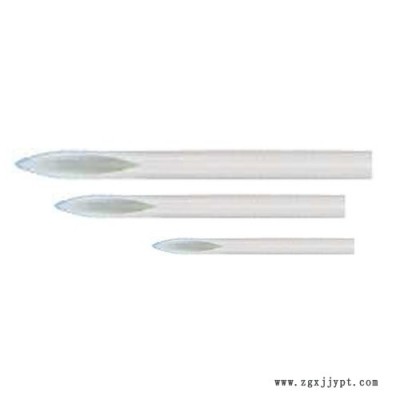

| 聚氯乙烯套管 | ||||||
| PVC Sleeve | ||||||
| 产品描述 | ||||||
| 额定电压Nominal Voltage:300V～600V | ||||||
| 温度范围Temperature Range:-60℃～+105℃ | ||||||
| 试验电压Testing Voltage:2500V/60sec | ||||||
| 燃烧性Flammablity:VW-1 | ||||||
| 拉伸强度(MPa):≥10.4MPa | ||||||
| 断裂伸长率Elongation:100% |  | |||||
| 颜色Colours:任一Any | ||||||
| 适用范围APPLICATION | ||||||
| PVC具有良好的柔软性，机械性，点绝缘性，阻燃性等。PVC套管广泛应用于电器，变压器，电机，灯饰，引出电线，电子元件，线束等的外绝缘保护. | ||||||
| PVC has good flexibility, mechanical, point insulation, flame retardant and so on. PVC sleeve is widely used in electric appliance, transformer, motor, lamp decoration, which leads to outer insulation protection of wires, electronic components, wire harness and so on. | ||||||
| 内径 ID | 公差 Tolerance mm | 外径(OD)&耐压(DC.V) | 包装 Packing | |||
| 壁厚 Thickness mm | 300V | 壁厚 Thickness mm | 600V | 米/卷 Mt/coils | ||
| 0.80 | ±0.1 | 0.25 | 1.30 | 0.40 | 1.60 | 500 |
| 1.00 | ±0.1 | 0.30 | 1.60 | 0.40 | 1.80 | 500 |
| 1.50 | ±0.1 | 0.33 | 2.16 | 0.45 | 2.40 | 400 |
| 2.00 | ±0.2 | 0.33 | 2.66 | 0.50 | 3.00 | 400 |
| 2.50 | ±0.2 | 0.35 | 3.20 | 0.50 | 3.50 | 300 |
| 3.00 | ±0.2 | 0.40 | 3.80 | 0.50 | 4.00 | 300 |
| 3.50 | ±0.2 | 0.40 | 4.30 | 0.50 | 4.50 | 300 |
| 4.00 | ±0.2 | 0.45 | 4.90 | 0.55 | 5.10 | 300 |
| 4.50 | ±0.3 | 0.45 | 5.40 | 0.55 | 5.60 | 300 |
| 5.00 | ±0.3 | 0.45 | 5.90 | 0.55 | 6.10 | 300 |
| 6.00 | ±0.3 | 0.45 | 6.90 | 0.55 | 7.10 | 300 |
| 7.00 | ±0.3 | 0.45 | 7.90 | 0.55 | 8.10 | 150 |
| 8.00 | ±0.35 | 0.45 | 8.90 | 0.55 | 9.10 | 150 |
| 9.00 | ±0.35 | 0.50 | 10.00 | 0.60 | 10.20 | 150 |
| 10.00 | ±0.35 | 0.55 | 11.10 | 0.65 | 11.30 | 150 |
| 11.00 | ±0.40 | 0.55 | 12.10 | 0.65 | 12.30 | 150 |
| 12.00 | ±0.40 | 0.55 | 13.10 | 0.65 | 13.30 | 150 |
| 13.00 | ±0.40 | 0.55 | 14.10 | 0.65 | 14.30 | 150 |
| 14.00 | ±0.40 | 0.55 | 15.10 | 0.65 | 15.30 | 150 |
| 15.00 | ±0.40 | 0.60 | 16.20 | 0.70 | 16.40 | 50 |
| 16.00 | ±0.40 | 0.60 | 17.20 | 0.70 | 17.40 | 50 |
| 17.00 | ±0.40 | 0.60 | 18.20 | 0.70 | 18.40 | 50 |
| 18.00 | ±0.40 | 0.60 | 19.20 | 0.70 | 19.40 | 50 |
| 19.00 | ±0.40 | 0.65 | 20.30 | 0.75 | 20.50 | 50 |
| 20.00 | ±0.50 | 0.65 | 21.30 | 0.75 | 21.50 | 50 |
| 21.00 | ±0.50 | 0.65 | 22.30 | 0.75 | 22.50 | 50 |
| 22.00 | ±0.50 | 0.70 | 23.40 | 0.80 | 23.60 | 50 |
| 23.00 | ±0.50 | 0.70 | 24.40 | 0.80 | 24.60 | 50 |
| 24.00 | ±0.50 | 0.75 | 25.50 | 0.85 | 25.70 | 50 |
| 25.00 | ±0.50 | 0.75 | 26.50 | 0.85 | 26.70 | 50 |
| 26.00 | ±0.50 | 0.85 | 27.70 | 0.85 | 27.70 | 50 |
