| VPN | 支持VPN |
|---|---|
| 品牌 | Cisco/思科 |
| 型号 | ASA5525-IPS-K9 |
CISCO ASA5525-IPS-K9

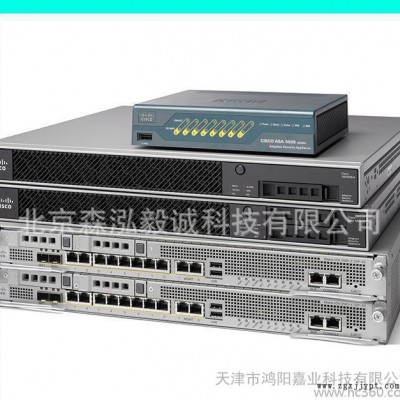

思科Cisco ASA 5525-X IPS Edition (ASA5525-IPS-K9)防火墙
Cisco ASA 5500 series adaptive security appliance fits your network and budget while offering the same proven level of security that protects some of the largest networks at some of the most security-conscious companies in the world. The ASA 5500 series scales to meet the performance and security requirements of a wide range of network applications, to correspond with your changing needs.
The Cisco ASA 5525-X is midrange security appliance that uses the Cisco SecureX framework for a context-aware approach to security that delivers multiple security services, multigigabit performance, flexible interface options, and redundant power supplies. It is built on the same proven security platform as the rest of the ASA family of security appliances, and has been designed to deliver superior performance for exceptional operational efficiency.
Product Details| Device Type | Security appliance |
| Enclosure Type | Rack-mountable - 1U |
| Dimensions (WxDxH) | 42.9 cm x 39.5 cm x 4.24 cm |
| Weight | 6.77 kg |
| RAM Installed ( Max ) | 12 GB |
| Ports Qty | 8 |
| Data link Protocol | Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Performance | Firewall throughput : 2 Gbps VPN throughput (3DES/AES) : 300 Mbps Connection rate : 20000 connections per second Firewall + intrusion prevention throughput : 600 Mbps |
| Capacity | IPSec VPN peers : 750 SSL VPN peers : 2 Concurrent sessions : 500000 Virtual interfaces (VLANs) : 200 Security contexts : 2 |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Manufacturer Warranty | 90 days warranty |
| Device Type | Security appliance |
| Height (Rack Units) | 1U |
| Width | 42.9 cm |
| Depth | 39.5 cm |
| Height | 4.24 cm |
| Weight | 6.77 kg |
| RAM Installed ( Max ) | 12 GB |
| Hard Drive | None. |
| Form Factor | Rack-mountable |
| Ports Qty | 8 |
| Connectivity Technology | Wired |
| Data link Protocol | Gigabit Ethernet |
| Network / Transport Protocol | IPSec |
| Performance | Firewall throughput : 2 Gbps VPN throughput (3DES/AES) : 300 Mbps Connection rate : 20000 connections per second Firewall + intrusion prevention throughput : 600 Mbps |
| Capacity | IPSec VPN peers : 750 SSL VPN peers : 2 Concurrent sessions : 500000 Virtual interfaces (VLANs) : 200 Security contexts : 2 |
| Status Indicators | Power, Boot State, HDD activity, active, alarm, VPN |
| Features | Firewall protection, VPN support, VLAN support, High Availability, Intrusion Prevention System (IPS) |
| Encryption Algorithm | DES, Triple DES, AES |
| Expansion Slot(s) | 1 (total) / 1 (free) x Expansion Slot |
| Interfaces | 8 x network - Ethernet 1000base-T - RJ-45 1 x management - Ethernet 1000base-T - RJ-45 1 x management - console - RJ-45 2 x Hi-Speed USB - 4 PIN USB Type A |
| Rack Mounting Kit | Included |
| Compliant Standards | C-Tick, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, EN55022 Class A, CISPR 22, EMC, EN 60950-1, UL 60950-1 Second Edition, FCC Part 15 B Class A, VCCI V-3, KC, IEC 60950-1 Second Edition, CSA C22.2 No. 60950-1-07 Second Edition |
| Power Device | Power supply - internal |
| Voltage Required | AC 120/230 V ( 50/60 Hz ) |
| Software Included | Cisco VPN Client, Cisco AnyConnect Client |
| Service & Support | 90 days warranty |
| Service & Support Details | Limited warranty - advance parts replacement - 90 days - response time: 10 days |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 90% |
