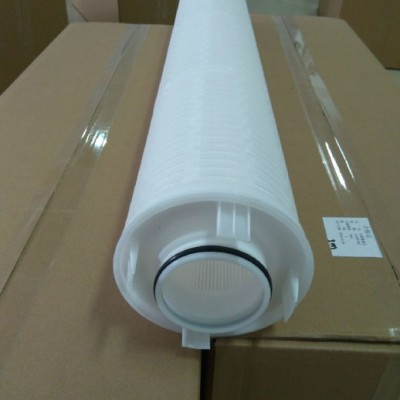

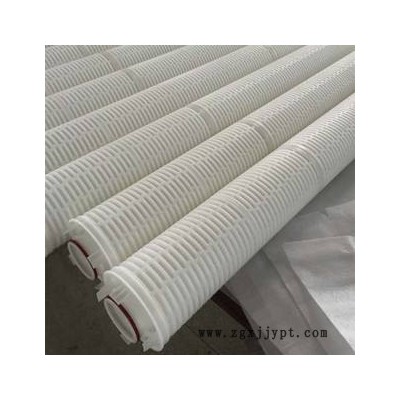

3mHF40PP001A01 大流量滤芯

3mHF40PP001A01 大流量滤芯水滤芯拥有6.5英寸/165毫米的大直径,而且没有中心支撑骨架，一端开口,过滤流体流动方式为由外到内，滤芯的大直径设计加上增大了有效过滤面积可以大大减少滤芯数量和减小外壳尺寸。由于其流量大,过滤寿命长，故被广泛应用各行业领域如：RO保安过滤，海水淡化预处理、电厂冷凝水的过滤、生物制药行业原料药，溶剂，水的过滤、瓶装水，糖液，食用油，果汁，软饮料，牛奶的过滤、油漆，涂料，石油化工、微电子，胶片，纤维，树脂

渐变孔径结构
流量可达60m3/H
过滤系统尺寸可减少50%
可提供40”,60”长度的滤芯
由外到内的流动方向保证所有杂质被截留在滤芯内部

滤芯尺寸
外径：6.5 inch（165mm）
长度： 40inch（1016mm）/ 60inch（1524mm）
部件材质:
滤材：聚丙烯(PP)
支撑/导流层：聚丙烯
端盖：玻璃纤维增强聚丙烯
O型圈密封材质：硅橡胶、氟橡胶、乙丙橡胶、EPR
滤芯性能:
过滤精度:1μm，2μm，5μm，10μm，15μm，25μm，40μm，70μm
操作温度：折叠玻纤:121℃；折叠聚丙烯：82℃；熔喷聚丙烯：65℃
压力降:折叠玻纤:3.4Bar,121℃；折叠聚丙烯:3.4bar,82℃；熔喷聚丙烯:1.03bar,65℃
滤芯更换推荐压力降:2.4bar,20℃

HF40PP001A01, HF40PP001B01, HF40PP001C01, HF40PP001D01, HF40PP002A01, HF40PP002B01, HF40PP002C01,HF40PP002D01, HF40PP005A01, HF40PP005B01, HF40PP005C01, HF40PP005D01, HF40PP010A01, HF40PP010B01,HF40PP010C01, HF40PP010D01, HF40PP015A01, HF40PP015B01, HF40PP015C01, HF40PP015D01, HF40PP025A01,HF40PP025B01, HF40PP025C01, HF40PP025D01, HF40PP040A01, HF40PP040B01, HF40PP040C01, HF40PP040D01,HF40PP070A01, HF40PP070B01, HF40PP070C01, HF40PP070D01, HF60PP001A01, HF60PP001B01, HF60PP001C01,HF60PP001D01, HF60PP002A01, HF60PP002B01, HF60PP002C01, HF60PP002D01, HF60PP005A01, HF60PP005B01,HF60PP005C01, HF60PP005D01, HF60PP010A01, HF60PP010B01, HF60PP010C01, HF60PP010D01, HF60PP015A01,HF60PP015B01, HF60PP015C01, HF60PP015D01, HF60PP025A01, HF60PP025B01, HF60PP025C01, HF60PP025D01,HF60PP040A01, HF60PP040B01, HF60PP040C01, HF60PP040D01, HF60PP070A01, HF60PP070B01, HF60PP070C01,HF60PP070D01, 70-0201-5556-3, 70-0201-5558-9, 70-0201-5560-5, 70-0201-5562-1, 70-0201-5564-7, 70-0201-5566-2, 70-0201-5568-8, 70-0201-5570-4, 70-0201-5572-0, 70-0201-5574-6, 70-0201-5576-1, 70-0201-5578-7, 70-0201-5580-3, 70-0201-5582-9, 70-0201-5584-5, 70-0201-5586-0, 70-0201-5588-6, 70-0201-5590-2, 70-0201-5592-8, 70-0201-5594-4, 70-0201-5596-9, 70-0201-5598-5, 70-0201-5600-9, 70-0201-5602-5, 70-0201-5604-1, 70-0201-5606-6, 70-0201-5608-2, 70-0201-5610-8, 70-0201-5612-4, 70-0201-5614-0, 70-0201-5616-5, 70-0201-5618-1, 70-0201-5620-7, 70-0201-5622-3, 70-0201-5624-9, 70-0201-5626-4, 70-0201-5628-0, 70-201-5630-6, 70-0201-5632-2, 70-0201-5634-8, 70-0201-5636-3, 70-0201-5638-9, 70-0201-5640-5, 70-0201-5642-1, 70-0201-5644-7, 70-0201-5646-2, 70-0201-5648-8, 70-0201-5650-4, 70-0201-5652-0, 70-0201-5654-6, 70-0201-5657-9, 70-0201-5659-5, 70-0201-5661-1, 70-0201-5663-7, 70-0201-5665-2, 70-0201-5667-8, 70-0201-5669-4, 70-0201-5671-0, 70-0201-5673-6, 70-0201-5675-1, 70-0201-5679-3, 70-0201-5681-9, 70-0201-5700-7, 70-0702-5677-4
