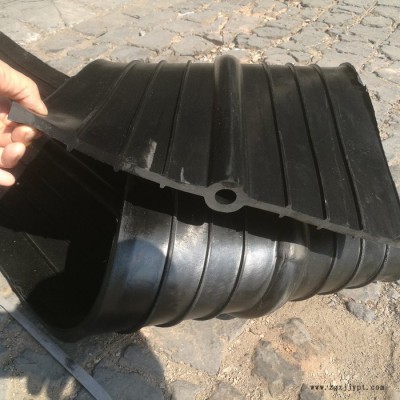

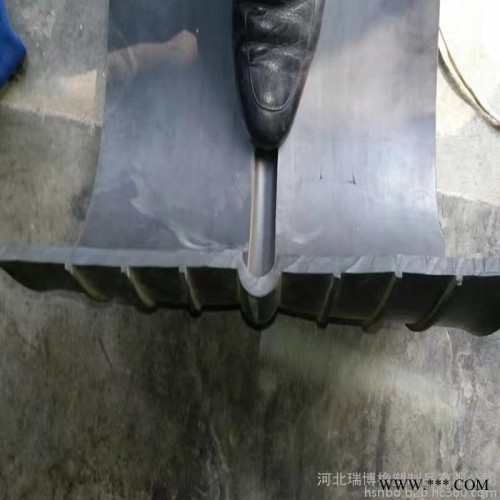

Ω型橡胶止水带 300宽Ω止水带 天然橡胶止水带

咨询电话：131 6657 0872

制作预埋镀锌角钢 →混凝土浇筑→安装橡胶止水条（下垫高分子密封腻脂防水层）→安装镀锌槽钢→安装63×40×4 M16螺栓加固→缝上口安置钢板
Making pre ded galvanized steel angle, pouring concrete, installing rubber water stop bar (lower polymer sealing grease waterproof layer), installing zinc plated channel steel, installing 63 * 40 * 4 M16 bolt reinforcement, and placing steel plate on seam top

结构施工时的橡胶止水带或金属止水环按常规施工，施工过程严格按规范及工艺要求施工确保这一道防水层能**达到止水效果，变形缝两侧预埋L63×6角钢，底板处预埋角钢底边每格50cm开直径30mm圆孔，开孔保证两侧有15mm的边，开孔方便采用小型振动棒插入，保证角钢底部的密实；结构锚栓M16@150，通丝与角钢连接，主体封顶，沉降基本均匀后变形缝缝内进行丙凝注浆，丙凝是由丙烯酰胺、亚甲、过硫酸胺、三乙醇胺等溶液组成，它能在瞬间止水，具有柔韧性、遇水膨胀等特性，在丙凝防水层外加一道高分子密封腻子防水层，此腻子具有零下20度，零上100度不变形与混凝土、橡胶、塑料及各种金属材料紧密粘贴止水密封**外侧加一道可卸式止水带，在预埋角钢面层均匀铺设高分子密封腻脂层，盖上橡胶止水带，压上槽钢，然后对螺栓进行紧固**可以了，缝口均需用钢板封口，避免人为破坏防水层。
The construction of the structure of the rubber sealing belt or metal sealing ring according to the conventional construction, the construction process strictly according to the standards and process requirements to ensure that the construction of the road waterproof layer ** can achieve the sealing effect, deformation on both sides of the joint ded L63 * 6 angle, bottom plate pre buried bottom angle of each grid 50cm 30mm diameter hole, hole guarantee 15mm the two side holes, convenient using small vibration rod insertion, ensure angle at the bottom of the dense structure; anchor bolt M16@150, harness and connection, the main cap, settlement within the acrylamide grouting seam deformation evenly, acrylamide is composed of acrylamide and methylene, ammonium persulfate, triethanolamine solution etc. it can, in an instant sealing, with flexibility, water swellable properties, a polymer layer with a waterproof sealing putty in acrylamide waterproof layer, the putty has 20 degrees, 100 degrees above zero deformation With concrete, rubber, plastic and metal materials integrated with the seal, the lateral and a detachable sealing strip, in the pre buried angle surface evenly distributed fat layer polymer sealing cover, rubber sealing strip, the pressure on the channel, and then the bolt fastening can, the seam is required with steel plate to avoid the destruction of the waterproof layer sealing.
